GCV530 DXA (GJAMM) - Honda Engine, Made in Japan (SN: GJAMM-1000001 - GJAMM-1099999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

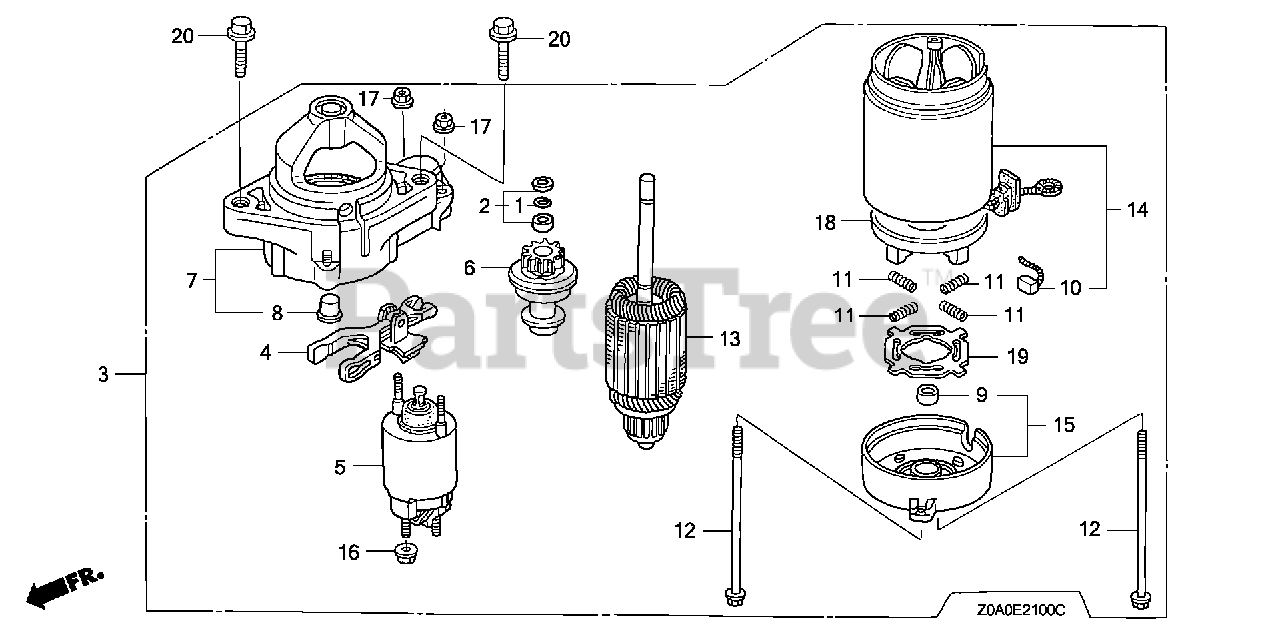

STARTER MOTOR Parts Diagram

  • Title

1

Honda 30201-PH9-004

RING, SNAP (DENSO) (Honda Code 3508322).

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30202-PZ1-003

SEE PART DETAILS - PRI; COLLAR SET, CLUTCH STOP

$23.99

$

Usually ships in 3-6 days

0

3

Honda 31200-Z0A-013

STARTER MOTOR ASSY.

$501.99

$

In Stock, only 1 left!

0

4

Honda 31203-PH9-004

LEVER, PINION DRIVE (Honda Code 4840831).

$44.99

$

Usually ships in 3-6 days

0

5

Honda 31204-ZG4-802

SEE PART DETAILS - PRI; SWITCH ASSY., MAGNETIC

$207.99

$

Usually ships in 3-6 days

0

6

Honda 31207-Z0A-003

CLUTCH, OVERRUNNING

$170.99

$

Usually ships in 3-6 days

0

7

Honda 31208-Z0A-003

HOUSING, DRIVE SIDE

$106.99

$

Usually ships in 3-6 days

0

8

Honda 31209-PH9-004

BEARING A

$11.99

$

Usually ships in 3-6 days

0

9

Honda 31210-PH9-004

BEARING B (Honda Code 3508413).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 31211-PH9-004

BRUSH (Honda Code 3620366).

$21.99

$

Usually ships in 3-6 days

0

11

Honda 31212-PH9-004

SPRING, BRUSH (Honda Code 3508439).

$7.99

$

Usually ships in 3-6 days

0

12

Honda 31214-PH9-004

BOLT, THROUGH (Honda Code 3508454).

$12.99

$

Usually ships in 3-6 days

0

13

Honda 31217-Z0A-003

ARMATURE

$153.99

$

Usually ships in 3-6 days

0

14

Honda 31218-P64-N01

SEE PART DETAILS - PRI; YOKE

$356.99

$

Usually ships in 3-6 days

0

15

Honda 31219-Z0A-003

FRAME, COMMUTATOR END

$26.99

$

Usually ships in 3-6 days

0

16

Honda 31220-PH9-004

NUT, HEX. (8MM) (Honda Code 3508470).

$4.99

$

Usually ships in 3-6 days

0

17

Honda 31223-PA0-006

NUT, FLANGE (5MM) (Honda Code 0839688).

$4.99

$

Usually ships in 3-6 days

0

18

Honda 31231-PH9-004

HOLDER, BRUSH (Honda Code 3508496).

$67.99

$

Usually ships in 3-6 days

0

19

Honda 31233-PH9-004

INSULATOR, BRUSH HOLDER (Honda Code 3508504).

$41.99

$

Usually ships in 3-6 days

0

20

Honda 95701-10040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X40)

$1.99

$

In Stock, only 4 left!

0
