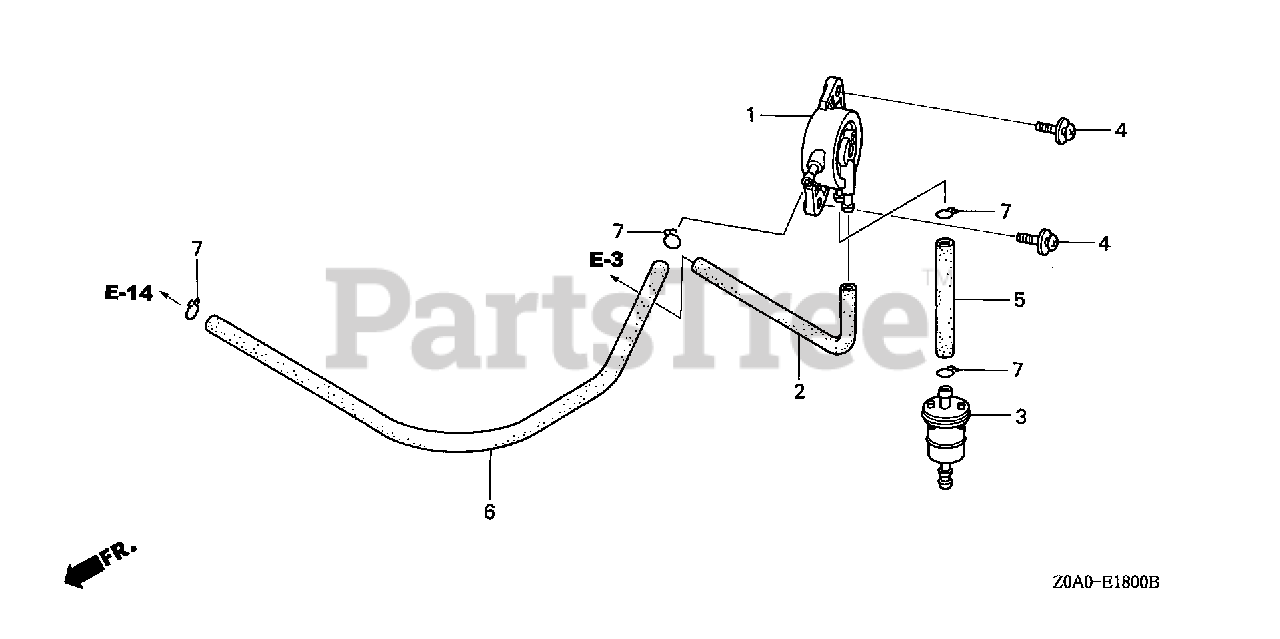

GCV530 DXA (GJAMM) - Honda Engine, Made in Japan (SN: GJAMM-1000001 - GJAMM-1099999) FUEL PUMP Parts Diagram

Engine, Made in Japan

FUEL PUMP Parts Diagram

  • Title
1

Honda 16700-ZL8-003

SEE PART DETAILS - SUP; PUMP ASSY., FUEL (Honda Code 5611298).
(Superseded to 16700-Z0J-003)

$92.99

$

Usually ships in 3-6 days

0

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16882-Z0A-000

TUBE, DIAPHRAGM

$3.49

$

In Stock, only 1 left!

0

3

Honda 16910-ZV4-015

SEE PART DETAILS - PRI; FILTER, FUEL

$18.99

$

Usually ships in 3-6 days

0

4

Honda 93894-05016-00

SEE PART DETAILS - PRI; SCREW-WASHER (5X16)

$1.49

$

In Stock, Qty 8

0

5

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (Honda Code 5338587). (5.5X150)

$70.99

$

In Stock, only 1 left!

0

6

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (Honda Code 5338587). (5.5X150)

$70.99

$

In Stock, only 1 left!

0

7

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.49

$

Usually ships in 3-6 days

0
