GCV520 U SEE4 (GJABK) - Honda Engine, Made in Japan (SN: GJABK-1000001 - GJABK-9999999) FAN COVER Parts Diagram

Engine, Made in Japan

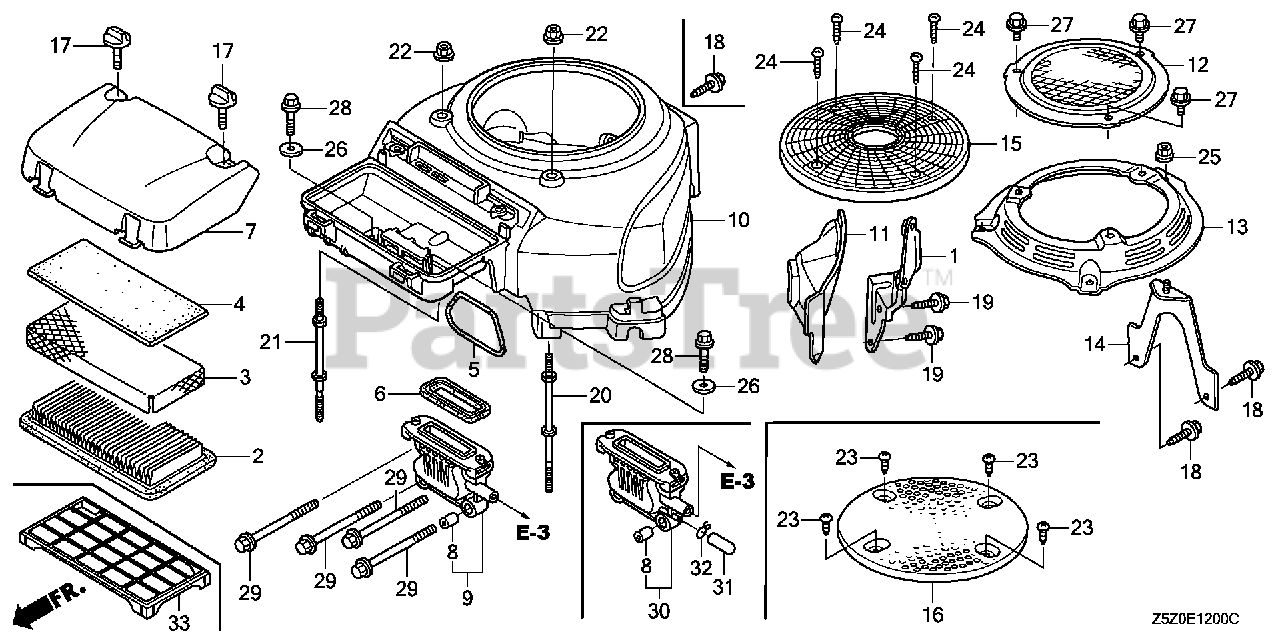

FAN COVER Parts Diagram

  • Title

1

Honda 16711-Z0A-000

STAY, FUEL PUMP

$27.99

$

Usually ships in 3-6 days

0

2

Honda 17211-Z0A-013

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$13.99

$

In Stock, only 3 left!

0

3

Honda 17212-Z0A-000

GRID, AIR CLEANER

$26.99

$

In Stock, only 1 left!

0

4

Honda 17218-Z0A-810

SEE PART DETAILS - PRI; FILTER (OUTER)

$6.99

$

In Stock, Qty 6

0

5

Honda 17228-Z0A-003

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 12

0

6

Honda 17229-Z0A-000

SEAL, AIR CLEANER HOUSING

$5.49

$

Usually ships in 3-6 days

0

7

Honda 17231-Z0A-000

COVER, AIR CLEANER

$28.99

$

Usually ships in 3-6 days

0

8

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER

$2.99

$

In Stock, only 3 left!

0

9

Honda 17410-Z0A-010

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

$20.99

$

Usually ships in 3-6 days

0

10

Honda 19611-Z0A-010ZA

COVER, FAN *NH1* (BLACK)

$56.99

$

In Stock, only 1 left!

0

11

Honda 19612-Z0A-000

PLATE, SIDE

$11.99

$

Usually ships in 3-6 days

0

15

Honda 28452-Z0A-000ZA

GRID, SCREEN (D50) *NH1* (BLACK)

$29.99

$

Usually ships in 3-6 days

0

17

Honda 90004-Z0A-000

BOLT, AIR CLEANER (6MM)

$5.49

$

In Stock, only 2 left!

0

18

Honda 90013-ZL8-000

BOLT, FLANGE (6X14) (CT200)

$1.99

$

In Stock, Qty 5

0

19

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

20

Honda 90044-Z0A-000

BOLT, L. STUD (IGNITION COIL)
(Superseded to 90044-Z0A-010)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 90045-Z0A-000

BOLT, R. STUD (IGNITION COIL)
(Superseded to 90045-Z0A-010)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 90201-ZM0-000

NUT, FLANGE (6MM)

$2.99

$

In Stock, Qty 20+

0

24

Honda 93913-24780

SCREW, TAPPING (4X30) (PO)

$0.99

$

In Stock, Qty 10

0

26

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

28

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95801-06100-00

BOLT, FLANGE (6X100)

$2.49

$

Usually ships in 3-6 days

0
