GCV520 U QEA1 (GJABK) - Honda Engine, Made in Japan (SN: GJABK-1000001 - GJABK-9999999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

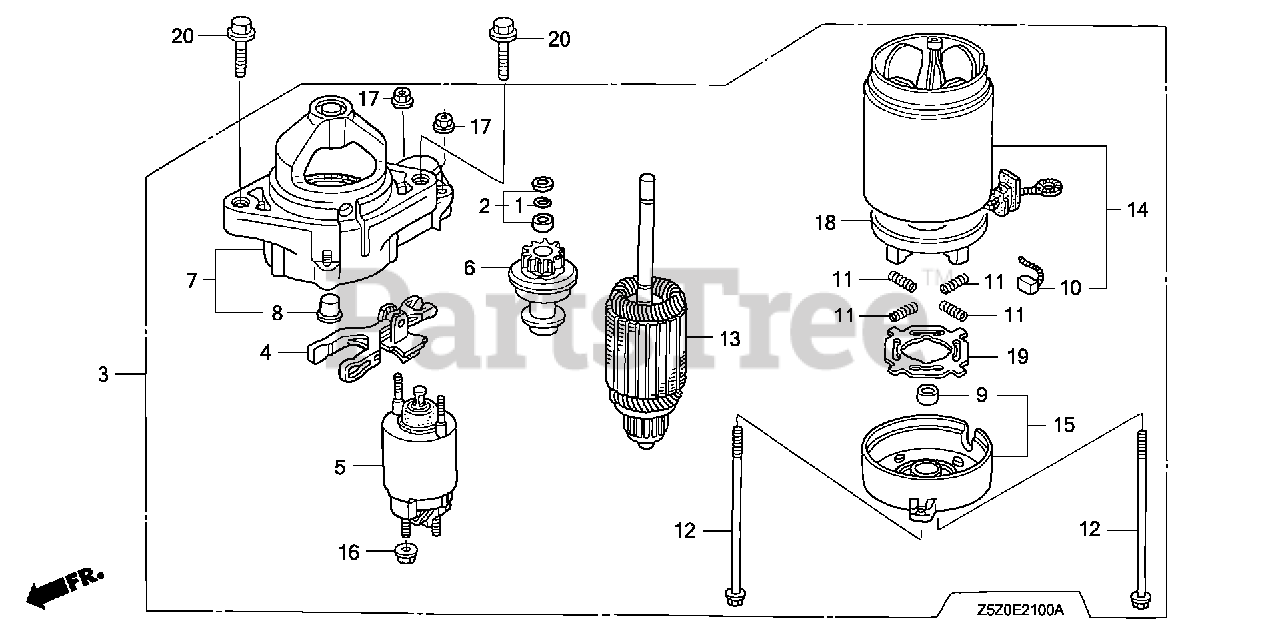

STARTER MOTOR Parts Diagram

  • Title

1

Honda 30201-PH9-004

RING, SNAP (DENSO)

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30202-PZ1-003

COLLAR SET, CLUTCH STOP

$23.99

$

Usually ships in 3-6 days

0

3

Honda 31200-Z0A-013

STARTER MOTOR ASSY.

$547.99

$

In Stock, only 1 left!

0

4

Honda 31203-PH9-004

LEVER, PINION DRIVE

$44.99

$

Usually ships in 3-6 days

0

5

Honda 31204-ZG4-802

SWITCH ASSY., MAGNET

$222.99

$

Usually ships in 3-6 days

0

6

Honda 31207-Z0A-003

CLUTCH, OVERRUNNING

$186.99

$

Usually ships in 3-6 days

0

7

Honda 31208-Z0A-003

HOUSING, DRIVE SIDE

$116.99

$

Usually ships in 3-6 days

0

8

Honda 31209-PH9-004

BEARING A

$11.99

$

Usually ships in 3-6 days

0

9

Honda 31210-PH9-004

BEARING B

$14.99

$

Usually ships in 3-6 days

0

10

Honda 31211-PH9-004

BRUSH

$21.99

$

Usually ships in 3-6 days

0

11

Honda 31212-PH9-004

SPRING, BRUSH

$7.99

$

Usually ships in 3-6 days

0

12

Honda 31214-PH9-004

BOLT, THROUGH

$12.99

$

Usually ships in 3-6 days

0

13

Honda 31217-Z0A-003

ARMATURE

$159.99

$

Usually ships in 3-6 days

0

14

Honda 31218-P64-N01

YOKE

$356.99

$

Usually ships in 3-6 days

0

15

Honda 31219-Z0A-003

FRAME, COMMUTATOR END

$29.99

$

Usually ships in 3-6 days

0

16

Honda 31220-PH9-004

NUT, HEX. (8MM)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 31223-PA0-006

NUT, HEX.

$4.99

$

Usually ships in 3-6 days

0

18

Honda 31231-PH9-004

HOLDER, BRUSH

$67.99

$

Usually ships in 3-6 days

0

19

Honda 31233-PH9-004

INSULATOR, BRUSH HOLDER

$41.99

$

Usually ships in 3-6 days

0

20

Honda 95701-10040-00

BOLT, FLANGE (10X40)

$1.99

$

In Stock, only 4 left!

0
