GCV200 LA G5BR (GJAVA) - Honda Engine, Made in USA (SN: GJAVA-1000001 - GJAVA-9999999) CRANKCASE Parts Diagram

Engine, Made in USA

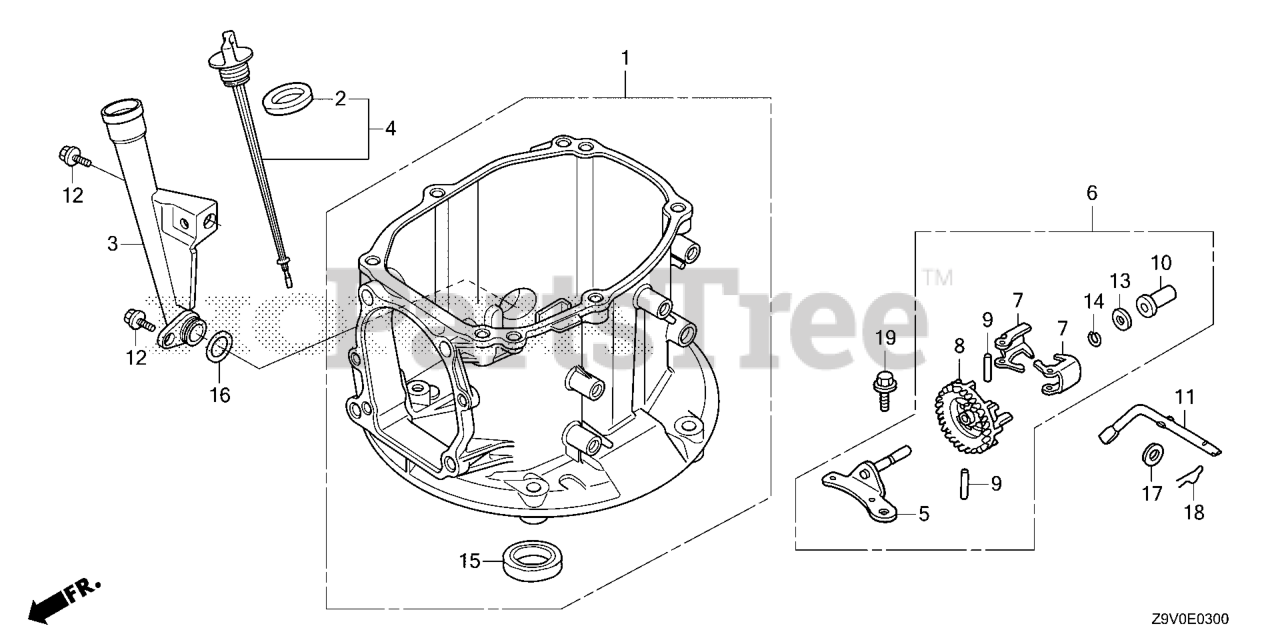

CRANKCASE Parts Diagram

  • Title

1

Honda 11100-Z9L-010

CRANKCASE ASSY.

$175.99

$

Usually ships in 3-6 days

0

1

Honda 11100-Z9L-415

CRANKCASE ASSY.

$188.99

$

In Stock, only 1 left!

0

2

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP Use up to Engine SN 1257294.

$4.99

$

In Stock, only 1 left!

0

3

Honda 15631-Z9L-000

EXTENSION, OIL FILLER

$22.99

$

In Stock, only 1 left!

0

4

Honda 15650-Z9L-000

GAUGE ASSY., OIL LEVEL

$19.99

$

In Stock, only 1 left!

0

5

Honda 16508-ZM0-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER (Honda Code 6384341).

$7.49

$

Usually ships in 3-6 days

0

6

Honda 16510-ZM0-010

SEE PART DETAILS - PRI; GOVERNOR ASSY. (Honda Code 6384333).

$22.99

$

In Stock, only 2 left!

0

7

Honda 16511-ZL8-000

WEIGHT, GOVERNOR (Honda Code 5580287).

$1.99

$

In Stock, only 4 left!

0

8

Honda 16512-ZM0-000

HOLDER, GOVERNOR WEIGHT (Honda Code 5580295).

$13.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 6

0

11

Honda 16541-Z9L-000

SHAFT, GOVERNOR ARM

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90013-ZL8-000

BOLT, FLANGE (6X14) (CT200)

$1.99

$

In Stock, Qty 5

0

13

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90451-Z1T-000

WASHER, THRUST (6MM)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

Usually ships in 3-6 days

0

15

Honda 91202-Z9L-003

OIL SEAL (28X41.25X6)

$8.99

$

Usually ships in 3-6 days

0

15

Honda 91202-Z9R-003

OIL SEAL

$6.49

$

In Stock, Qty 6

0

16

Honda 91301-Z9L-000

O-RING (19.1X2.2)

$1.99

$

In Stock, only 4 left!

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 6

0

19

Honda 95701-06014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2374742).

$2.49

$

In Stock, Qty 9

0
