GCV190 LA SBA (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-1607129 - GJAAA-9999999) CONTROL (2) Parts Diagram

Engine, Made in USA

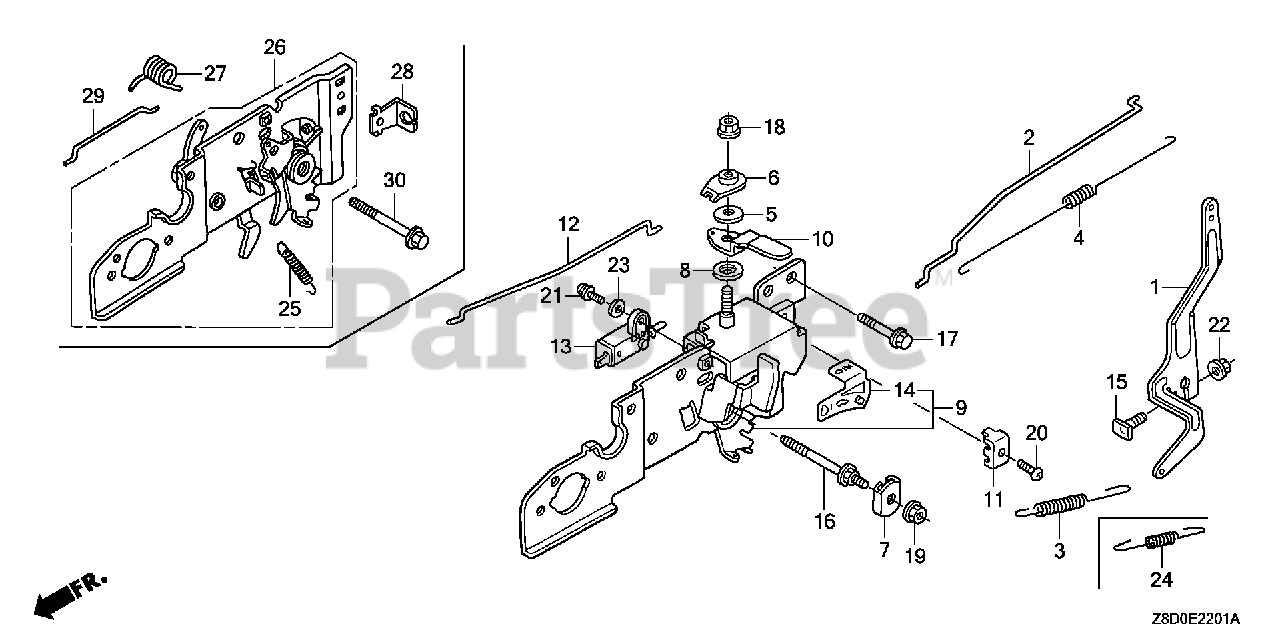

CONTROL (2) Parts Diagram

  • Title

1

Honda 16551-ZM0-010

ARM, GOVERNOR

$7.49

$

In Stock, only 1 left!

0

2

Honda 16555-Z0L-801

SEE PART DETAILS - PRI; ROD, GOVERNOR

$0.99

$

In Stock, only 2 left!

0

4

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

$3.49

$

In Stock, Qty 9

0

13

Honda 35120-Z1L-J21

SWITCH ASSY., ENGINE STOP (N.O)

$18.99

$

In Stock, only 1 left!

0

15

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

20

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

21

Honda 93892-04012-00

SCREW-WASHER (4X12)

$0.99

$

In Stock, Qty 8

0

22

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94103-04000

WASHER, PLAIN (4MM)

$0.99

$

In Stock, Qty 7

0

24

Honda 16561-Z0L-000

SPRING, GOVERNOR

$1.99

$

In Stock, Qty 6

0

25

Honda 16576-ZE7-300

SPRING, LEVER

$4.99

$

In Stock, only 1 left!

0

26

Honda 16580-Z0L-J20

BASE, CONTROL

$76.99

$

Usually ships in 3-6 days

0

27

Honda 16593-Z0L-000

SPRING, CONTROL LEVER RETURN

$27.99

$

Usually ships in 3-6 days

0

28

Honda 16617-Z0L-800

HOLDER, CABLE

$1.99

$

Usually ships in 3-6 days

0

29

Honda 16674-ZM0-000

ROD, CHOKE

$2.49

$

In Stock, only 1 left!

0

30

Honda 90014-888-000

BOLT, FLANGE (6X50)

$5.49

$

Usually ships in 3-6 days

0
