GCV190 LA S3C (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-1607129 - GJAAA-8599999) FUEL TANK Parts Diagram

Engine, Made in USA

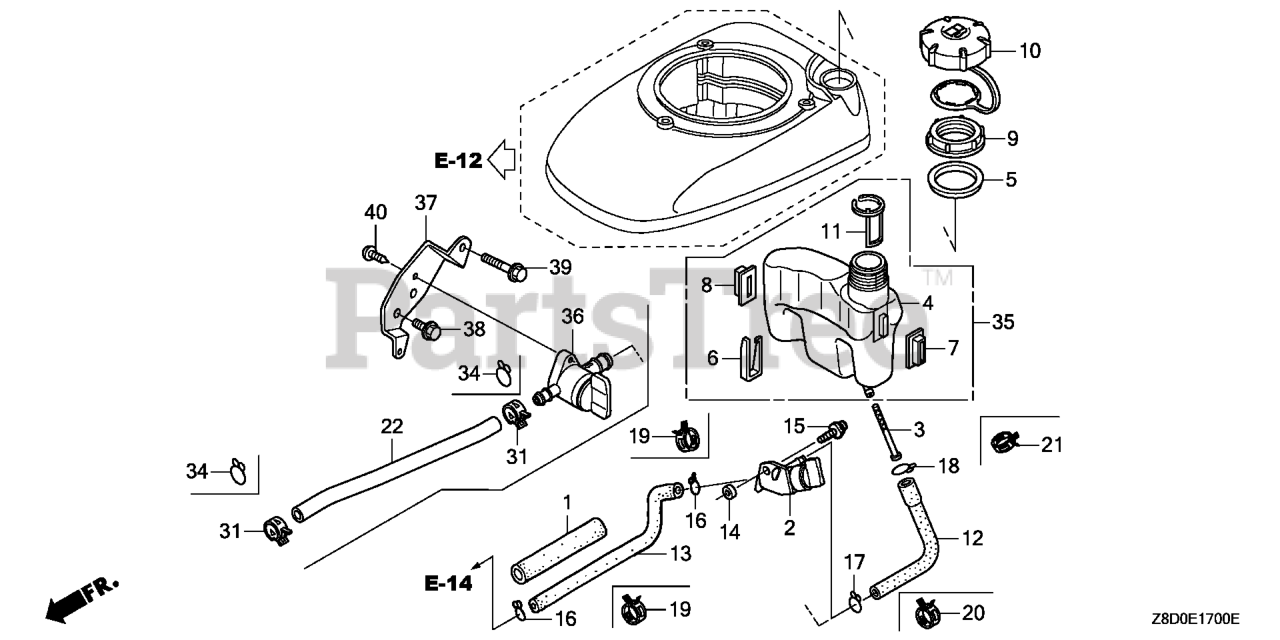

FUEL TANK Parts Diagram

  • Title

3

Honda 16952-Z8B-000

FILTER, FUEL

$28.99

$

In Stock, Qty 6

0

4

Honda 17511-Z8B-800

TANK, FUEL
(Superseded to 17511-Z8B-801)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 17511-Z8B-801

TANK, FUEL

$24.99

$

Usually ships in 3-6 days

0

5

Honda 17514-Z0L-000

SEAL, FUEL FILLER NECK

$0.99

$

In Stock, Qty 10

0

6

Honda 17516-Z0L-000

CLIP, TANK MOUNTING

$0.99

$

In Stock, only 4 left!

0

7

Honda 17532-Z8B-800

RUBBER A, TANK MOUNTING

$15.99

$

Usually ships in 3-6 days

0

8

Honda 17533-Z8B-800

RUBBER B, TANK MOUNTING

$1.49

$

Usually ships in 3-6 days

0

9

Honda 17534-Z0L-000

NUT, TANK MOUNTING

$0.99

$

In Stock, Qty 10

0

10

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, only 3 left!

0

11

Honda 17636-Z0L-010

GAUGE, FUEL LEVEL

$0.99

$

In Stock, only 1 left!

0

12

Honda 17700-Z8B-900

TUBE, FUEL (7.3X160)

$11.99

$

In Stock, only 1 left!

0

17

Honda 95002-02130

CLIP, TUBE (B12.5) (Honda Code 0323352).

$1.49

$

In Stock, Qty 5

0

18

Honda 95002-02130

CLIP, TUBE (B12.5) (Honda Code 0323352).

$1.49

$

In Stock, Qty 5

0

22

Honda 16840-Z8B-900

TUBE, FUEL (4.5X110)

$2.99

$

In Stock, only 3 left!

0

34

Honda 95002-50000

SEE PART DETAILS - PRI; CLIP, TUBE (C9) (Honda Code 0053447).

$1.99

$

In Stock, only 2 left!

0

35

Honda 06175-Z8B-800

TANK KIT, FUEL

Note: (Optional).

$74.99

$

Usually ships in 3-6 days

0

36

Honda 16950-Z0Y-003

PETCOCK ASSY.

$4.99

$

In Stock, only 4 left!

0

37

Honda 16961-Z0L-900

STAY, PETCOCK

$8.99

$

Usually ships in 3-6 days

0

38

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

39

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, only 3 left!

0

40

Honda 93913-25220

SCREW, TAPPING (5X12) (PO)

$0.99

$

In Stock, Qty 8

0
