GCV190 LA S3C/A (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-8600001 - GJAAA-9999999) OIL PAN Parts Diagram

Engine, Made in USA

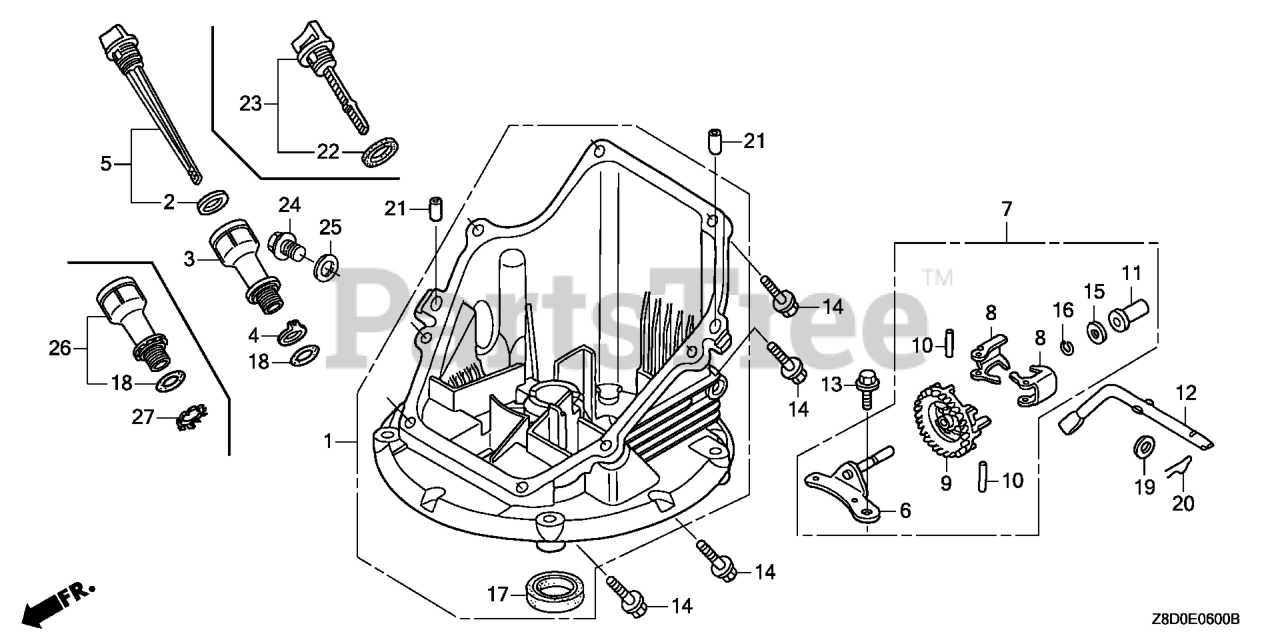

OIL PAN Parts Diagram

  • Title

1

Honda 11300-ZM0-811

SEE PART DETAILS - PRI; PAN ASSY., OIL (Honda Code 6771489).

$64.99

$

Usually ships in 3-6 days

0

2

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP Use up to Engine SN 1257294.

$4.99

$

In Stock, only 1 left!

0

5

Honda 15650-ZM0-801

SEE PART DETAILS - PRI; DIPSTICK, OIL (Honda Code 5716915).

$7.99

$

In Stock, only 3 left!

0

6

Honda 16508-ZM0-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER (Honda Code 6384341).

$7.49

$

Usually ships in 3-6 days

0

7

Honda 16510-Z8B-000

GOVERNOR ASSY.
(Superseded to 16510-Z8B-010)

$6.49

$

In Stock, only 2 left!

0

8

Honda 16511-ZL8-000

WEIGHT, GOVERNOR (Honda Code 5580287).

$1.99

$

In Stock, only 4 left!

0

9

Honda 16512-ZM0-000

HOLDER, GOVERNOR WEIGHT (Honda Code 5580295).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

12

Honda 16541-Z8B-000

SHAFT, GOVERNOR ARM

$1.49

$

In Stock, Qty 7

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

14

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

15

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

16

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

17

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6) (Honda Code 5581046).

$7.49

$

In Stock, Qty 16

0

18

Honda 91303-KF0-003

O-RING (14.8X2.4) (ARAI)

$2.49

$

In Stock, only 3 left!

0

19

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

20

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

21

Honda 90701-Z8B-000

PIN, DOWEL (8X20)

$0.99

$

In Stock, Qty 8

0

26

Honda 15630-Z8D-000

EXTENSION, OIL FILLER

$2.49

$

Usually ships in 3-6 days

0

27

Honda 15639-Z8D-000

WASHER, EXTENSION LOCK

$0.99

$

Usually ships in 3-6 days

0
