GCV190 LA S3A (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-1607129 - GJAAA-9999999) CONTROL (1) Parts Diagram

Engine, Made in USA

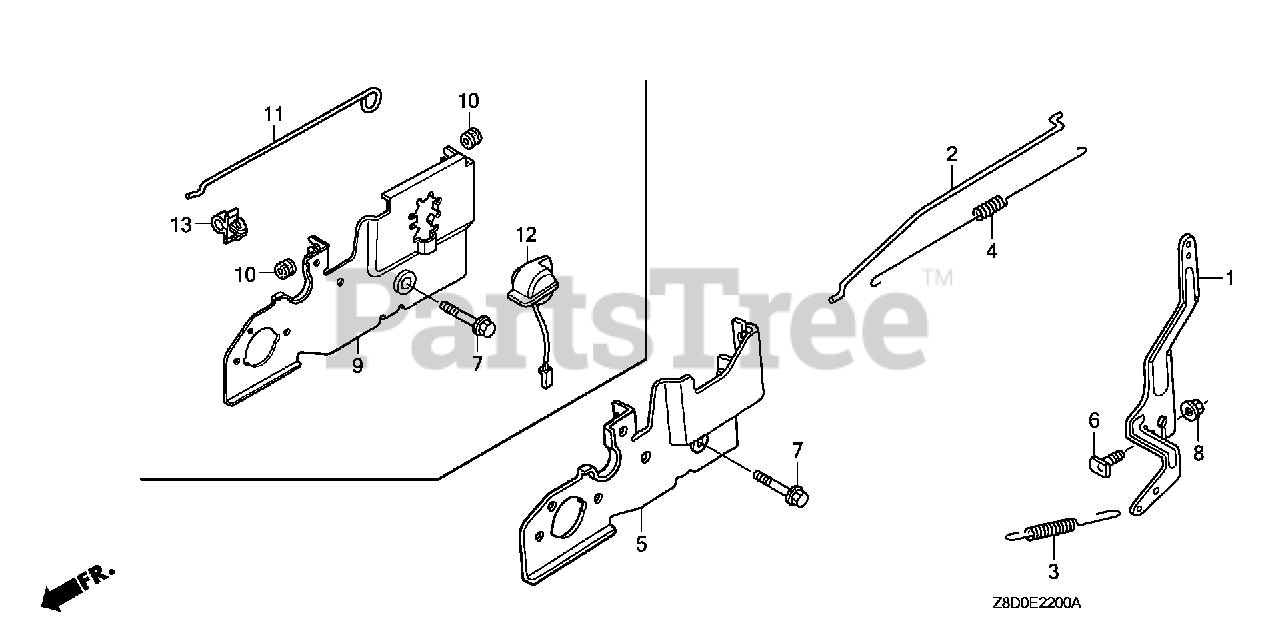

CONTROL (1) Parts Diagram

  • Title

1

Honda 16551-ZM0-010

ARM, GOVERNOR

Note: Use up to Engine SN 2348724.

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16555-Z0L-801

SEE PART DETAILS - PRI; ROD, GOVERNOR

Note: Use up to Engine SN 2348724.

$0.99

$

In Stock, only 2 left!

0

3

Honda 16561-ZM0-V30

SPRING, GOVERNOR

Note: Use up to Engine SN 2244453.

$3.99

$

In Stock, Qty 10

0

3

Honda 16561-ZM0-V30

SPRING, GOVERNOR

$3.99

$

In Stock, Qty 10

0

3

Honda 16561-Z8B-V30

SPRING, GOVERNOR

Note: Use from Engine SN 2244454 to 2348724.

$1.49

$

In Stock, Qty 6

0

4

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

Note: Use up to Engine SN 2348724.

$3.49

$

In Stock, Qty 8

0

6

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use up to Engine SN 2348724.

$3.49

$

In Stock, only 3 left!

0

7

Honda 90016-ZE8-000

BOLT, FLANGE (6X45) (CT200)

Note: Use up to Engine SN 2348724.

$2.99

$

In Stock, only 2 left!

0

8

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: Use up to Engine SN 2448724.

$0.99

$

In Stock, Qty 20+

0

9

Honda 16580-Z0L-800

BASE, CONTROL

Note: Use up to Engine SN 2348724.

$7.99

$

Usually ships in 3-6 days

0

10

Honda 16613-893-000

GROMMET, CHOKE ROD

Note: Use up to Engine SN 2348724.

$3.99

$

In Stock, only 2 left!

0

11

Honda 16674-Z0L-800

ROD, CHOKE

Note: Use up to Engine SN 2348724.

$1.99

$

In Stock, Qty 11

0

12

Honda 35120-Z0L-901

SWITCH ASSY., ENGINE STOP

Note: Use up to Engine SN 2348724.

$6.99

$

In Stock, only 1 left!

0

13

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

Note: Use up to Engine SN 2348724.

$8.49

$

In Stock, only 1 left!

0

13

Honda 90681-959-003

CLIP A, CABLE (3.8MM BLACK) (NIFCO)

Note: Use up to Engine SN 2348724.

$3.99

$

Usually ships in 3-6 days

0
