GCV190 LA S3A (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-1607129 - GJAAA-9999999) CARBURETOR Parts Diagram

Engine, Made in USA

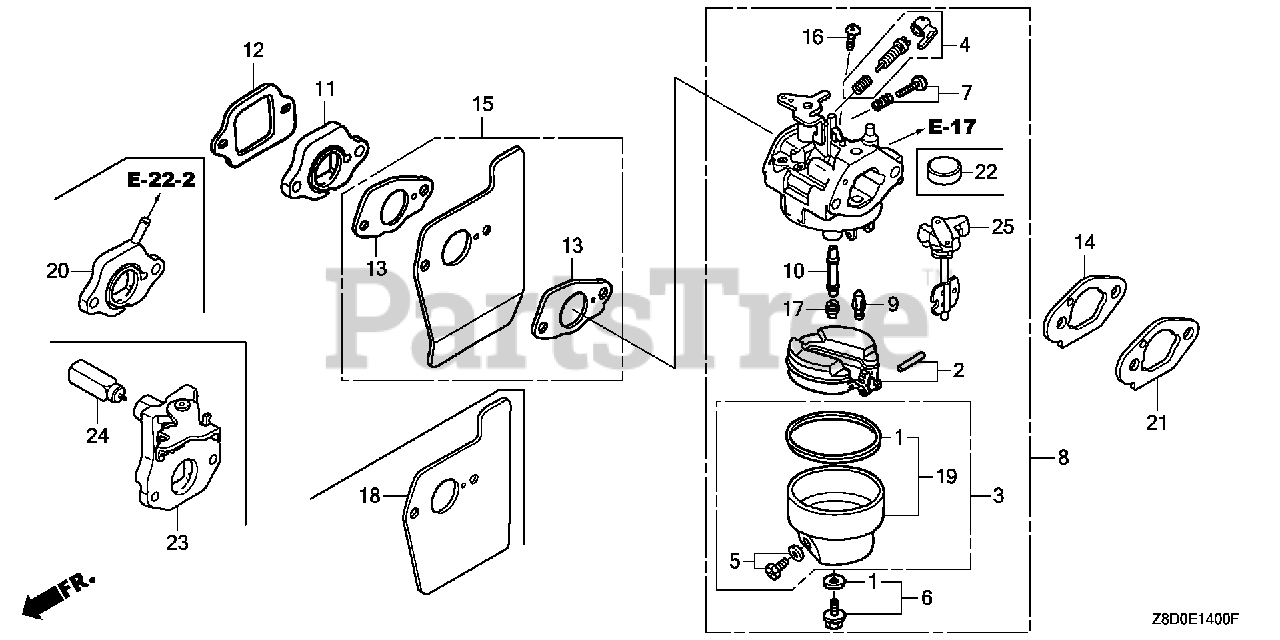

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

$12.99

$

In Stock, Qty 15

0

2

Honda 16013-ZL1-003

FLOAT SET

$31.99

$

In Stock, only 2 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

8

Honda 16100-Z0Y-851

CARBURETOR ASSY. (BB65M A)
(Superseded to 16100-Z0Y-853)

Note: Use up to Engine SN 2348724.

$23.99

$

In Stock, Qty 18

0

8

Honda 16100-Z0Y-853

CARBURETOR ASSY. (BB65M B)

Note: Use from Engine SN 2348725 to 6400000.

$23.99

$

In Stock, Qty 18

0

8

Honda 16100-Z8B-861

CARBURETOR ASSY. (BB71A A)

Note: Use from Engine SN 6400001.

$22.99

$

In Stock, only 2 left!

0

9

Honda 16155-ZM0-013

VALVE, FLOAT

$34.99

$

In Stock, only 3 left!

0

10

Honda 16166-Z0Y-003

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use up to Engine SN BB65M B.

$1.49

$

In Stock, Qty 10

0

10

Honda 16166-Z8D-851

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use from Engine SN BB72A A.

$10.99

$

In Stock, only 1 left!

0

11

Honda 16211-ZL8-000

INSULATOR, CARBURETOR

$4.49

$

In Stock, Qty 20+

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR

$7.99

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6)

Note: Use up to Engine SN BB65M B.

$0.99

$

In Stock, only 4 left!

0

17

Honda 99101-124-0620

JET, MAIN (#62)

Note: (Optional). Use from Engine SN BB71A A.

$11.99

$

Usually ships in 3-6 days

0

17

Honda 99101-124-0650

JET, MAIN (#65)

Note: (Optional).

$12.99

$

In Stock, only 2 left!

0

17

Honda 99101-124-0680

JET, MAIN (#68) (CARBURETOR NO.)

Note: Use from Engine SN BB71A A.

$11.99

$

Usually ships in 3-6 days

0

17

Honda 99101-124-0680

JET, MAIN (#68) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB72A A.

$11.99

$

Usually ships in 3-6 days

0

17

Honda 99101-124-0700

JET, MAIN (#70) (CARBURETOR NO.)

Note: Use up to Engine SN BB72A A.

$11.99

$

Usually ships in 3-6 days

0

18

Honda 19651-Z0L-000

GUIDE, AIR

$0.99

$

In Stock, Qty 20+

0

19

Honda 16015-Z0L-881

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BB65M A.

$31.99

$

Usually ships in 3-6 days

0

21

Honda 16221-Z0L-900

SPACER, CARBURETOR

Note: Use from Engine SN 2348725.

$2.99

$

Usually ships in 3-6 days

0
