GCV190 LA N5BR (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-1607129 - GJAAA-9999999) CONTROL (3) Parts Diagram

Engine, Made in USA

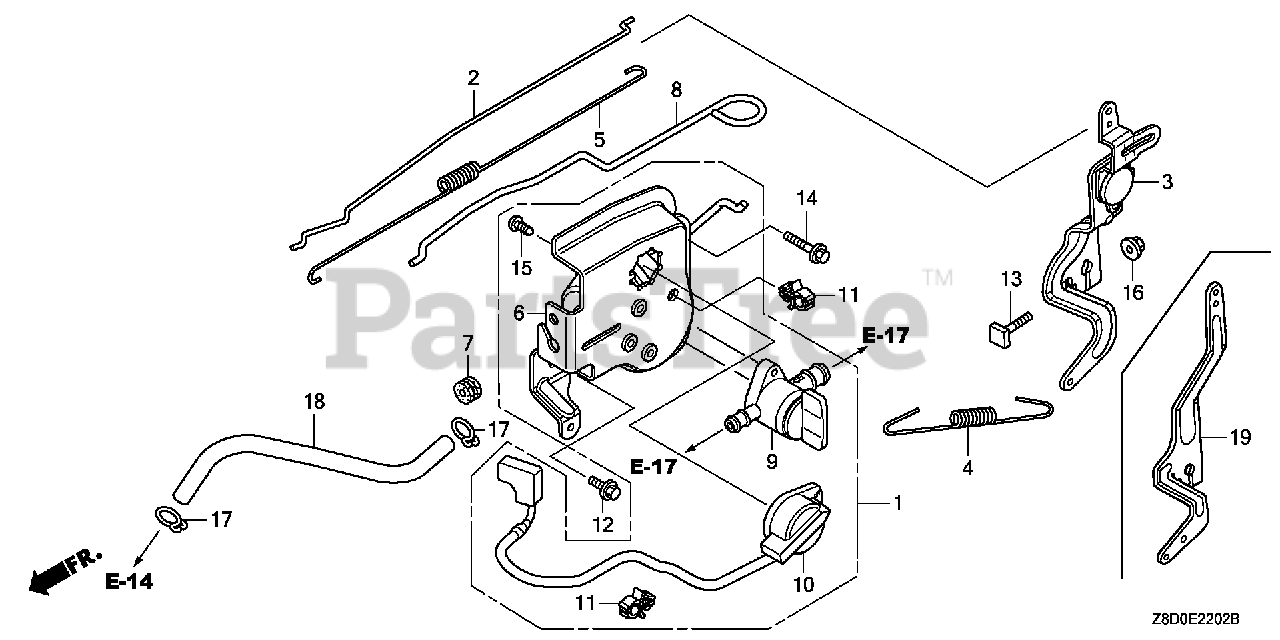

CONTROL (3) Parts Diagram

  • Title

2

Honda 16555-Z0L-801

SEE PART DETAILS - PRI; ROD, GOVERNOR

Note: Use from Engine SN 2348725.

$0.99

$

In Stock, only 2 left!

0

4

Honda 16561-Z8B-V30

SPRING, GOVERNOR

Note: Use from Engine SN 2348725.

$1.49

$

In Stock, Qty 6

0

5

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

Note: Use from Engine SN 2348725.

$3.49

$

In Stock, Qty 8

0

6

Honda 16581-Z8D-000

BASE, CONTROL

Note: Use from Engine SN 2348725.

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16613-893-000

GROMMET, CHOKE ROD

Note: Use from Engine SN 2348725.

$3.99

$

In Stock, Qty 20+

0

8

Honda 16674-Z8D-800

ROD, CHOKE

Note: Use from Engine SN 2348725.

$1.99

$

In Stock, Qty 7

0

9

Honda 16950-Z0Y-003

PETCOCK ASSY.

Note: Use from Engine SN 2348725.

$4.99

$

In Stock, Qty 13

0

10

Honda 35120-Z8B-911

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 35120-Z8B-912)

Note: Use from Engine SN 6651241 to 7876412.

$15.99

$

In Stock, only 1 left!

0

10

Honda 35120-Z8B-912

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP
(Superseded to 35120-Z8B-913)

Note: Use from Engine SN 6651241 to 7876412.

$15.99

$

In Stock, only 1 left!

0

10

Honda 35120-Z8B-912

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP
(Superseded to 35120-Z8B-913)

Note: Use from Engine SN 7876413.

$15.99

$

In Stock, only 1 left!

0

10

Honda 35120-Z8D-901

SWITCH ASSY., ENGINE STOP

Note: Use from Engine SN 2348725 to 6651240.

$8.49

$

In Stock, only 1 left!

0

11

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

Note: Use from Engine SN 2348725.

$8.49

$

In Stock, only 1 left!

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 2348725.

$1.99

$

In Stock, Qty 20+

0

13

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use from Engine SN 2348725.

$3.49

$

In Stock, only 3 left!

0

14

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

Note: Use from Engine SN 2348725.

$3.49

$

In Stock, only 1 left!

0

15

Honda 93913-25220

SCREW, TAPPING (5X12) (PO)

Note: Use from Engine SN 2348725.

$0.99

$

In Stock, Qty 8

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

Note: Use from Engine SN 2448725.

$0.99

$

In Stock, Qty 20+

0

19

Honda 16551-ZM0-010

ARM, GOVERNOR

Note: Use from Engine SN 2348725.

$7.49

$

In Stock, Qty 10

0
