GCV190 LA G5BR/A (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-8600001 - GJAAA-9999999) CARBURETOR Parts Diagram

Engine, Made in USA

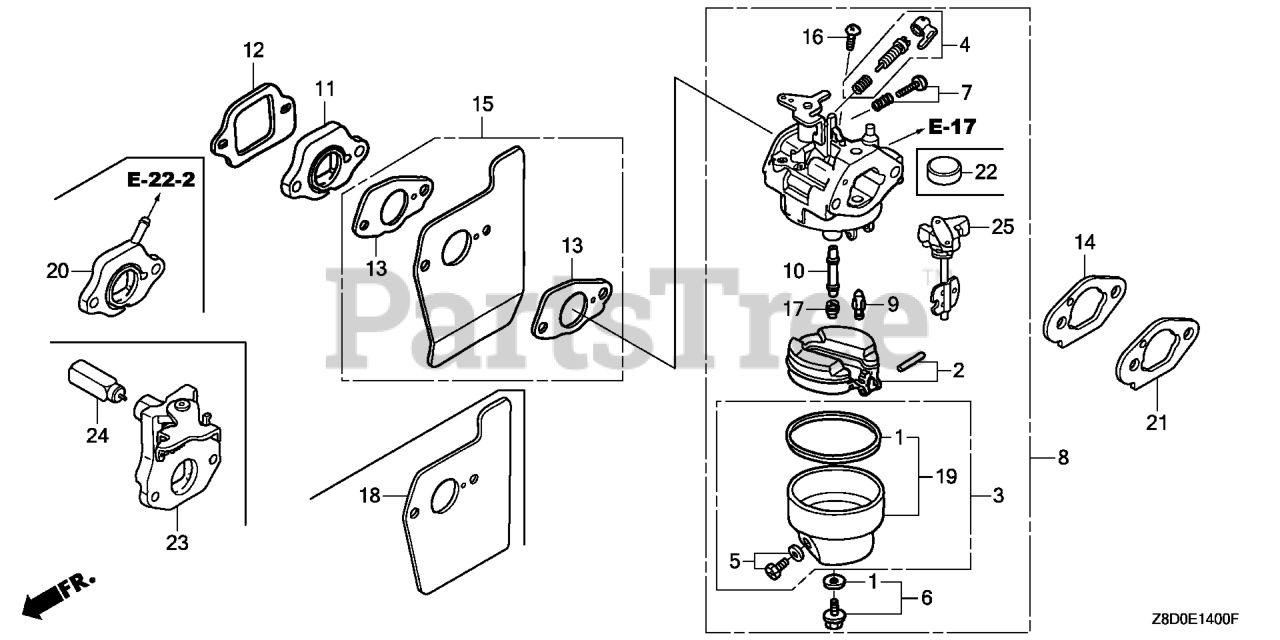

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$12.99

$

In Stock, Qty 5

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$31.99

$

In Stock, only 2 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16100-Z8B-912

CARBURETOR ASSY. (BB76B A)

$20.99

$

In Stock, only 1 left!

0

9

Honda 16155-ZM0-013

VALVE, FLOAT (Honda Code 7934714). (CARBURETOR NO.)

$34.99

$

In Stock, only 2 left!

0

10

Honda 16166-Z8B-911

NOZZLE, MAIN

$6.99

$

Usually ships in 3-6 days

0

11

Honda 16211-Z8B-000

INSULATOR, CARBURETOR

$3.99

$

Usually ships in 3-6 days

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.99

$

In Stock, Qty 6

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 4 left!

0

17

Honda 99101-124-0580

JET, MAIN (#58) Use up to Engine SN BB28A D.

Note: (Optional)

$11.99

$

In Stock, only 1 left!

0

17

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474). (CARBURETOR NO.)

Note: (Optional)

$12.99

$

In Stock, Qty 6

0

17

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

18

Honda 19651-Z0L-000

GUIDE, AIR

$0.99

$

In Stock, Qty 20+

0

19

Honda 16015-Z0L-881

CHAMBER SET, FLOAT (CARBURETOR NO.)

$31.99

$

Usually ships in 3-6 days

0

25

Honda 16044-Z8B-931

CHOKE SET

$42.99

$

Usually ships in 3-6 days

0
