GCV190 A N5A (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-1000001 - GJAAA-9999999) CONTROL (3) Parts Diagram

Engine, Made in USA

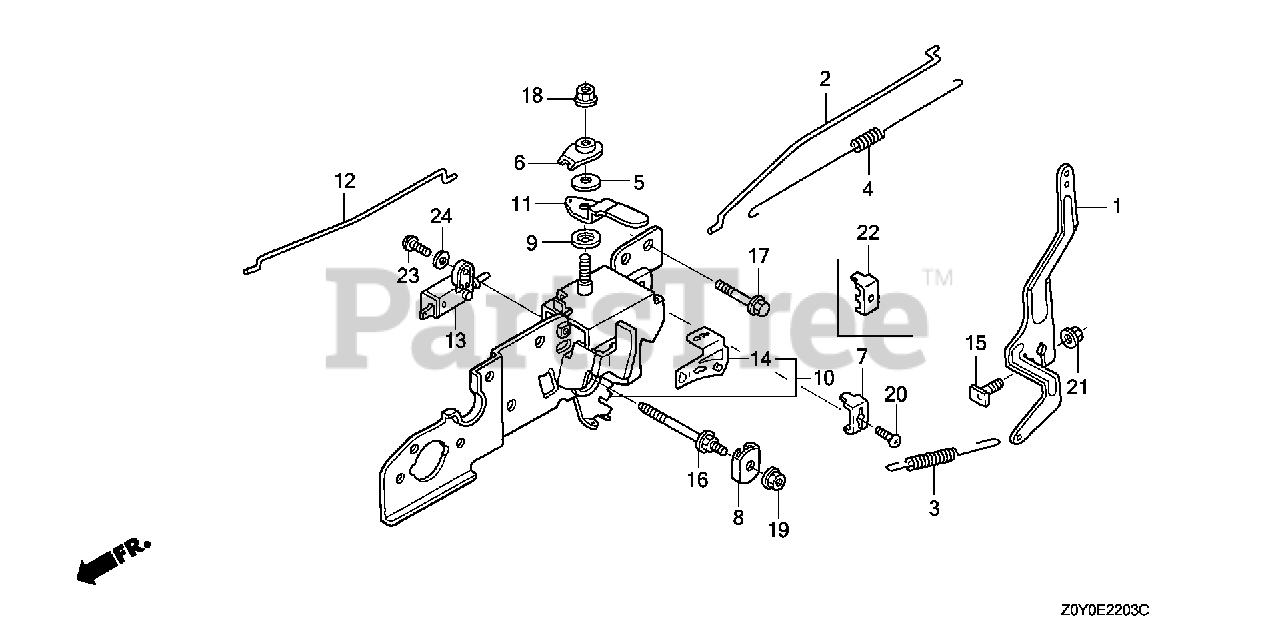

CONTROL (3) Parts Diagram

  • Title

1

Honda 16551-ZM0-010

ARM, GOVERNOR

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16555-ZM0-000

ROD, GOVERNOR

Note: Use up to Engine SN 1407409.

$5.49

$

In Stock, only 1 left!

0

2

Honda 16555-Z0L-800

ROD, GOVERNOR
(Superseded to 16555-Z0L-801)

Note: Use from Engine SN 1407410.

$0.99

$

In Stock, only 2 left!

0

2

Honda 16555-Z0L-801

ROD, GOVERNOR

Note: Use from Engine SN 1407410.

$0.99

$

In Stock, only 2 left!

0

3

Honda 16555-Z0L-800

ROD, GOVERNOR
(Superseded to 16555-Z0L-801)

Note: Use from Engine SN 1407410.

$0.99

$

In Stock, only 2 left!

0

3

Honda 16555-Z0L-801

ROD, GOVERNOR

Note: Use from Engine SN 1407410.

$0.99

$

In Stock, only 2 left!

0

3

Honda 16561-ZM0-V30

SPRING, GOVERNOR

$3.99

$

In Stock, Qty 10

0

4

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

$3.49

$

In Stock, Qty 8

0

5

Honda 16574-ZE1-000

SPRING, LEVER

$4.49

$

In Stock, only 2 left!

0

6

Honda 16575-ZE2-W00

WASHER, CONTROL LEVER

$5.49

$

Usually ships in 3-6 days

0

7

Honda 16576-891-000

HOLDER, CABLE

Note: Use up to Engine SN 1077417.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 16577-ZM0-V30

PLATE, LEVER CENTER

$8.99

$

Usually ships in 3-6 days

0

9

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

$5.49

$

In Stock, only 4 left!

0

10

Honda 16580-ZM0-V31

BASE, CONTROL

$66.99

$

Usually ships in 3-6 days

0

11

Honda 16612-ZM0-V30

LEVER, CHOKE

$12.99

$

Usually ships in 3-6 days

0

12

Honda 16674-ZM0-V30

ROD, CHOKE

$

$

Not available

13

Honda 35120-ZL8-003

SWITCH ASSY., ENGINE STOP (N.O)

$14.99

$

In Stock, only 1 left!

0

14

Honda 87532-ZM0-V30

MARK, THROTTLE INDICATION

$6.49

$

Usually ships in 3-6 days

0

15

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

16

Honda 90016-ZM0-V30

BOLT, SPECIAL (6X45)

$10.99

$

Usually ships in 3-6 days

0

17

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

$3.49

$

In Stock, only 1 left!

0

18

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90136-SM4-901

NUT, SELF-LOCK (5MM)

$7.99

$

Usually ships in 3-6 days

0

20

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

21

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 16617-VG3-000

HOLDER, CABLE

Note: Use from Engine SN 1077418.

$6.49

$

In Stock, only 4 left!

0

23

Honda 93892-04012-00

SCREW-WASHER (4X12)

$0.99

$

In Stock, Qty 8

0

24

Honda 94103-04000

WASHER, PLAIN (4MM)

$0.99

$

In Stock, Qty 7

0
