GCV190 A E1A2 (GJAAA) - Honda Engine, Made in USA (SN: GJAAA-8000001 - GJAAA-9999999) CARBURETOR Parts Diagram

Engine, Made in USA

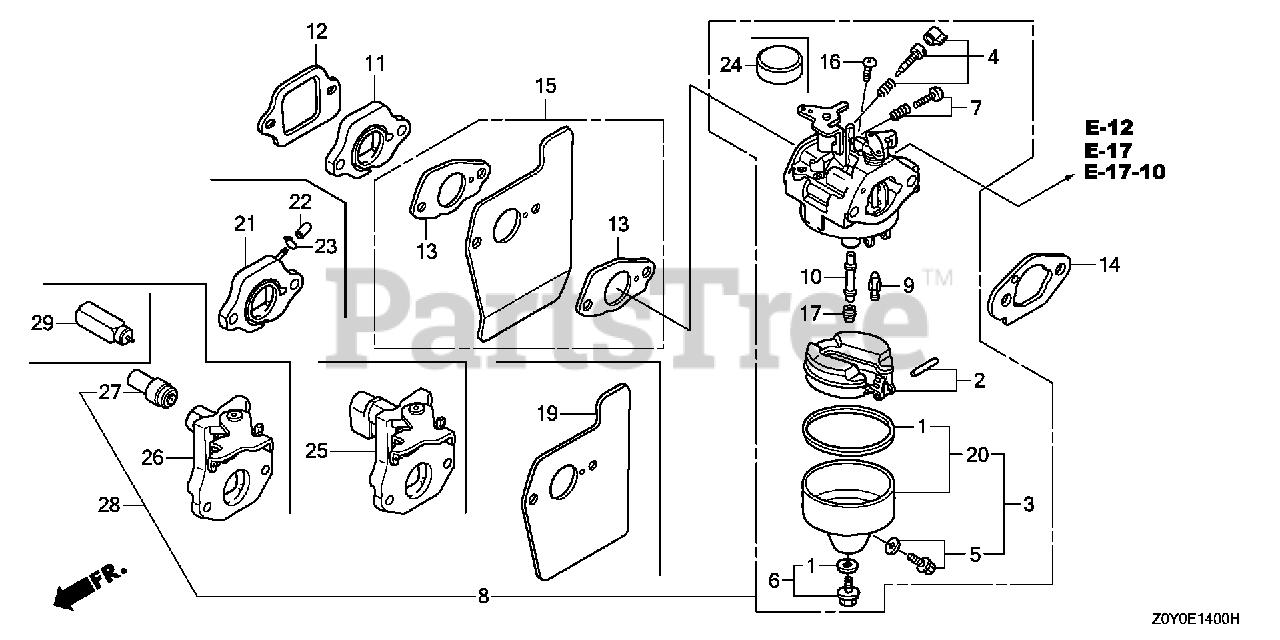

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$12.99

$

In Stock, Qty 5

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$31.99

$

In Stock, only 2 left!

0

3

Honda 16015-887-782

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 3465879).

$32.99

$

In Stock, only 1 left!

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$12.99

$

In Stock, only 1 left!

0

5

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z0Y-013

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB62J B)
(Superseded to 16100-Z0Y-813)

$26.99

$

Usually ships in 3-6 days

0

9

Honda 16155-ZM0-003

VALVE, FLOAT (Honda Code 5580212). (CARBURETOR NO.)

Note: Use up to Engine SN BB62J A.

$29.99

$

Usually ships in 3-6 days

0

9

Honda 16155-ZM0-013

VALVE, FLOAT (Honda Code 7934714). (CARBURETOR NO.)

Note: Use from Engine SN BB62J B.

$34.99

$

In Stock, only 2 left!

0

10

Honda 16166-Z0Y-003

NOZZLE, MAIN (CARBURETOR NO.)

$1.49

$

In Stock, Qty 10

0

11

Honda 16211-ZL8-000

INSULATOR, CARBURETOR (Honda Code 5580238).

$4.49

$

In Stock, Qty 20+

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.99

$

In Stock, Qty 6

0

13

Honda 16221-883-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR (Honda Code 5580253). (CHOKE SIDE)

$2.49

$

In Stock, Qty 20+

0

15

Honda 19650-ZM0-000

GUIDE, AIR (Honda Code 5580535).

$8.99

$

In Stock, only 3 left!

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 4 left!

0

17

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

Note: (Optional).

$12.99

$

In Stock, only 2 left!

0

17

Honda 99101-124-0680

JET, MAIN (#68) Use up to Engine SN BB30A D.

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

17

Honda 99101-124-0700

JET, MAIN (#70) Use up to Engine SN BB30A D.

$11.99

$

In Stock, only 1 left!

0
