GCV170 LA S3B (GJAUA) - Honda Engine, Made in USA (SN: GJAUA-1000001 - GJAUA-9999999) CARBURETOR Parts Diagram

Engine, Made in USA

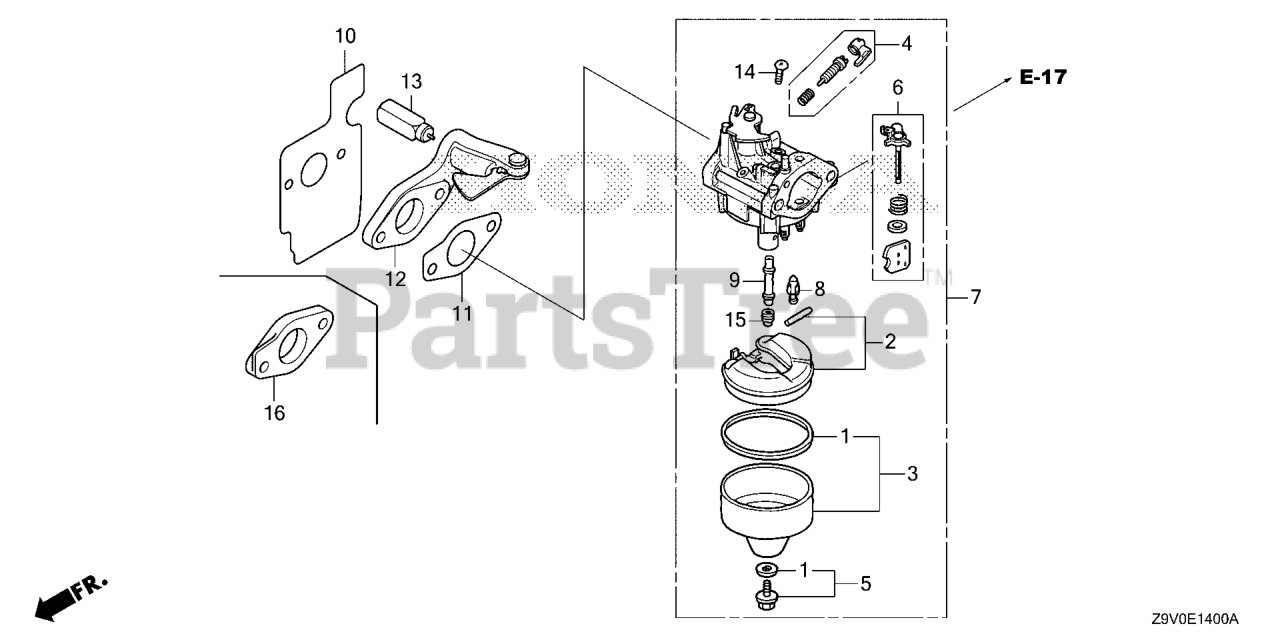

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-Z9L-811

GASKET SET

$11.99

$

In Stock, Qty 14

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$31.99

$

In Stock, only 2 left!

0

3

Honda 16015-Z9L-811

CHAMBER SET, FLOAT

$32.99

$

In Stock, only 1 left!

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 3 left!

0

5

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 3 left!

0

6

Honda 16044-Z9L-811

CHOKE SET

$26.99

$

In Stock, only 1 left!

0

7

Honda 16100-Z9L-811

CARBURETOR ASSY. (BB76J A)

$102.99

$

In Stock, Qty 12

0

8

Honda 16155-ZM0-013

VALVE, FLOAT (Honda Code 7934714). (CARBURETOR NO.)

$34.99

$

In Stock, only 3 left!

0

9

Honda 16166-Z9L-811

NOZZLE, MAIN

$19.99

$

Usually ships in 3-6 days

0

10

Honda 16212-Z9L-000

GASKET, INSULATOR

$6.49

$

In Stock, Qty 20+

0

11

Honda 16221-Z9L-000

GASKET, CARBURETOR

$1.49

$

In Stock, Qty 20+

0

12

Honda 16600-Z9L-000

CONTROL ASSY., CHOKE

$33.99

$

In Stock, only 1 left!

0

13

Honda 16620-Z9L-003

THERMO WAX ASSY.

$10.99

$

In Stock, Qty 9

0

14

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 4 left!

0

15

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

Note: (Optional)

$12.99

$

In Stock, only 2 left!

0

15

Honda 99101-124-0680

JET, MAIN (#68) Use up to Engine SN BB30A D.

$11.99

$

Usually ships in 3-6 days

0
