GCV160 LE N7A1 (GJAAE) - Honda Engine, Made in Italy (SN: GJAAE-2075803 - GJAAE-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in Italy

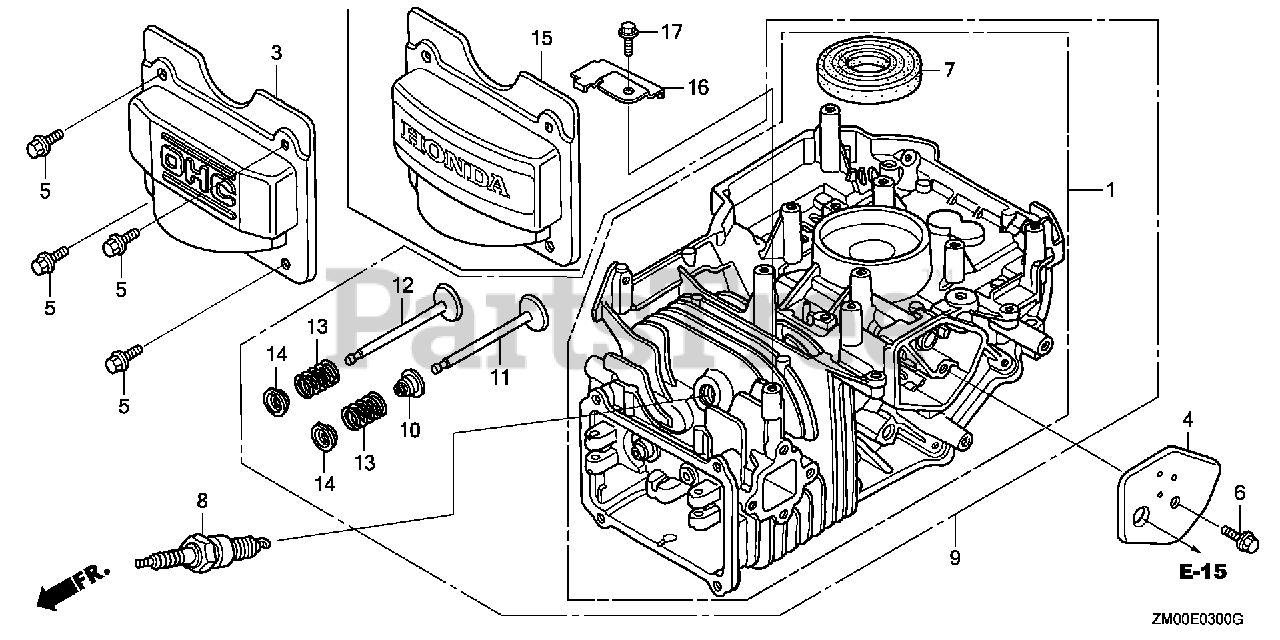

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-Z0L-419

SEE PART DETAILS - PRI; CYLINDER ASSY.

Note: Use from Engine SN 3039946 to 3406723.

$101.99

$

Usually ships in 3-6 days

0

1

Honda 12000-Z1L-406

CYLINDER ASSY.

Note: Use from Engine SN 3406724.

$229.99

$

Usually ships in 3-6 days

0

3

Honda 12310-Z0J-000

SEE PART DETAILS - SUP; COVER, CYLINDER HEAD
(Superseded to 12310-Z8A-000)

$33.99

$

Usually ships in 3-6 days

0

3

Honda 12310-Z8A-000

SEE PART DETAILS - PRI; COVER, CYLINDER HEAD

$33.99

$

Usually ships in 3-6 days

0

4

Honda 12355-ZL8-000

COVER, BREATHER (Honda Code 5580006). (BREATHER VALVE ASSY.)

$9.49

$

In Stock, Qty 5

0

5

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Engine SN 3406723.

$1.99

$

In Stock, Qty 19

0

5

Honda 90013-Z1L-000

BOLT, FLANGE (6X13)

Note: Use from Engine SN 3406724.

$0.99

$

Usually ships in 3-6 days

0

6

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

7

Honda 91201-ZL8-003

OIL SEAL (25.4X62X6) (Honda Code 5581038).

$7.99

$

Usually ships in 3-6 days

0

8

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.49

$

In Stock, Qty 20+

0

9

Honda 12000-Z8B-000

CYLINDER ASSY.

Note: Use up to Engine SN 3039945.

$92.99

$

Usually ships in 3-6 days

0

10

Honda 12209-ZM0-003

SEAL, VALVE STEM (Honda Code 6839831).

$9.49

$

In Stock, Qty 6

0

11

Honda 14711-ZL8-000

SEE PART DETAILS - PRI; VALVE, IN. (TECHNOSTAR)

$68.99

$

In Stock, only 4 left!

0

12

Honda 14721-ZL8-000

SEE PART DETAILS - SUP; VALVE, EX. (L8E)

$58.99

$

In Stock, Qty 9

0

13

Honda 14751-ZL8-000

SPRING, VALVE (Honda Code 5580139).

$0.99

$

In Stock, Qty 10

0

14

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING (Honda Code 1426980).
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 16

0

14

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 16

0
