GCV160 LE A7H1 (GJAAE) - Honda Engine, Made in Italy (SN: GJAAE-1000001 - GJAAE-9999999) FAN COVER Parts Diagram

Engine, Made in Italy

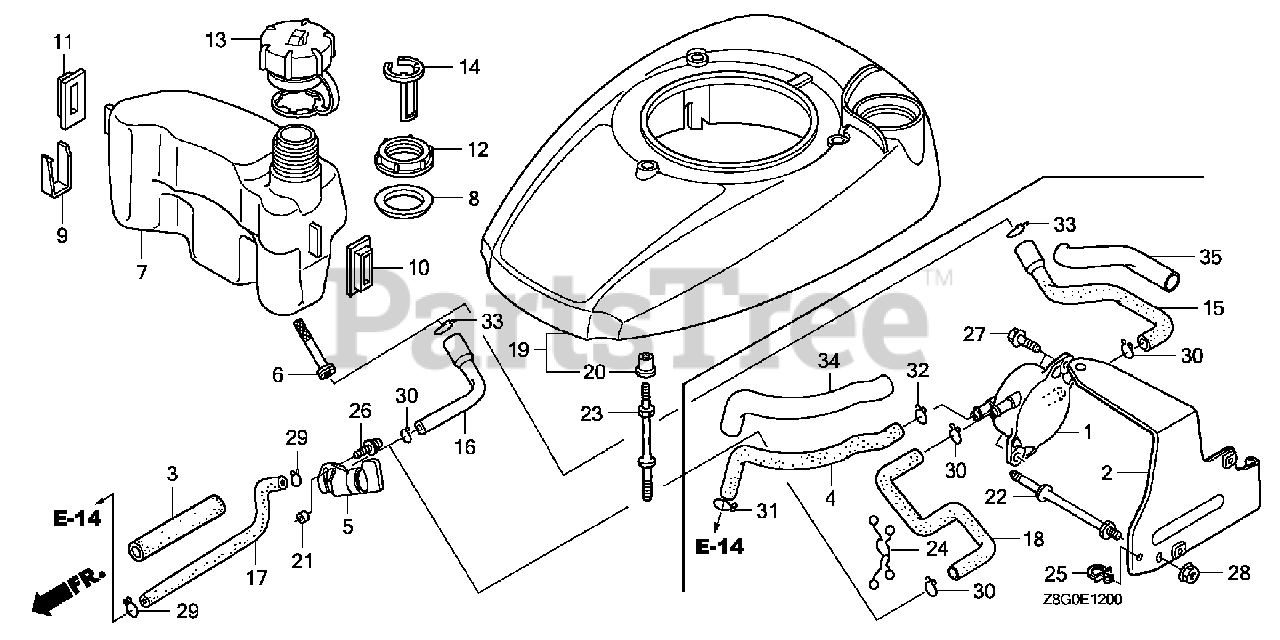

FAN COVER Parts Diagram

  • Title

1

Honda 16700-Z0M-782

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$51.99

$

Usually ships in 3-6 days

0

2

Honda 16711-Z0L-781

SEE PART DETAILS - PRI; STAY, FUEL PUMP

$23.99

$

Usually ships in 3-6 days

0

3

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 5

0

4

Honda 16882-Z0L-780

TUBE, DIAPHRAGM

$4.99

$

Usually ships in 3-6 days

0

5

Honda 16950-ZM0-003

PETCOCK ASSY.

$9.49

$

In Stock, only 4 left!

0

6

Honda 16952-ZA8-800

FILTER, FUEL

$8.99

$

In Stock, only 3 left!

0

7

Honda 17511-Z0L-020

TANK, FUEL

$

$

Currently unavailable

8

Honda 17514-Z0L-000

SEAL, FUEL FILLER NECK

$0.99

$

In Stock, Qty 10

0

9

Honda 17516-Z0L-000

CLIP, TANK MOUNTING

$0.99

$

In Stock, only 4 left!

0

10

Honda 17532-Z0L-000

RUBBER A, TANK MOUNTING

$0.99

$

In Stock, Qty 9

0

11

Honda 17533-Z0L-000

RUBBER B, TANK MOUNTING

$0.99

$

In Stock, Qty 6

0

12

Honda 17534-Z0L-000

NUT, TANK MOUNTING

$0.99

$

In Stock, Qty 10

0

13

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, only 3 left!

0

14

Honda 17636-Z0L-000

GAUGE, FUEL LEVEL

$0.99

$

In Stock, Qty 9

0

15

Honda 17701-Z0L-780

TUBE, FUEL TANK

$3.99

$

Usually ships in 3-6 days

0

17

Honda 17702-ZM0-800

TUBE, FUEL

$9.49

$

In Stock, Qty 5

0

18

Honda 17703-Z0L-790

TUBE B, FUEL

$5.49

$

Usually ships in 3-6 days

0

19

Honda 19610-Z0L-851ZA

SEE PART DETAILS - PRI; COVER, FAN *NH1* (BLACK)
(Superseded to 19611-Z0L-850ZA)

$38.99

$

In Stock, only 1 left!

0

20

Honda 19619-ZL8-300

COLLAR, FAN COVER

$1.49

$

In Stock, Qty 20+

0

21

Honda 33609-GK4-620

COLLAR, FR. TURN SIGNAL

$3.49

$

In Stock, only 1 left!

0

22

Honda 90041-Z0M-780

BOLT, STUD

$5.99

$

Usually ships in 3-6 days

0

23

Honda 90043-ZL8-000

BOLT, STUD (H=42.5MM)

$4.49

$

In Stock, only 3 left!

0

24

Honda 90601-Z0M-003

CLIP, PURSE LOCK

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90659-680-013

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

26

Honda 93891-05010-08

SCREW-WASHER (5X10)

$1.49

$

In Stock, Qty 5

0

27

Honda 93894-05014-00

SCREW-WASHER (5X14)

$1.49

$

In Stock, Qty 6

0

28

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

29

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 11

0

30

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, only 2 left!

0

31

Honda 95002-45000

CLIP, TUBE (C8)

$1.99

$

In Stock, Qty 9

0

32

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, only 3 left!

0

33

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 13

0

34

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X210)

$21.99

$

Usually ships in 3-6 days

0

35

Honda 95003-43008-10M

BULK HOSE, VINYL (13X15X8000) (13X15X90)

$78.99

$

Usually ships in 3-6 days

0
