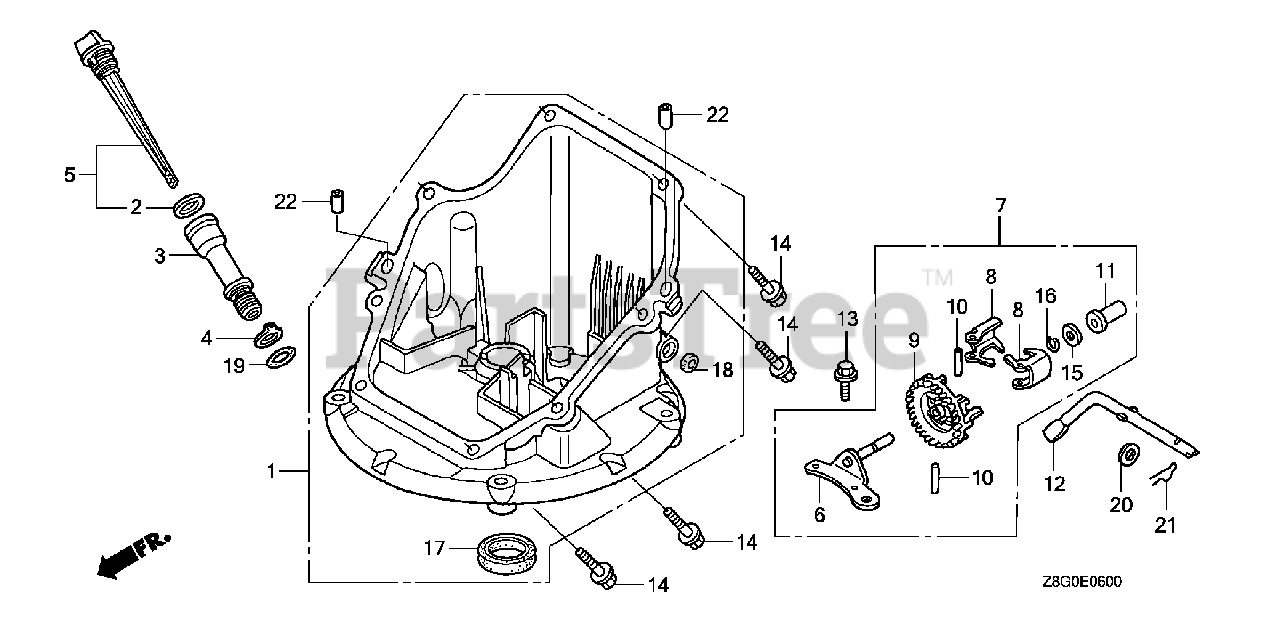

GCV160 LE A4A9 (GJAAE) - Honda Engine, Made in Italy (SN: GJAAE-1000001 - GJAAE-9999999) OIL PAN Parts Diagram

Engine, Made in Italy

OIL PAN Parts Diagram

  • Title
1

Honda 11300-ZM0-811

PAN ASSY., OIL

$64.99

$

Usually ships in 3-6 days

0

2

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP

$4.99

$

In Stock, only 1 left!

0

3

Honda 15631-ZM0-000

EXTENSION, OIL FILLER

$10.99

$

In Stock, only 1 left!

0

4

Honda 15639-ZM0-000

WASHER, EXTENSION LOCK

$0.99

$

In Stock, Qty 8

0

5

Honda 15650-ZM0-801

GAUGE ASSY., OIL LEVEL

$7.99

$

In Stock, only 3 left!

0

6

Honda 16508-ZM0-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER

$7.49

$

Usually ships in 3-6 days

0

7

Honda 16510-ZM0-010

SEE PART DETAILS - PRI; GOVERNOR ASSY.

$22.99

$

In Stock, only 2 left!

0

8

Honda 16511-ZL8-000

WEIGHT, GOVERNOR

$1.99

$

In Stock, only 4 left!

0

9

Honda 16512-ZM0-000

HOLDER, GOVERNOR WEIGHT

$13.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 11

0

12

Honda 16541-ZM0-000

SHAFT, GOVERNOR ARM

$5.49

$

In Stock, only 3 left!

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

14

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

15

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$2.49

$

In Stock, Qty 5

0

16

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 6

0

17

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6)

$7.49

$

In Stock, Qty 17

0

19

Honda 91356-MA6-005

O-RING (14.8X2.4) (NOK)

$2.49

$

In Stock, only 1 left!

0

20

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

22

Honda 94301-08200

PIN, DOWEL (8X20)

$2.99

$

Usually ships in 3-6 days

0
