GCV160 LE A4A9 (GJAAE) - Honda Engine, Made in Italy (SN: GJAAE-1000001 - GJAAE-9999999) CYLINDER Parts Diagram

Engine, Made in Italy

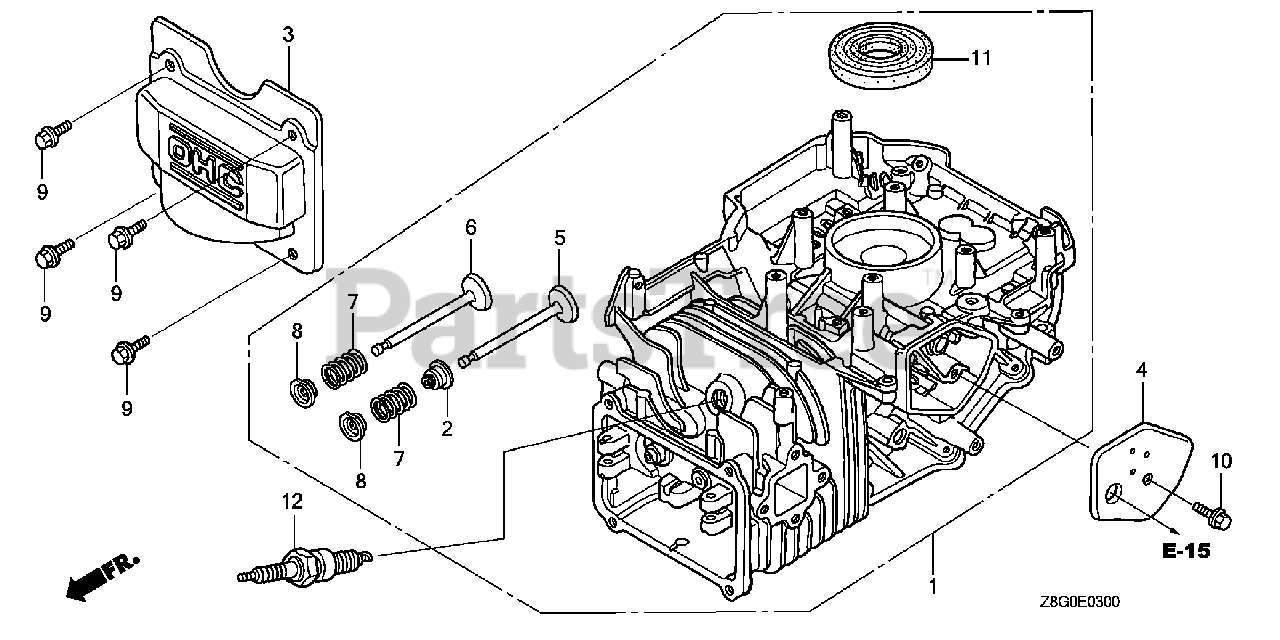

CYLINDER Parts Diagram

  • Title

1

Honda 12000-Z0L-840

SEE PART DETAILS - SUP; CYLINDER ASSY.
(Superseded to 06120-Z0L-305)

$109.99

$

Usually ships in 3-6 days

0

2

Honda 12209-ZM0-003

SEAL, VALVE STEM

$9.99

$

In Stock, Qty 5

0

3

Honda 12311-ZL8-000

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-Z8A-000)

$34.99

$

In Stock, only 1 left!

0

4

Honda 12355-ZL8-000

COVER, BREATHER (BREATHER VALVE ASSY.)

$9.49

$

In Stock, only 1 left!

0

5

Honda 14711-Z0J-000

SEE PART DETAILS - SUP; VALVE, IN. (ROCKNEL)
(Superseded to 14711-ZL8-000)

$71.99

$

In Stock, only 3 left!

0

6

Honda 14721-ZL8-000

SEE PART DETAILS - SUP; VALVE, EX.

$63.99

$

In Stock, Qty 9

0

7

Honda 14751-ZL8-000

SPRING, VALVE

$0.99

$

In Stock, Qty 12

0

8

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

10

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

11

Honda 91201-ZL8-003

OIL SEAL (25.4X62X6)

$8.49

$

In Stock, Qty 13

0

12

Honda 98079-55846

SPARK PLUG (BPR5ES) (NGK)

Note: Use from Engine SN 2218978.

$3.99

$

In Stock, Qty 20+

0

12

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

Note: Use up to Engine SN 2218977.

$3.99

$

In Stock, Qty 20+

0
