GCV160 LA1 A7X1 (GJATA) - Honda Engine, Made in USA (SN: GJATA-2000001 - GJATA-9999999) FUEL TANK Parts Diagram
Engine, Made in USA

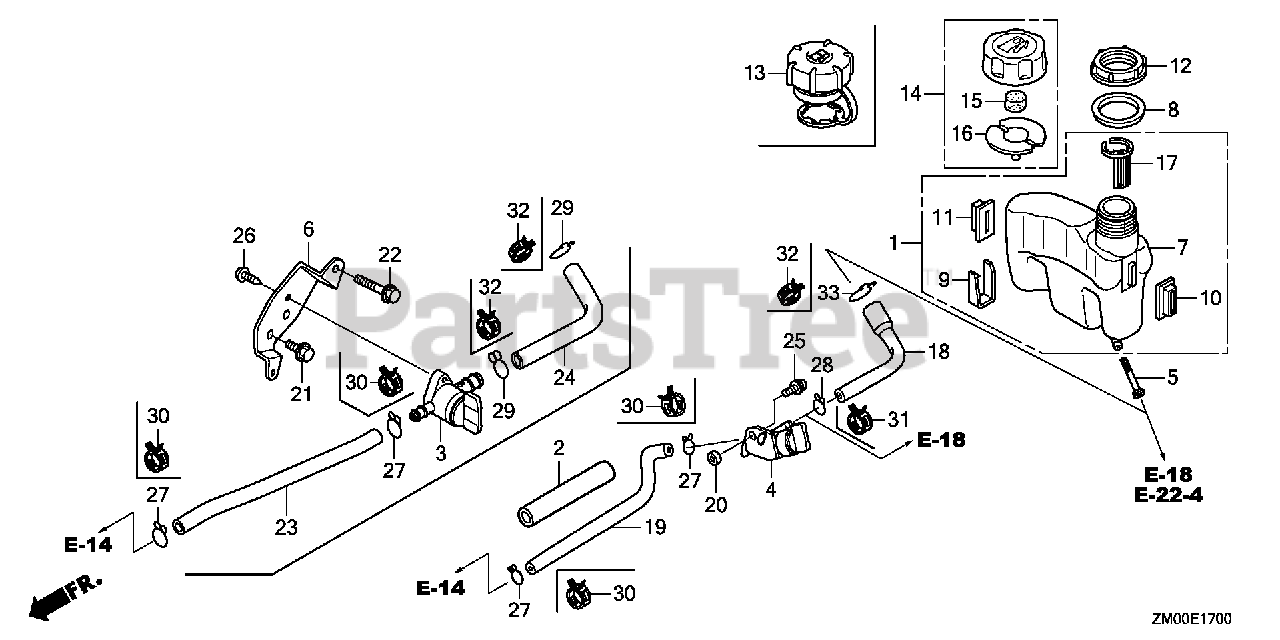

FUEL TANK Parts Diagram
Honda 16854-ZH8-000
SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).
$4.99
$
In Stock, Qty 5
Honda 16950-ZM0-003
PETCOCK ASSY. (Honda Code 7425770).
$9.49
$
In Stock, only 3 left!
Honda 17511-Z8B-801
TANK, FUEL
$24.99
$
Usually ships in 3-6 days
Honda 17514-Z0L-000
SEAL, FUEL FILLER NECK
$0.99
$
In Stock, Qty 10
Honda 17532-Z8B-800
RUBBER A, TANK MOUNTING
$15.99
$
Usually ships in 3-6 days
Honda 17533-Z8B-800
RUBBER B, TANK MOUNTING
$1.49
$
Usually ships in 3-6 days
Honda 17534-Z0L-000
NUT, TANK MOUNTING
$0.99
$
In Stock, Qty 10
$23.99
$
In Stock, only 2 left!
Honda 17636-Z0L-010
GAUGE, FUEL LEVEL
$0.99
$
In Stock, only 1 left!
Honda 17702-Z8B-802
TUBE, FUEL (FKM)
$21.99
$
In Stock, only 3 left!
Honda 91501-Z0L-800
COLLAR, FUEL PETCOCK (Honda Code 6978399).
$1.99
$
In Stock, only 1 left!
Honda 93891-05010-08
SEE PART DETAILS - PRI; SCREW-WASHER (5X10) (Honda Code 0671636).
$1.49
$
In Stock, Qty 5
Honda 95002-40800-08
SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).
$2.99
$
In Stock, Qty 10
