GCV160 LA0 N7S1 (GJARA) - Honda Engine, Made in USA (SN: GJARA-1000001 - GJARA-9999999) FUEL PUMP Parts Diagram

Engine, Made in USA

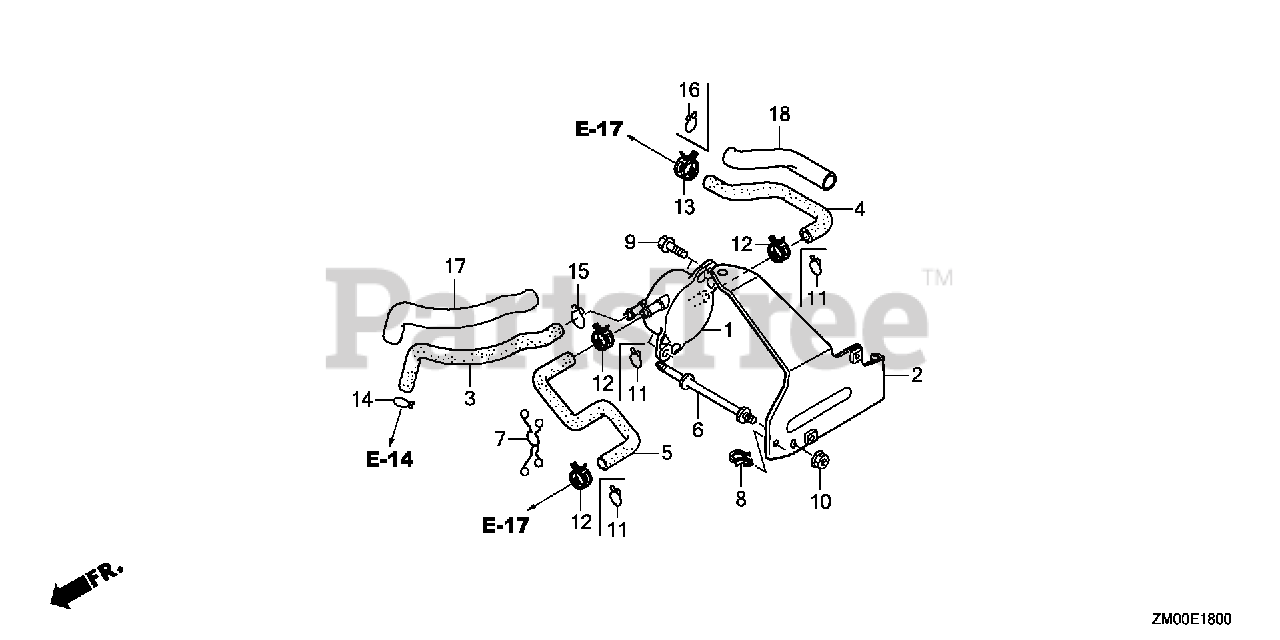

FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z0M-782

SEE PART DETAILS - PRI; PUMP ASSY., FUEL (MSDS)

$51.99

$

Usually ships in 3-6 days

0

2

Honda 16711-Z0L-781

STAY, FUEL PUMP

$23.99

$

Usually ships in 3-6 days

0

3

Honda 16882-Z0L-780

TUBE, DIAPHRAGM

$4.99

$

Usually ships in 3-6 days

0

4

Honda 17701-Z8B-801

TUBE, FUEL TANK (FKM)

$

$

Not available

5

Honda 17703-Z8B-801

TUBE B, FUEL (FKM)
(Superseded to 17703-Z8B-803)

$29.99

$

Usually ships in 3-6 days

0

6

Honda 90041-Z0M-780

BOLT, STUD

$5.99

$

Usually ships in 3-6 days

0

7

Honda 90601-Z0M-003

CLIP, PURSE LOCK

$4.49

$

Usually ships in 3-6 days

0

8

Honda 90659-680-013

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

9

Honda 93894-05014-00

SCREW-WASHER (5X14)

$1.49

$

In Stock, Qty 6

0

10

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

13

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 95002-45000

CLIP, TUBE (C8)

$1.99

$

In Stock, Qty 9

0

15

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 20+

0

17

Honda 95003-25003-10M

BULK HOSE, VINYL (9X11X3000) (9X11X210)

$21.99

$

Usually ships in 3-6 days

0

18

Honda 95003-43008-10M

BULK HOSE, VINYL (13X15X8000) (13X15X90)

$78.99

$

Usually ships in 3-6 days

0
