GCV160 LA A2R (GJAEA) - Honda Engine, Made in USA (SN: GJAEA-5386303 - GJAEA-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in USA

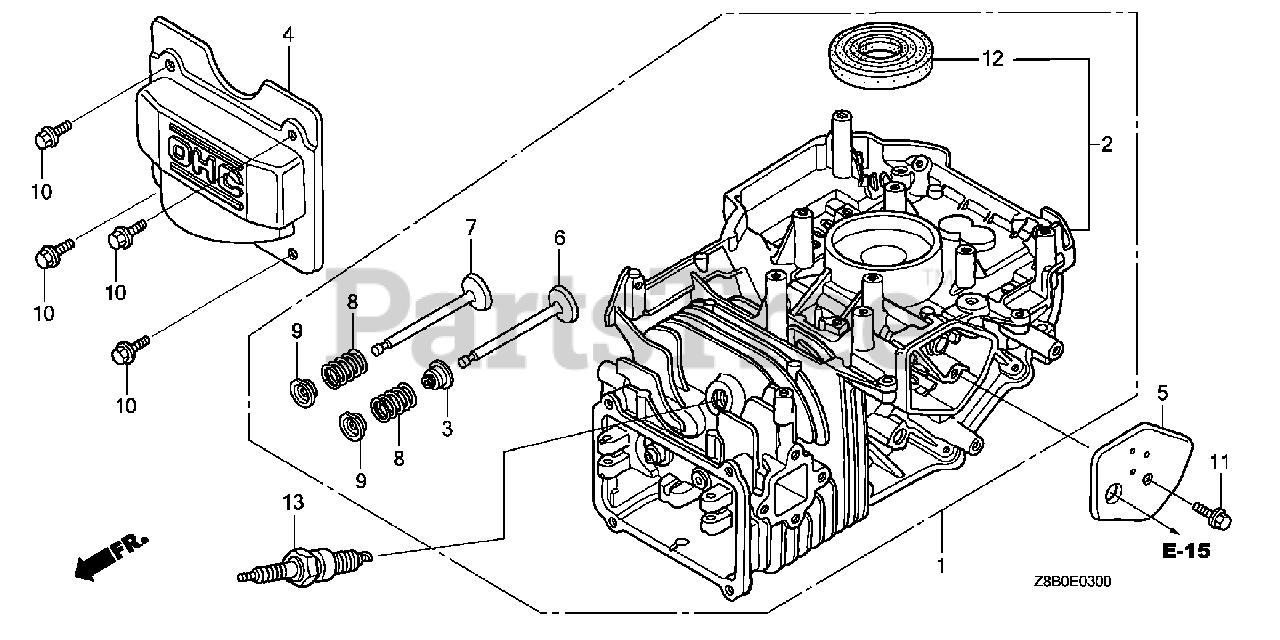

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZL8-425

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

1

Honda 12000-Z0L-505

SEE PART DETAILS - PRI; CYLINDER ASSY.
(Superseded to 12000-Z8B-000)

$92.99

$

Usually ships in 3-6 days

0

3

Honda 12209-ZM0-003

SEAL, VALVE STEM

$9.49

$

In Stock, Qty 6

0

4

Honda 12311-ZL8-D00

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-Z8A-000)

$33.99

$

Usually ships in 3-6 days

0

4

Honda 12311-ZL8-000

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-Z8A-000)

$33.99

$

Usually ships in 3-6 days

0

5

Honda 12355-ZL8-000

COVER, BREATHER (BREATHER VALVE ASSY.)

$9.49

$

In Stock, Qty 5

0

6

Honda 14711-Z0J-000

SEE PART DETAILS - SUP; VALVE, IN. (ROCKNEL)
(Superseded to 14711-ZL8-000)

Note: Use up to Engine SN 6330748.

$68.99

$

In Stock, only 4 left!

0

6

Honda 14711-Z0J-800

SEE PART DETAILS - PRI; VALVE, IN.
(Superseded to 14711-ZL8-000)

Note: Use from Engine SN 6330749.

$68.99

$

In Stock, only 4 left!

0

7

Honda 14721-ZL8-000

SEE PART DETAILS - SUP; VALVE, EX.

$58.99

$

In Stock, Qty 9

0

8

Honda 14751-ZL8-000

SPRING, VALVE

$0.99

$

In Stock, Qty 10

0

9

Honda 14771-Z0J-000

RETAINER, VALVE SPRING

$10.99

$

In Stock, Qty 6

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 19

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

12

Honda 91201-ZL8-003

OIL SEAL (25.4X62X6)

$7.99

$

In Stock, only 1 left!

0

13

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0
