GCV160 LA A1A (GJAEA) - Honda Engine, Made in USA (SN: GJAEA-5386303 - GJAEA-9999999) CONTROL (1) Parts Diagram

Engine, Made in USA

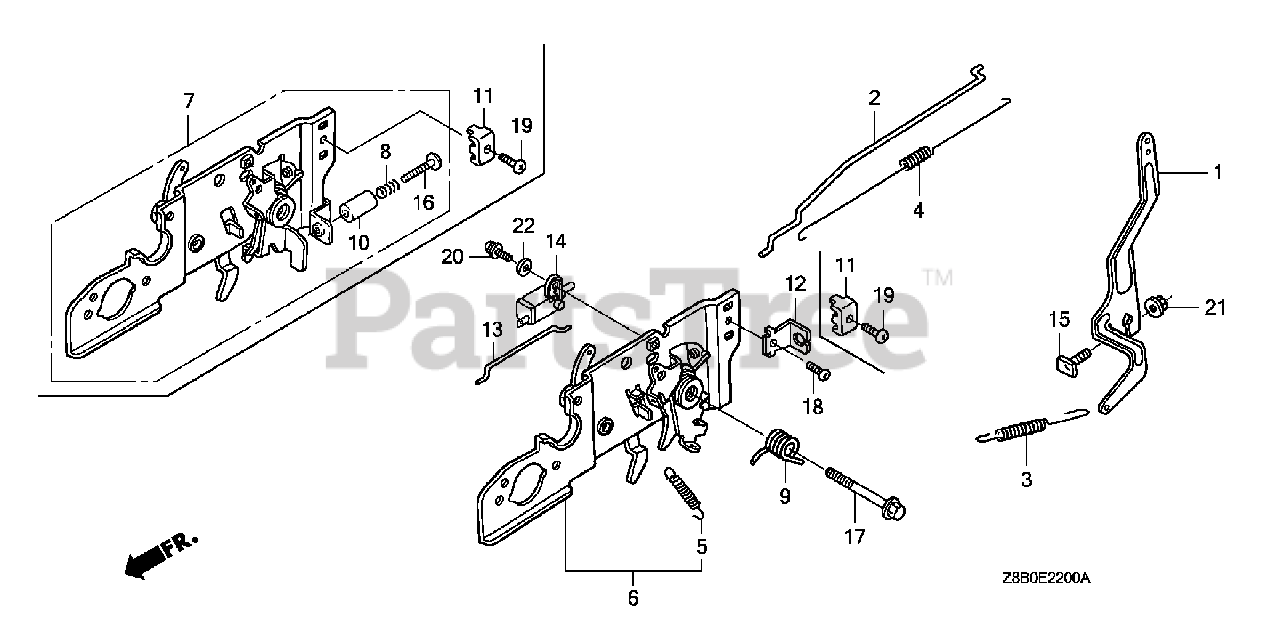

CONTROL (1) Parts Diagram

  • Title

1

Honda 16551-ZM0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

$7.99

$

In Stock, Qty 10

0

2

Honda 16555-Z0L-800

SEE PART DETAILS - SUP; ROD, GOVERNOR
(Superseded to 16555-Z0L-801)

Note: Use up to Engine SN 6349022.

$0.99

$

In Stock, Qty 9

0

2

Honda 16555-Z0L-801

SEE PART DETAILS - PRI; ROD, GOVERNOR

Note: Use from Engine SN 6349023.

$0.99

$

In Stock, Qty 9

0

3

Honda 16561-Z0L-000

SPRING, GOVERNOR

$1.99

$

In Stock, Qty 10

0

4

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

$3.49

$

Usually ships in 3-6 days

0

5

Honda 16576-ZE7-300

SPRING, LEVER

$4.99

$

In Stock, Qty 9

0

6

Honda 16580-ZM0-020

SEE PART DETAILS - SUP; BASE, CONTROL
(Superseded to 16580-ZM0-030)

$40.99

$

In Stock, only 1 left!

0

6

Honda 16580-ZM0-030

SEE PART DETAILS - PRI; BASE, CONTROL

$40.99

$

In Stock, only 1 left!

0

11

Honda 16617-VG3-000

HOLDER, CABLE

$6.49

$

In Stock, only 4 left!

0

13

Honda 16674-ZM0-000

ROD, CHOKE

$2.99

$

In Stock, only 2 left!

0

15

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

17

Honda 90016-ZM0-000

BOLT, FLANGE (6X45) (CT200)

$2.49

$

In Stock, only 4 left!

0

19

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 6

0

21

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
