GCV160 A0 S3TE (GJAPA) - Honda Engine, Made in USA (SN: GJAPA-1000001 - GJAPA-9999999) FLYWHEEL (3) Parts Diagram

Engine, Made in USA

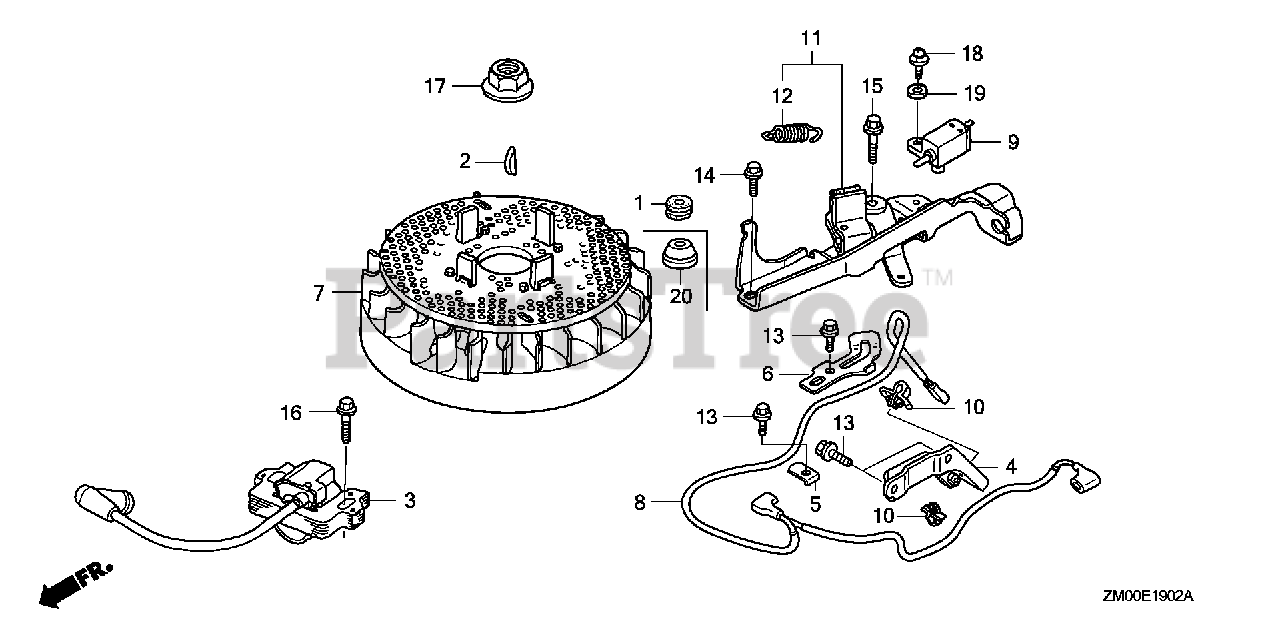

FLYWHEEL (3) Parts Diagram

  • Title

2

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 1886101.

$6.49

$

In Stock, Qty 10

0

2

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

Note: Use up to Engine SN 1886100.

$5.49

$

In Stock, only 4 left!

0

3

Honda 30500-ZL8-014

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (USE FOR F/W OF TEC) (TEC) Use up to Engine SN 3747197.

$56.99

$

Usually ships in 3-6 days

0

3

Honda 30500-Z8B-902

COIL ASSY., IGN

$18.99

$

Usually ships in 3-6 days

0

3

Honda 30500-Z8B-903

COIL ASSY., IGNITION (PHELON)

$23.99

$

Usually ships in 3-6 days

0

4

Honda 30547-Z0L-S00

CLAMP, STOP SWITCH WIRE

$869.99

$

Usually ships in 3-6 days

0

5

Honda 30548-ZL8-000

CLAMP, STOP SWITCH WIRE

$3.99

$

Usually ships in 3-6 days

0

6

Honda 30549-ZL8-000

CLAMP, WIRE

$5.99

$

Usually ships in 3-6 days

0

7

Honda 31105-ZM0-000

FLYWHEEL ASSY. (TEC) (USE FOR IGN. COIL OF TEC)

$62.99

$

In Stock, only 1 left!

0

8

Honda 32195-Z0L-S00

WIRE, STOP SWITCH

$6.49

$

In Stock, only 1 left!

0

9

Honda 35120-ZM0-003

SWITCH ASSY., ENGINE STOP (Honda Code 5580683). (N.C)

$13.99

$

In Stock, only 2 left!

0

10

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

$8.99

$

In Stock, only 1 left!

0

10

Honda 90681-959-003

CLIP, CABLE (A) (Honda Code 1824630).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 75100-Z0Y-020

SEE PART DETAILS - PRI; BRAKE SUB-ASSY.

$143.99

$

Usually ships in 3-6 days

0

12

Honda 75113-ZM0-000

SPRING, BRAKE LEVER (Honda Code 5580790).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

14

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

15

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90201-Z0T-800

NUT, SPECIAL (14MM) (Honda Code 7348378).

$2.99

$

In Stock, only 1 left!

0

18

Honda 93892-04012-00

SCREW-WASHER (4X12) (Honda Code 0485946).

$0.99

$

In Stock, Qty 8

0

19

Honda 94103-04000

WASHER, PLAIN (4MM) (Honda Code 1510361).

$0.99

$

In Stock, Qty 7

0

20

Honda 91601-Z0L-300

GROMMET, BRAKE PLATE

$0.99

$

Usually ships in 3-6 days

0
