GCV160 A S3A (GJAEA) - Honda Engine, Made in USA (SN: GJAEA-1000001 - GJAEA-5386302) OIL PAN Parts Diagram

Engine, Made in USA

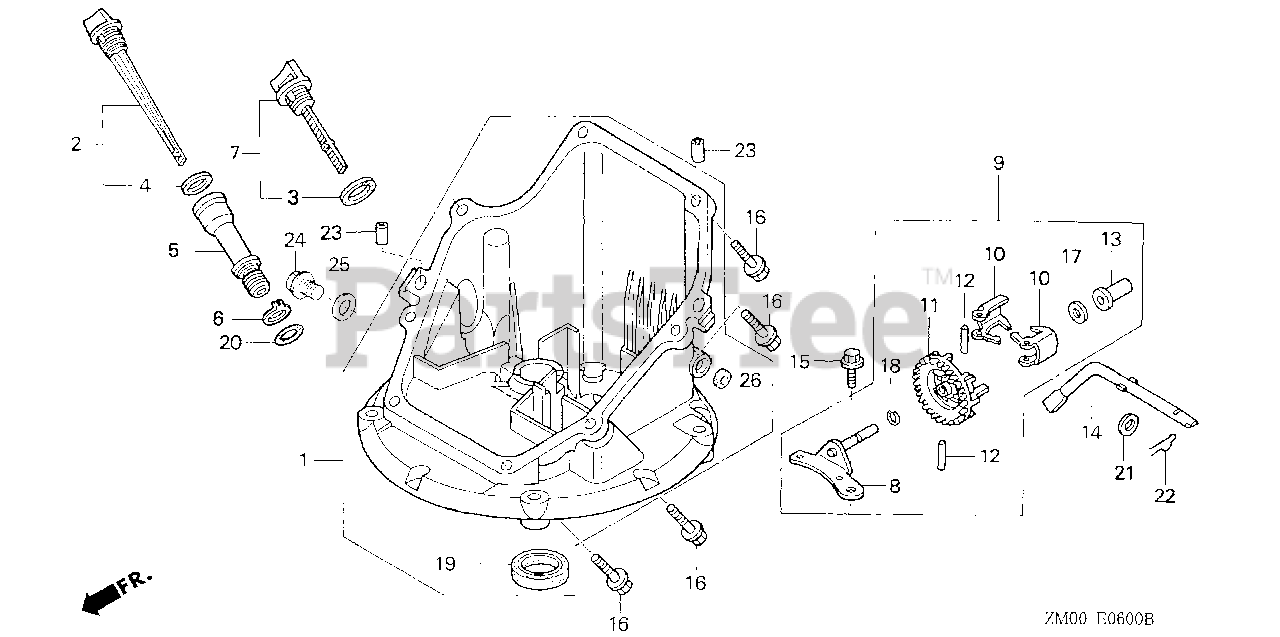

OIL PAN Parts Diagram

  • Title

1

Honda 11300-ZM0-405

SEE PART DETAILS - SUP; PAN ASSY., OIL (000) (Honda Code 6315675).

Note:

$

$

Currently unavailable

1

Honda 11300-ZM0-811

SEE PART DETAILS - PRI; PAN ASSY., OIL (Honda Code 6771489).

Note:

$64.99

$

Usually ships in 3-6 days

0

2

Honda 15650-ZM0-801

SEE PART DETAILS - PRI; DIPSTICK, OIL (Honda Code 5716915).

Note:

$7.99

$

In Stock, only 3 left!

0

4

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP (Honda Code 1452754).

Note:

$4.99

$

In Stock, only 1 left!

0

5

Honda 15631-ZM0-000

EXTENSION, OIL FILLER (Honda Code 5664503).

Note:

$10.99

$

In Stock, only 1 left!

0

6

Honda 15639-ZM0-000

WASHER, EXTENSION LOCK (Honda Code 5664511).

Note:

$0.99

$

In Stock, Qty 8

0

8

Honda 16508-ZM0-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER (Honda Code 6384341).

Note:

$7.49

$

Usually ships in 3-6 days

0

9

Honda 16510-ZM0-010

SEE PART DETAILS - PRI; GOVERNOR ASSY. (Honda Code 6384333).

Note:

$22.99

$

In Stock, only 2 left!

0

10

Honda 16511-ZL8-000

WEIGHT, GOVERNOR (Honda Code 5580287).

Note:

$1.99

$

In Stock, only 4 left!

0

11

Honda 16512-ZM0-000

HOLDER, GOVERNOR WEIGHT (Honda Code 5580295).

Note:

$13.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

Note:

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-ZE1-000

SLIDER, GOVERNOR (Honda Code 1427251).

Note:

$3.49

$

In Stock, Qty 8

0

14

Honda 16541-ZM0-000

SHAFT, GOVERNOR ARM (Honda Code 5580303).

Note:

$5.49

$

In Stock, only 2 left!

0

15

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

Note:

$3.49

$

In Stock, only 3 left!

0

16

Honda 90121-952-000

BOLT, FLANGE (6X25) (Honda Code 0748111).

Note:

$2.99

$

In Stock, Qty 20+

0

17

Honda 90451-ZE1-000

WASHER, THRUST (6MM) (Honda Code 2413862).

Note:

$2.49

$

In Stock, only 2 left!

0

18

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

Note:

$1.99

$

In Stock, only 3 left!

0

19

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6) (Honda Code 5581046).

Note:

$7.49

$

In Stock, Qty 14

0

20

Honda 91356-MA6-005

SEE PART DETAILS - PRI; O-RING (14.8X2.4) (NOK) (Honda Code 1377704).

Note:

$2.49

$

In Stock, only 1 left!

0

21

Honda 94101-06800

WASHER, PLAIN (6MM) (Honda Code 0345900).

Note:

$0.99

$

In Stock, Qty 20+

0

22

Honda 94251-08000

PIN, LOCK (8MM) (Honda Code 0115527).

Note:

$1.99

$

In Stock, Qty 9

0

23

Honda 94301-08200

PIN, DOWEL (8X20) (Honda Code 1417369).

Note:

$2.99

$

Usually ships in 3-6 days

0
