GCV160 A S3A (GJAEA) - Honda Engine, Made in USA (SN: GJAEA-1000001 - GJAEA-5386302) CHOKE BASE Parts Diagram

Engine, Made in USA

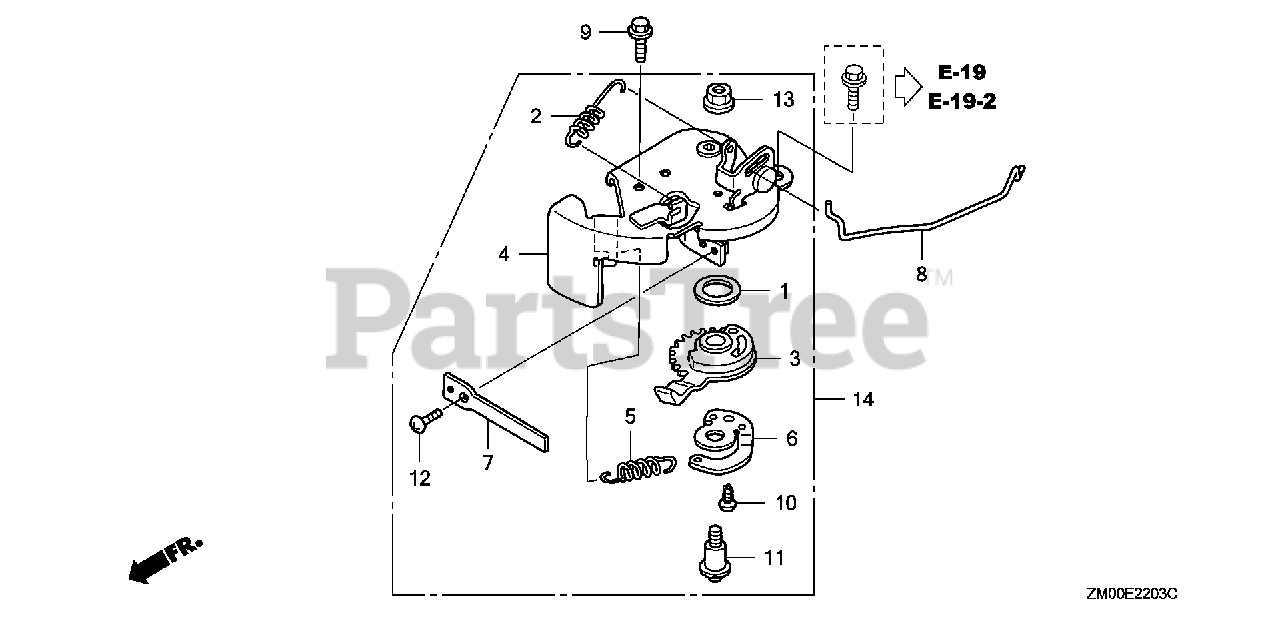

CHOKE BASE Parts Diagram

  • Title

1

Honda 16251-Z0L-800

SEAL, CHOKE LEVER (Honda Code 7257157).

$1.49

$

In Stock, only 4 left!

0

2

Honda 16592-ZJ1-000

SPRING, CABLE RETURN (Honda Code 4209581).

$2.49

$

In Stock, only 1 left!

0

3

Honda 16612-Z0L-800

LEVER, CHOKE (Honda Code 7257165).

$11.99

$

In Stock, only 1 left!

0

4

Honda 16613-Z0L-800

BASE, CHOKE (Honda Code 7257173).
(Superseded to 16610-Z0L-800)

$41.99

$

Usually ships in 3-6 days

0

5

Honda 16614-Z0L-800

SPRING, CHOKE LEVER (Honda Code 7257181).

$3.49

$

In Stock, only 2 left!

0

6

Honda 16616-Z0L-800

HOOK, CHOKE SPRING (Honda Code 7257199).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16619-Z0L-800

PLATE, CHOKE (Honda Code 7257207).

$5.49

$

Usually ships in 3-6 days

0

8

Honda 16632-Z0L-800

ROD, STOP (Honda Code 7229867).
(Superseded to 16632-Z0L-801)

$4.99

$

In Stock, only 4 left!

0

9

Honda 90029-888-000

BOLT, FLANGE (6X16) (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90102-SP1-003

SCREW, TAPPING (4X8) (PO) (Honda Code 3674413).

$3.99

$

In Stock, only 3 left!

0

11

Honda 90141-KT8-000

SCREW, PAN (5X19) (Honda Code 2544690).

$8.49

$

Usually ships in 3-6 days

0

12

Honda 93500-04008-0H

SCREW, PAN (4X8) (Honda Code 0369017).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

14

Honda 16610-Z0L-800

LEVER ASSY., CHOKE (Honda Code 8446270).

$41.99

$

Usually ships in 3-6 days

0
