GCV160 A NBL1 (GJAEA) - Honda Engine, Made in USA (SN: GJAEA-1000001 - GJAEA-9999999) FLYWHEEL (2) Parts Diagram

Engine, Made in USA

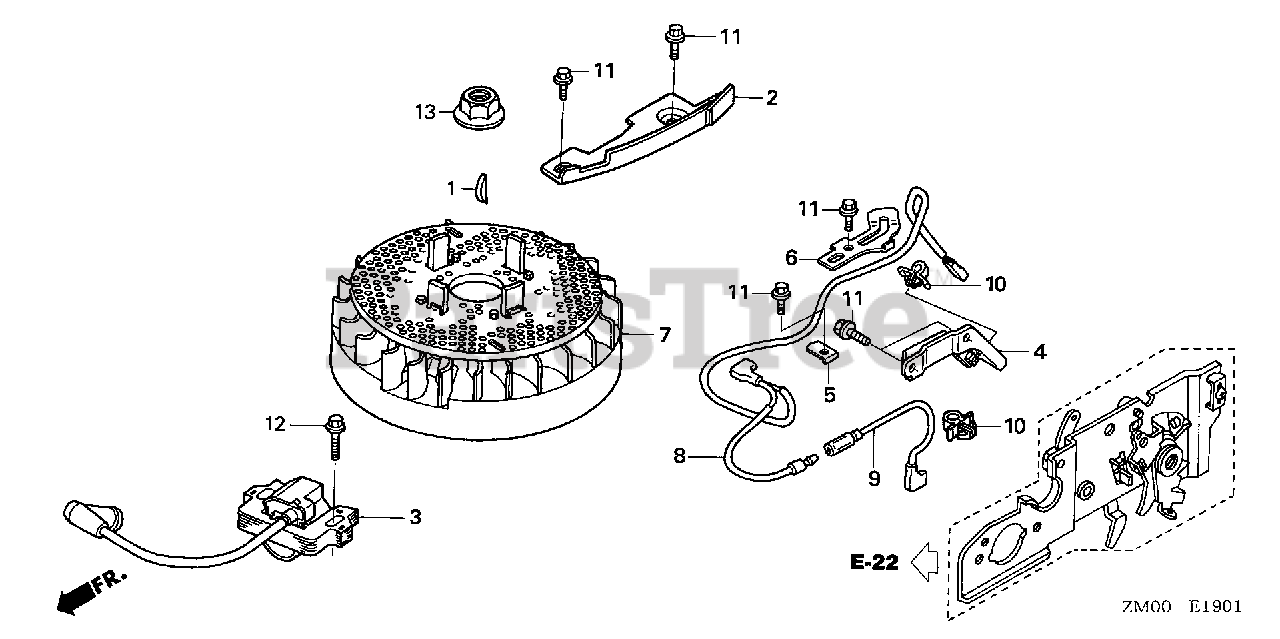

FLYWHEEL (2) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$5.49

$

In Stock, only 4 left!

0

2

Honda 19612-ZM0-J20

PLATE, SIDE

Note: Use up to Engine SN 5008780.

$11.99

$

Usually ships in 3-6 days

0

2

Honda 19612-Z0L-000

PLATE, SIDE

Note: Use from Engine SN 5008781.

$17.99

$

In Stock, only 1 left!

0

3

Honda 30500-Z8B-901

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (PHELON)
(Superseded to 30500-Z8B-903)

$23.99

$

Usually ships in 3-6 days

0

4

Honda 30547-Z0L-S00

CLAMP, STOP SWITCH WIRE

$869.99

$

Usually ships in 3-6 days

0

5

Honda 30548-ZL8-000

CLAMP, STOP SWITCH WIRE

$3.99

$

Usually ships in 3-6 days

0

6

Honda 30549-ZL8-000

CLAMP, WIRE

$5.99

$

Usually ships in 3-6 days

0

7

Honda 31105-Z0J-010

FLYWHEEL ASSY. (PHELON) (USE FOR IGN. COIL OF PHELON)

$70.99

$

Usually ships in 3-6 days

0

8

Honda 32195-Z0L-S20

WIRE, STOP SWITCH

$6.49

$

Usually ships in 3-6 days

0

9

Honda 32196-Z0L-S20

WIRE, STOP SWITCH

$2.99

$

Usually ships in 3-6 days

0

10

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

$8.99

$

In Stock, only 1 left!

0

10

Honda 90681-959-003

CLIP A, CABLE (3.8MM BLACK) (NIFCO)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

12

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

13

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

In Stock, only 1 left!

0
