GCV160 A N5AF (GJAEA) - Honda Engine, Made in USA (SN: GJAEA-1000001 - GJAEA-5386302) CONTROL 2 Parts Diagram

Engine, Made in USA

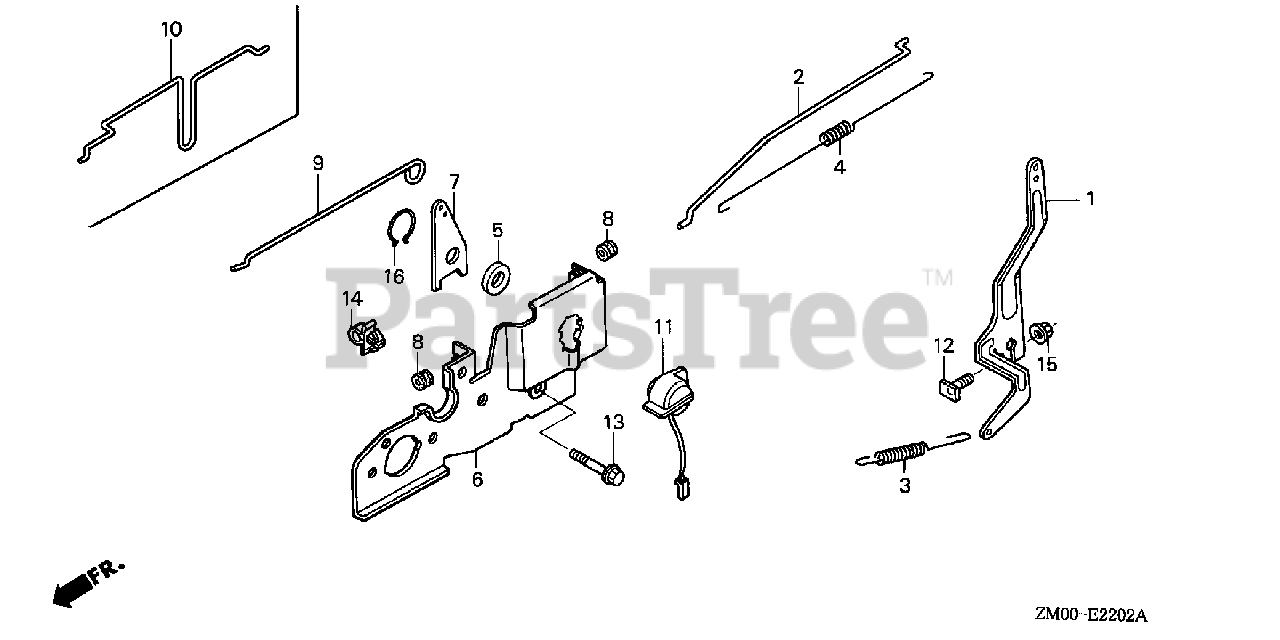

CONTROL 2 Parts Diagram

  • Title

1

Honda 16551-ZM0-010

ARM, GOVERNOR

Note: (Honda Code 6869630).

$7.99

$

In Stock, Qty 10

0

2

Honda 16555-ZM0-000

ROD, GOVERNOR

Note: (Honda Code 5580329).

$5.99

$

In Stock, only 1 left!

0

3

Honda 16561-ZM0-000

SPRING, GOVERNOR

Note: (Honda Code 5580345).

$3.99

$

In Stock, only 2 left!

0

4

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

Note: (Honda Code 5580352).

$3.49

$

Usually ships in 3-6 days

0

6

Honda 16580-Z0L-800

BASE, CONTROL

Note: (Honda Code 7061054).

$8.49

$

Usually ships in 3-6 days

0

8

Honda 16613-893-000

GROMMET, CHOKE ROD

Note: (Honda Code 0788596).

$3.99

$

In Stock, Qty 20+

0

9

Honda 16674-Z0L-800

ROD, CHOKE

Note: (Honda Code 6978381).

$2.49

$

In Stock, Qty 12

0

11

Honda 35120-Z0L-801

SWITCH ASSY., ENGINE STOP

Note: (Honda Code 7064389).

$12.99

$

In Stock, only 1 left!

0

12

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

13

Honda 90016-ZE8-000

BOLT, FLANGE (6X45)

Note: (Honda Code 2488187).

$2.99

$

In Stock, only 2 left!

0

14

Honda 90681-959-003

CLIP, CABLE (A)

Note: (Honda Code 1824630).

$4.49

$

Usually ships in 3-6 days

0

15

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

16

Honda 94511-14000

CIRCLIP, OUTER (14MM)

Note:

$1.49

$

In Stock, only 1 left!

0
