GCV135 N7E2 (GJAF) - Honda Engine, Made in Japan (SN: GJAF-1000001 - GJAF-9999999) CARBURETOR Parts Diagram

Engine, Made in Japan

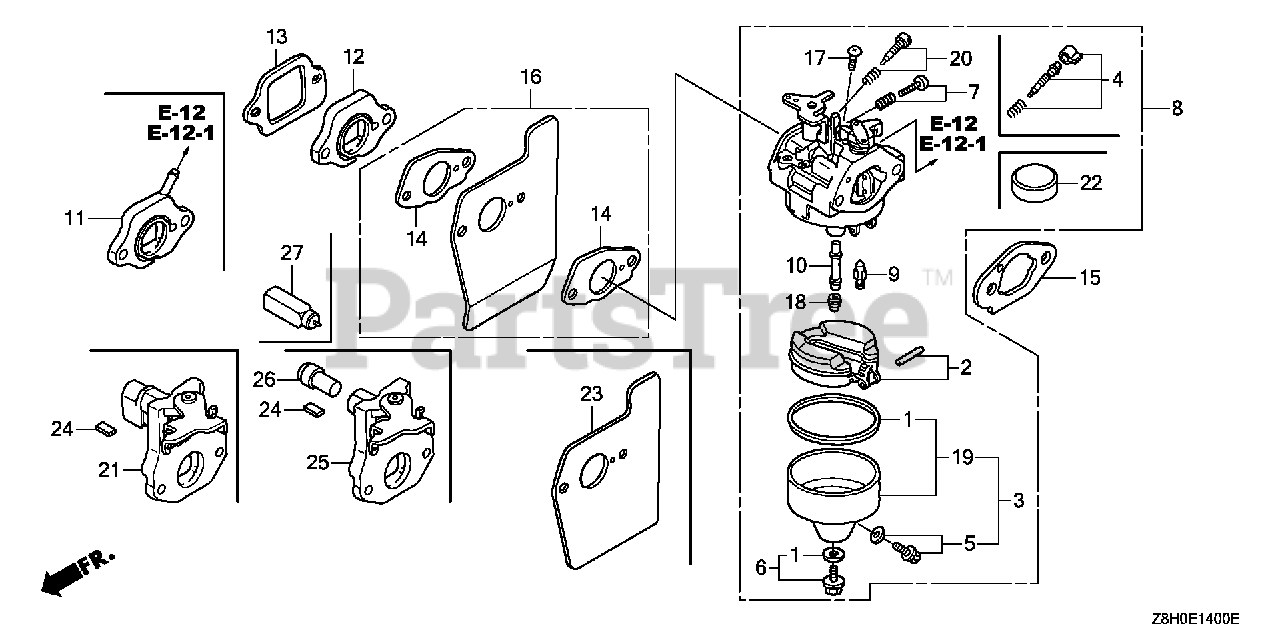

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

$13.99

$

In Stock, Qty 15

0

2

Honda 16013-ZL1-003

FLOAT SET

$33.99

$

In Stock, only 2 left!

0

3

Honda 16015-887-782

CHAMBER SET, FLOAT (CARBURETOR NO.)

$35.99

$

In Stock, only 1 left!

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$13.99

$

Usually ships in 3-6 days

0

5

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z0M-784

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB64G D)

$83.99

$

Usually ships in 3-6 days

0

9

Honda 16155-ZM0-003

VALVE, FLOAT (CARBURETOR NO.)

$31.99

$

Usually ships in 3-6 days

0

10

Honda 16166-ZM1-003

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

11

Honda 16210-Z0M-780

INSULATOR, CARBURETOR

$26.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZL8-000

GASKET, INSULATOR

$7.99

$

In Stock, Qty 20+

0

14

Honda 16221-883-800

GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16228-ZL8-000

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 19650-ZM0-000

GUIDE, AIR

$9.99

$

In Stock, Qty 7

0

17

Honda 93500-05006-0H

SCREW, PAN (5X6)

$0.99

$

In Stock, only 2 left!

0

18

Honda 99101-124-0580

JET, MAIN (#58)

Note: (Optional).

$11.99

$

In Stock, only 1 left!

0

18

Honda 99101-124-0600

JET, MAIN (#60) (CARBURETOR NO.)

Note: (Optional).

$12.99

$

In Stock, Qty 5

0

18

Honda 99101-124-0620

JET, MAIN (#62) (CARBURETOR NO.)

$11.99

$

In Stock, only 2 left!

0
