GCV-44/5 - Scag Grass Catcher (Later) GCV-44/5 GRASS CATCHER Parts Diagram

Grass Catcher

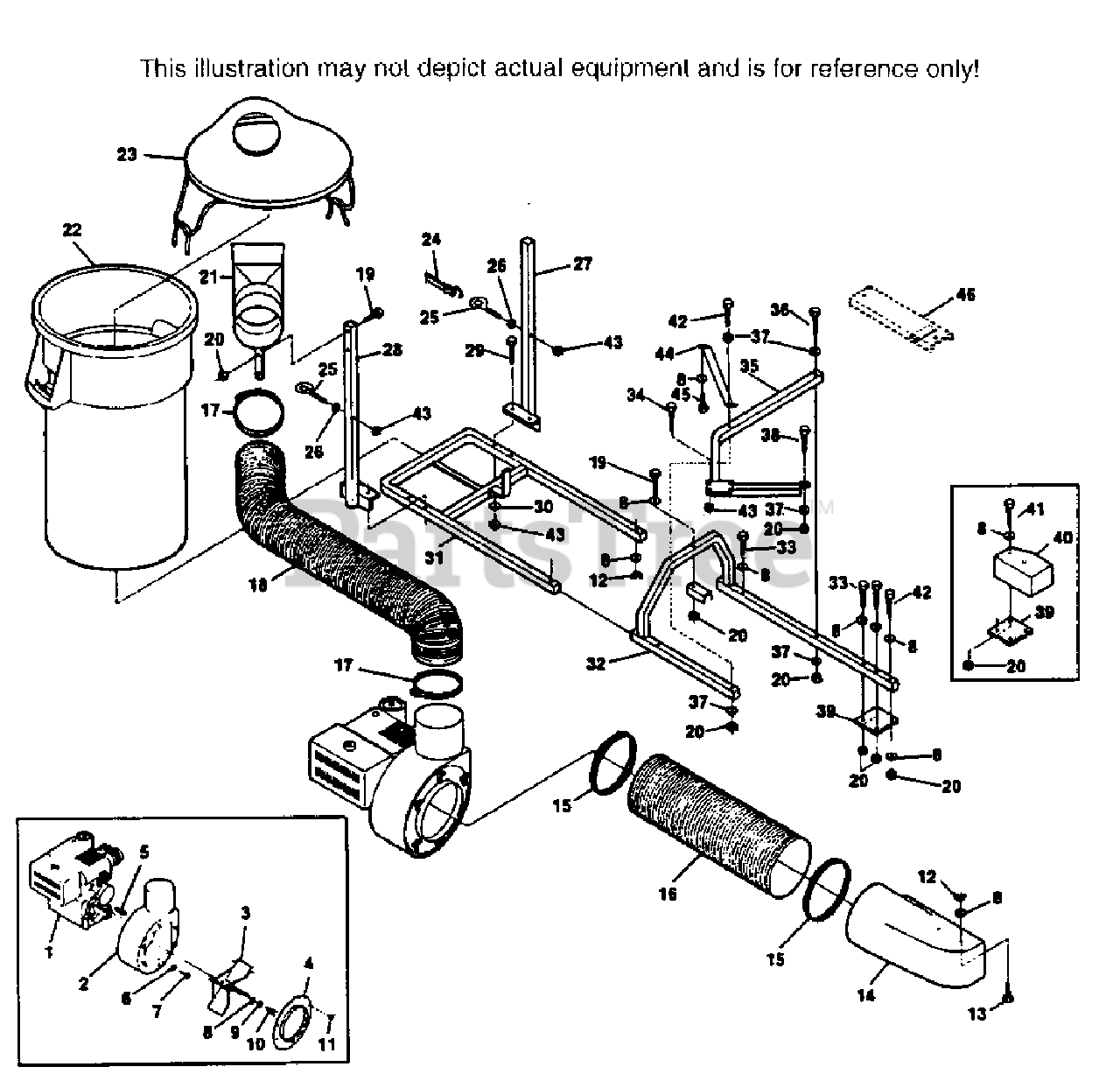

GCV-44/5 GRASS CATCHER Parts Diagram

  • Title

1

Scag 48173

ENGINE, 5 HP I.C.(1" CRANKSHAFT)

$

$

Not available

2

Scag 45080

BLOWER HOUSING ASSEMBLY

$

$

Not available

3

Scag 45077

FAN ASSEMBLY(1" BORE)

$

$

Not available

4

Scag 45081

INLET ADAPTOR

$

$

Not available

5

Scag 04063-06

KEY 1/4 X 1/4 X 1-1/2"(FOR 1" CRANKSHAFT

$1.49

$

In Stock, only 2 left!

0

5

Scag 46162

KEY AND BUSHING KIT(USED ON 3/4" CRANKSHAFT)

$

$

Not available

6

LOCKWASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

7

Scag 04001-56

BOLT, 5/16-24 X 1"

$0.99

$

Usually ships in 2-12 days

0

8

Scag 04041-07

WASHER, 3/8 15/16 X 25/64 X 12GA

$0.99

$

In Stock, Qty 20+

0

9

LOCKWASHER, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

10

BOLT, 3/8-24 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

11

Scag 04022-02

WING NUT, 5/16-18

$7.99

$

Usually ships in 2-12 days

0

12

Scag 04029-03

WING NUT, 3/8-16

$2.49

$

In Stock, Qty 20+

0

13

BOLT, 3/8-16 X 1"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

14

Scag 48132

BOOT
(Superseded to 481734)

$171.99

$

In Stock, only 1 left!

0

15

Scag 48136-02

CLAMP 8"

$9.99

$

In Stock, only 2 left!

0

16

Scag 48135-03

HOSE 8"
(Superseded to 48135-05)

$123.99

$

Usually ships in 2-12 days

0

17

Scag 48136-01

CLAMP 6"

$30.99

$

Usually ships in 2-12 days

0

18

Scag 48135-01

HOSE 6"
(Superseded to 48135-06)

$209.99

$

Usually ships in 2-12 days

0

19

BOLT, 3/8-16 X 2 1/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

20

NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

21

Scag 45376

HOSE SUPPORT

$

$

Not available

22

Scag 48133

BUCKET

$

$

Not available

23

Scag 48134

BUCKET COVER

$

$

Not available

24

Scag 48137

RUBBER STRAP
(Superseded to 48137-01)

$12.99

$

Usually ships in 2-12 days

0

25

Scag 04070-04

EYEBOLT, 5/16-18 X 2-3/4"

$

$

Currently unavailable

26

NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

27

Scag 45041

BUCKET BRACE-LH

$

$

Not available

28

Scag 45043

BUCKET BRACE-RH

$

$

Not available

29

BOLT, 5/16-18 X 2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

30

WASHER, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

31

Scag 45039

BUCKET SUPPORT FRAME

$

$

Not available

32

Scag 45038

MAIN FRAME

$

$

Not available

33

BOLT, 3/8-16 X 2-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

34

BOLT, 5/16-18 X 1-3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

35

Scag 45040

ENGINE MOUNTING FRAME

$

$

Not available

36

BOLT, 3/8-16 X 4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

37

Scag 04041-11

WASHER, 3/8 X 1-1/2 X 7 GA.

$1.99

$

In Stock, only 4 left!

0

38

BOLT, 3/8-16 X 3 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

39

Scag 42130

BALLAST SUPPORT

$

$

Not available

40

Scag 42134

BALLAST

$

$

Not available

41

BOLT, 3/8-16 X 5"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

42

BOLT, 3/8-16 X 4-1/2"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

43

NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

44

Scag 42932

ENGINE FRAME BRACE

$

$

Not available

45

BOLT, 3/8-16 X 1 3/4"

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATED.

$

$

Not available

46

Scag 45136

FRAME EXTENSION

$

$

Not available
