GCK 2200 - Husqvarna Grass Catcher (1995-11) Grass Catcher Kit Parts Diagram

Grass Catcher

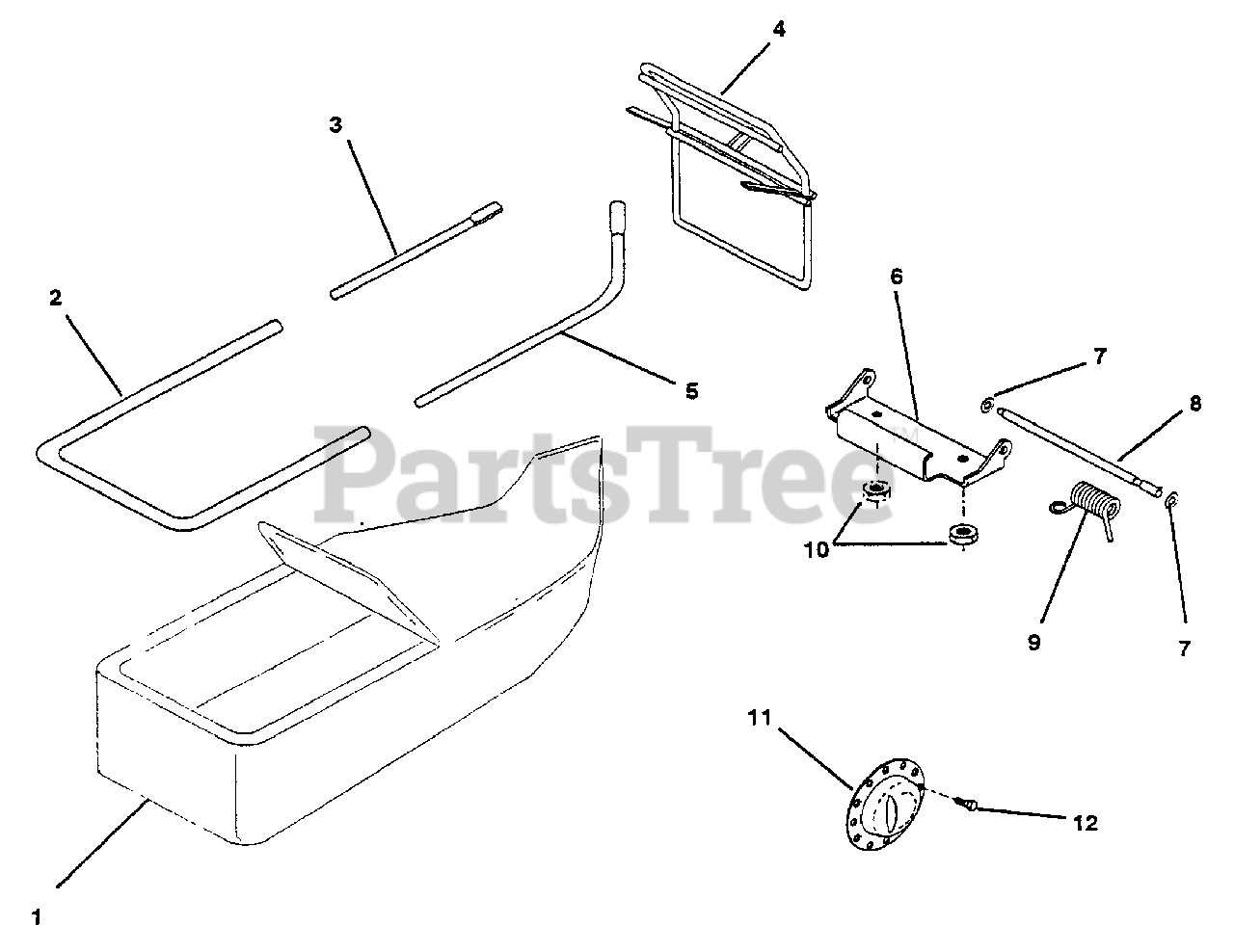

Grass Catcher Kit Parts Diagram

  • Title
1

Husqvarna 132685

Grass Bag

$

$

Not available

2

Husqvarna 132683

Frame, Upper

$

$

Not available

3

Husqvarna 134908

Side Tube, LH

$

$

Not available

4

Husqvarna 137203

Frame, Lower

$

$

Not available

5

Husqvarna 134907

Side Tube, RH

$

$

Not available

6

Husqvarna 88602

Hinge Bracket
(Superseded to 532088602)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 83731

Nut, Push
(Superseded to 532083731)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 801728

Rod, Hinge

$

$

Not available

9

Husqvarna 851855

Spring, Torsion

$2.99

$

Usually ships in 3-10 days

0

10

Husqvarna 63601

Locknut

$

$

Not available

11

Husqvarna 223290

Deflector, Muffler

Note: (Order from B&S)

$

$

Currently unavailable

12

Husqvarna 93705

Screw

Note: (Order from B&S)

$

$

Not available
