GC2038 BA - Honda Grass Catcher for 38" Cutter Deck, Made in USA CHUTER Parts Diagram

Grass Catcher for 38" Cutter Deck, Made in USA

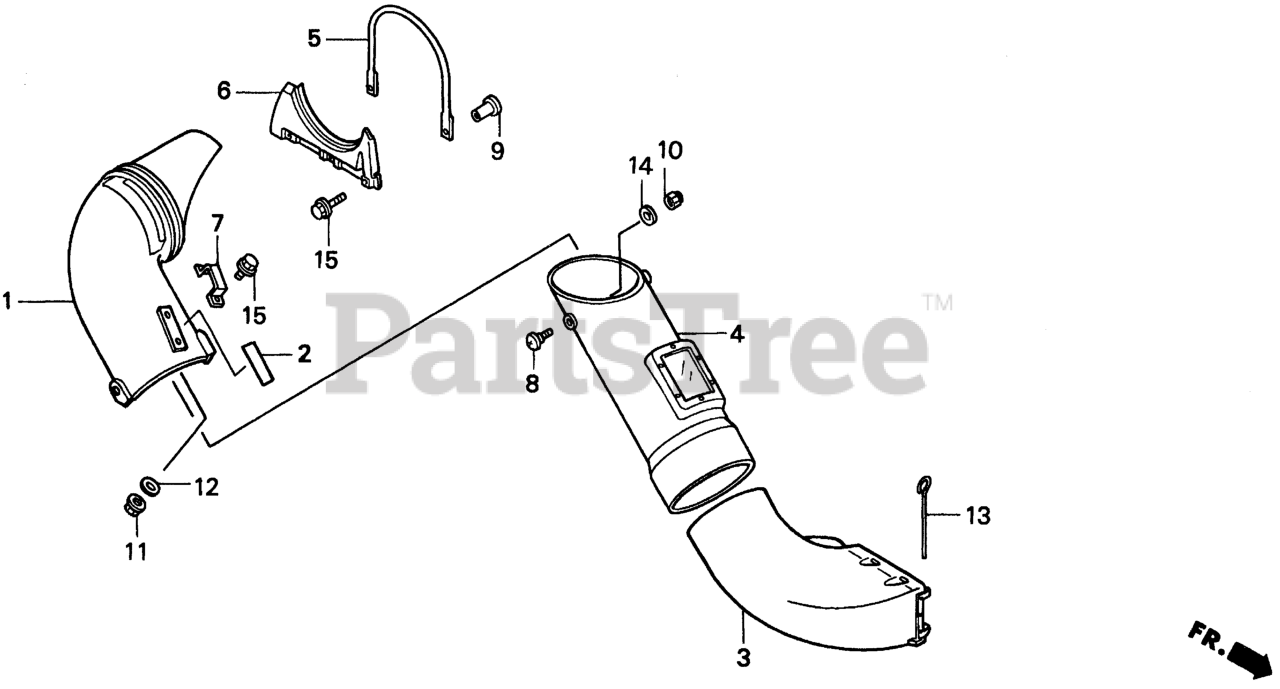

CHUTER Parts Diagram

  • Title

1

Honda 81221-758-S00

CHUTE (UPPER)

$

$

Not available

2

Honda 81228-772-N00

LABEL, CHUTE (A)

$7.49

$

Usually ships in 3-6 days

0

3

Honda 81230-758-S00

CHUTE (LOWER)

$100.99

$

Usually ships in 3-6 days

0

4

Honda 81235-758-S00

CHUTE, MIDDLE

$

$

Not available

5

Honda 82112-751-801

SUPPORT, CHUTE

$42.99

$

Usually ships in 3-6 days

0

6

Honda 82114-751-800

SEAL (NOT AVAILABLE)

$

$

Not available

7

Honda 82317-751-800

HANDLE, CHUTE (NOT AVAILABLE)

$

$

Not available

8

Honda 90116-751-800

BOLT, CHUTE

$6.99

$

Usually ships in 3-6 days

0

9

Honda 90306-751-800

NUT, PIPE (6MM)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90307-772-N00

NUT, NYLON INSERT LOCK (M8-1.25)

$

$

Currently unavailable

11

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

12

Honda 90502-758-U00

WASHER, PLAIN (0.25 INCH)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90750-758-S00

PIN, CHUTE (LOWER)

$45.99

$

Usually ships in 3-6 days

0

14

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 15

0

15

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

Usually ships in 3-6 days

0
