GC190 LA VBAF (GCAAA) - Honda Engine, Made in USA (SN: GCAAA-1496157 - GCAAA-9999999) PISTON + CONNECTING ROD Parts Diagram

Engine, Made in USA

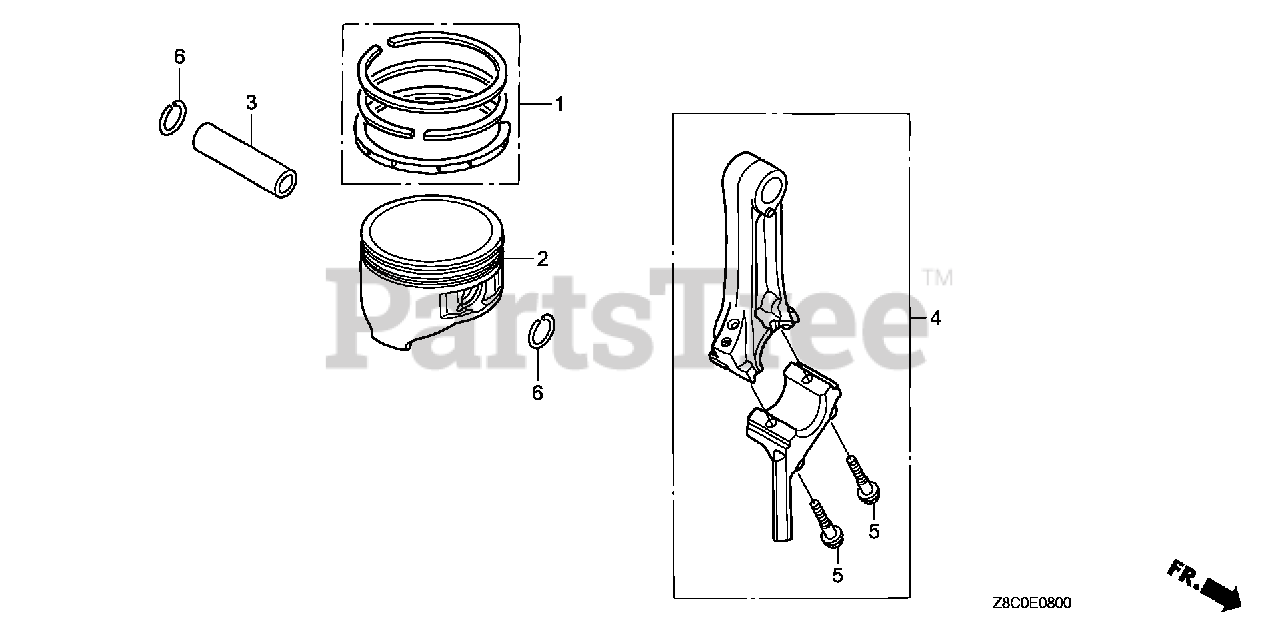

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-Z0Y-014

RING SET, PISTON (STD) (TEIKOKU)

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z0Y-010

PISTON
(Superseded to 13101-Z8D-820)

Note: Use up to Engine SN 2300000.

$32.99

$

In Stock, only 1 left!

0

2

Honda 13101-Z8D-820

PISTON
(Superseded to 13101-Z8C-900)

Note: Use from Engine SN 2300001.

$32.99

$

In Stock, only 1 left!

0

3

Honda 13111-Z0Y-000

PIN, PISTON

$13.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z0Y-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

$22.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

6

Honda 90551-ZE0-000

CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, Qty 20+

0
