GC190 LA VBAF (GCAAA) - Honda Engine, Made in USA (SN: GCAAA-1496157 - GCAAA-9999999) FLYWHEEL (CAST IRON) Parts Diagram

Engine, Made in USA

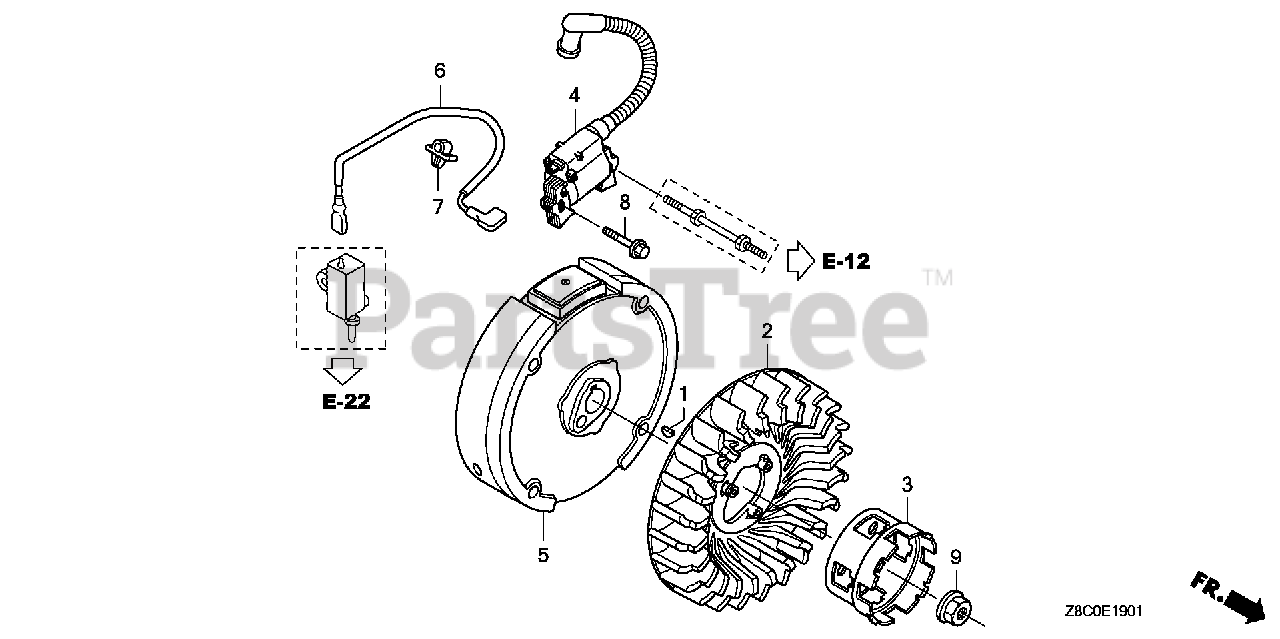

FLYWHEEL (CAST IRON) Parts Diagram

  • Title

1

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 2376288.

$6.49

$

In Stock, Qty 10

0

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 1646264 to 2376287.

$5.49

$

In Stock, only 4 left!

0

2

Honda 19511-Z0J-900

FAN, COOLING

Note: Use from Engine SN 1646264.

$17.99

$

In Stock, only 2 left!

0

3

Honda 28451-Z0J-900

PULLEY, STARTER

Note: Use from Engine SN 1646264.

$5.99

$

In Stock, only 1 left!

0

4

Honda 30500-Z0J-004

COIL ASSY., IGNITION (TOYO)

Note: Use from Engine SN 1646264 to 2419226.

$18.99

$

Usually ships in 3-6 days

0

4

Honda 30500-Z8B-911

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (PHELON)
(Superseded to 30500-Z8B-912)

Note: Use from Engine SN 2419227.

$17.99

$

In Stock, only 2 left!

0

4

Honda 30500-Z8B-912

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (PHELON)

Note: Use from Engine SN 2419227.

$17.99

$

In Stock, only 2 left!

0

5

Honda 31110-Z0J-004

FLYWHEEL
(Superseded to 31110-Z0J-014)

Note: Use from Engine SN 1646264 to 2014511.

$66.99

$

Usually ships in 3-6 days

0

5

Honda 31110-Z0J-014

FLYWHEEL

Note: Use from Engine SN 1646264 to 2014511.

$66.99

$

Usually ships in 3-6 days

0

5

Honda 31110-Z0J-014

FLYWHEEL

Note: Use from Engine SN 2014512.

$66.99

$

Usually ships in 3-6 days

0

8

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

Note: Use from Engine SN 1646264.

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90201-Z0T-800

NUT, SPECIAL (14MM)

Note: Use from Engine SN 1646264.

$2.99

$

In Stock, only 1 left!

0
