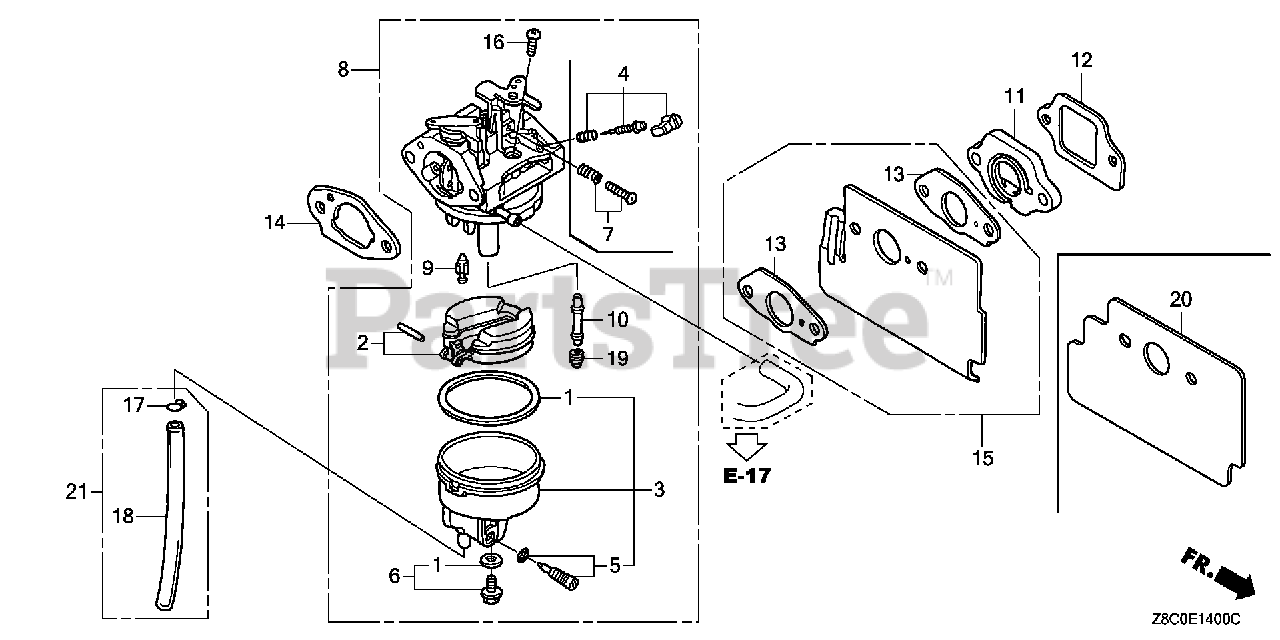

GC190 LA QHAF (GCAAA) - Honda Engine, Made in USA (SN: GCAAA-1496157 - GCAAA-9999999) CARBURETOR Parts Diagram

Engine, Made in USA

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

$12.99

$

In Stock, Qty 5

0

2

Honda 16013-ZL1-003

FLOAT SET

$31.99

$

In Stock, only 2 left!

0

3

Honda 16015-ZL8-003

CHAMBER SET, FLOAT

$34.99

$

Usually ships in 3-6 days

0

4

Honda 16016-Z1A-003

SCREW SET (CARBURETOR NO.)

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16024-124-760

SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z1A-801

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB61K A)
(Superseded to 16100-Z1A-802)

Note: Use up to Engine SN 1988909.

$30.99

$

In Stock, Qty 6

0

8

Honda 16100-Z1A-802

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB61K B)

$30.99

$

In Stock, Qty 6

0

9

Honda 16155-ZL8-013

VALVE, FLOAT

$28.99

$

Usually ships in 3-6 days

0

10

Honda 16166-Z1A-003

NOZZLE, MAIN (CARBURETOR NO.)

$14.99

$

Usually ships in 3-6 days

0

11

Honda 16211-ZL8-000

INSULATOR, CARBURETOR

$4.49

$

In Stock, Qty 20+

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR

$7.99

$

In Stock, Qty 6

0

13

Honda 16221-883-800

GASKET, CARBURETOR

Note: Use up to Engine SN 1632223.

$2.49

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

15

Honda 19650-ZL8-000

GUIDE, AIR

Note: Use up to Engine SN 1632223.

$11.99

$

In Stock, only 1 left!

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6)

$0.99

$

In Stock, only 4 left!

0

17

Honda 95002-02650

CLIP, TUBE (B6.5)

$1.99

$

In Stock, Qty 5

0

18

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X150)

$36.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0620

JET, MAIN (#62)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0650

JET, MAIN (#65)

Note: (Optional).

$12.99

$

In Stock, only 2 left!

0

19

Honda 99101-124-0680

JET, MAIN (#68)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 19651-Z0J-000

GUIDE, AIR

Note: Use from Engine SN 1632224.

$10.99

$

In Stock, only 1 left!

0
