GC190 A VXA (GCAAA) - Honda Engine, Made in USA (SN: GCAAA-1000001 - GCAAA-9999999) CONTROL (4) Parts Diagram

Engine, Made in USA

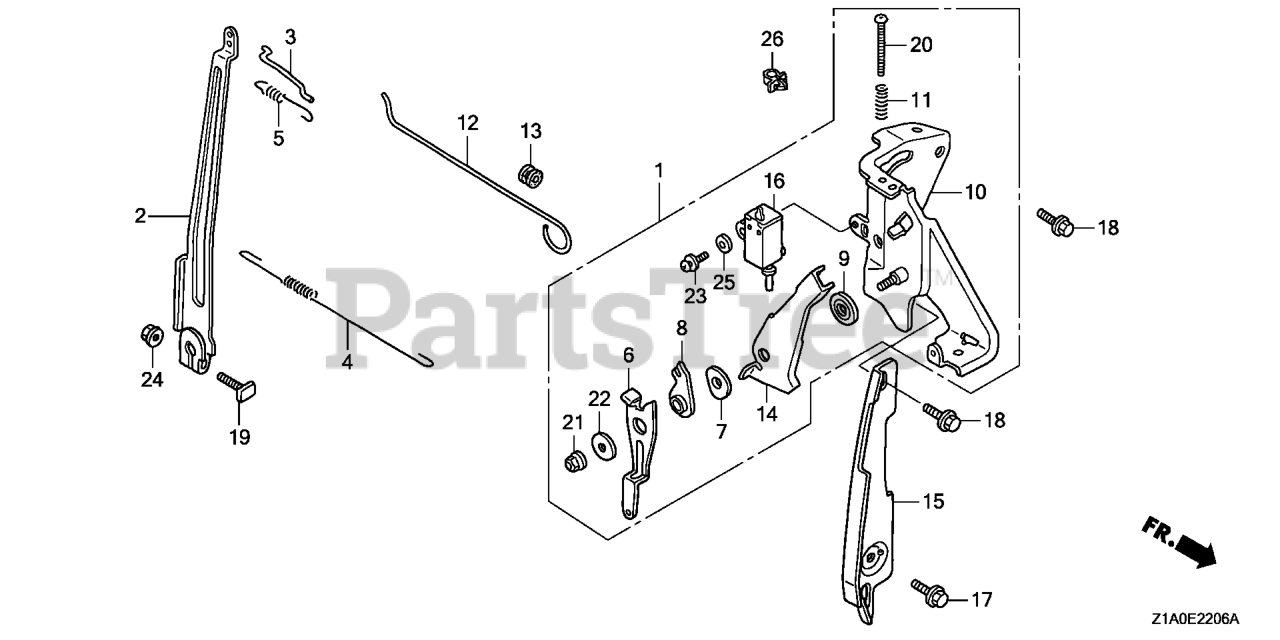

CONTROL (4) Parts Diagram

  • Title

1

Honda 16500-ZL8-850

CONTROL ASSY.

$

$

Not available

2

Honda 16551-ZL8-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

$3.49

$

In Stock, only 2 left!

0

3

Honda 16555-ZL8-000

ROD, GOVERNOR

$2.99

$

In Stock, Qty 5

0

4

Honda 16561-ZL8-810

SPRING, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

5

Honda 16562-ZL8-800

SPRING, THROTTLE RETURN

$2.49

$

In Stock, only 3 left!

0

6

Honda 16571-ZL8-850

LEVER, CONTROL

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16574-ZE1-000

SPRING, LEVER (Honda Code 1427384).

$4.49

$

In Stock, only 1 left!

0

8

Honda 16575-ZL8-000

WASHER, CONTROL LEVER

$2.99

$

In Stock, only 3 left!

0

9

Honda 16578-ZE1-000

SPACER, CONTROL LEVER (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

10

Honda 16580-ZL8-000

BASE, CONTROL

$38.99

$

Usually ships in 3-6 days

0

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$5.49

$

In Stock, Qty 6

0

12

Honda 16611-ZL8-000

ROD, CHOKE CONTROL

$2.99

$

In Stock, only 2 left!

0

13

Honda 16613-893-000

SEE PART DETAILS - PRI; GROMMET, CHOKE ROD

$3.99

$

In Stock, Qty 20+

0

14

Honda 16631-ZL8-850

LEVER, STOP

$12.99

$

Usually ships in 3-6 days

0

15

Honda 19612-Z0L-000

PLATE, SIDE

$17.99

$

In Stock, only 1 left!

0

16

Honda 35120-ZL8-003

SWITCH ASSY., ENGINE STOP (N.O)

$14.99

$

In Stock, only 1 left!

0

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

18

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

19

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

20

Honda 90031-ZL8-850

SCREW, ADJUST

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

22

Honda 90563-355-000

SEE PART DETAILS - PRI; WASHER, WHEEL (6MM) (Honda Code 0326306).

$4.99

$

Usually ships in 3-6 days

0

23

Honda 93892-04012-00

SCREW-WASHER (4X12) (Honda Code 0485946).

$0.99

$

In Stock, Qty 8

0

24

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

25

Honda 94103-04000

WASHER, PLAIN (4MM) (Honda Code 1510361).

$0.99

$

In Stock, Qty 7

0
