GC190 A DHAF (GCAAA) - Honda Engine, Made in USA (SN: GCAAA-1000001 - GCAAA-9999999) FUEL TANK@FUEL PUMP Parts Diagram

Engine, Made in USA

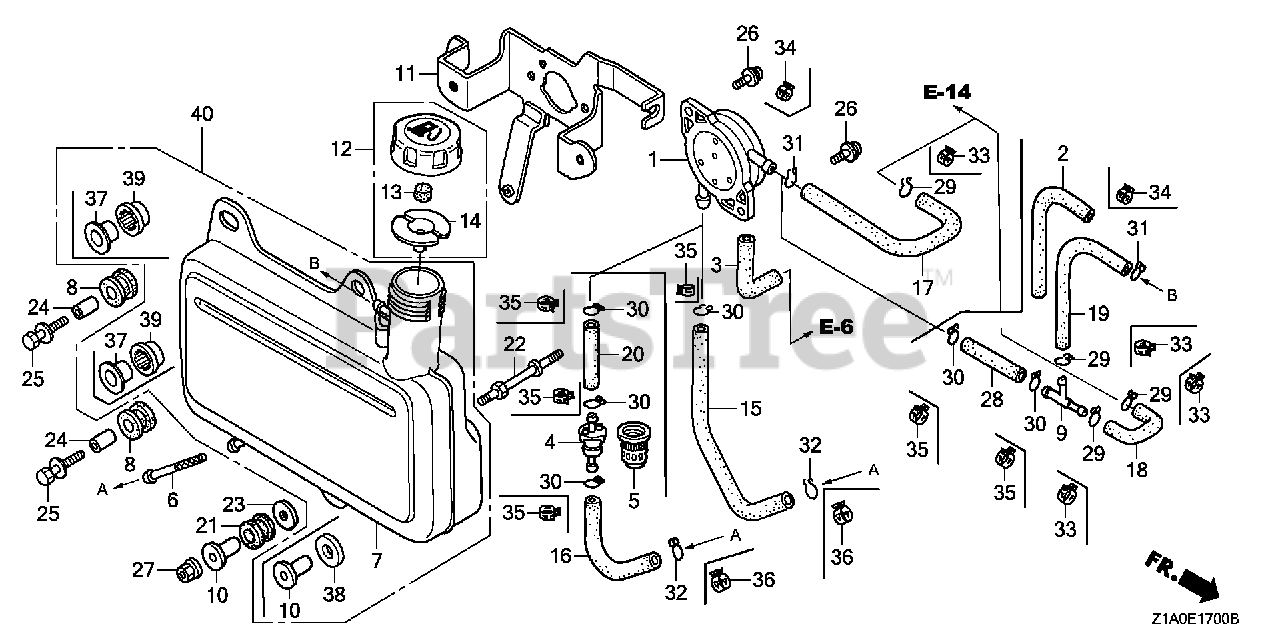

FUEL TANK@FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$92.99

$

Usually ships in 3-6 days

0

3

Honda 16882-ZL8-000

TUBE, DIAPHRAGM

$2.99

$

In Stock, Qty 20+

0

6

Honda 16952-ZA8-800

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

7

Honda 06175-Z8A-800

TANK KIT, FUEL

Note: Use from Engine SN 1562253.

$50.99

$

Usually ships in 3-6 days

0

7

Honda 17511-ZL8-000

TANK, FUEL

Note: Use up to Engine SN 1562252.

$47.99

$

In Stock, only 1 left!

0

8

Honda 17516-ZV0-000

RUBBER B, TANK MOUNTING

$4.49

$

In Stock, only 2 left!

0

10

Honda 17535-KE7-000

COLLAR, FUEL TANK SETTING

$4.99

$

In Stock, only 1 left!

0

11

Honda 17561-Z0J-000

STAY A, FUEL TANK

$7.99

$

In Stock, only 1 left!

0

12

Honda 17620-ZL8-023

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$5.99

$

In Stock, Qty 16

0

13

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

Note: Use up to Engine SN 1468157.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

Note: Use from Engine SN 1468158.

$2.49

$

In Stock, only 4 left!

0

14

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 2507689).

Note: Use from Engine SN 1468158.

$4.99

$

Usually ships in 3-6 days

0

14

Honda 17624-ZL8-013

SEE PART DETAILS - PRI; GASKET, FUEL CAP

Note: Use up to Engine SN 1468157.

$2.99

$

In Stock, Qty 8

0

15

Honda 17701-ZL8-000

SEE PART DETAILS - PRI; TUBE, FUEL TANK

$11.99

$

In Stock, only 1 left!

0

17

Honda 17702-ZL8-000

SEE PART DETAILS - PRI; TUBE, FUEL

$10.99

$

In Stock, only 1 left!

0

21

Honda 80103-MG2-000

CUSHION, RR. FENDER

$4.49

$

In Stock, only 2 left!

0

22

Honda 90041-ZL8-000

BOLT, FUEL TANK STUD (H=30MM)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 90473-896-000

WASHER (6MM)

$2.49

$

In Stock, only 3 left!

0

24

Honda 90501-KA2-640

COLLAR (14X6.1)

$5.49

$

Usually ships in 3-6 days

0

25

Honda 93404-06025-00

BOLT-WASHER (6X25)

$1.49

$

In Stock, only 3 left!

0

26

Honda 93894-05014-00

SCREW-WASHER (5X14)

$1.49

$

In Stock, Qty 6

0

27

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

29

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 1412062.

$2.49

$

In Stock, only 4 left!

0

30

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use up to Engine SN 1412062.

$2.49

$

In Stock, Qty 20+

0

31

Honda 95002-50000

SEE PART DETAILS - PRI; CLIP, TUBE (C9) (Honda Code 0053447).

Note: Use up to Engine SN 1412062.

$1.99

$

In Stock, Qty 20+

0

32

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

Note: Use up to Engine SN 1412062.

$2.49

$

In Stock, Qty 5

0

33

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 1412063.

$2.99

$

In Stock, Qty 6

0

34

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

Note: Use from Engine SN 1412063.

$3.49

$

In Stock, Qty 8

0

35

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Engine SN 1412063.

$3.49

$

In Stock, only 2 left!

0

36

Honda 95002-41200-08

CLAMP, TUBE (D12)

Note: Use from Engine SN 1412063.

$3.49

$

Usually ships in 3-6 days

0
