GC160 LE VXA (GCABE) - Honda Engine, Made in Italy (SN: GCABE-1000001 - GCABE-9999999) OIL ALERT@OIL LEVEL SWITCH Parts Diagram

Engine, Made in Italy

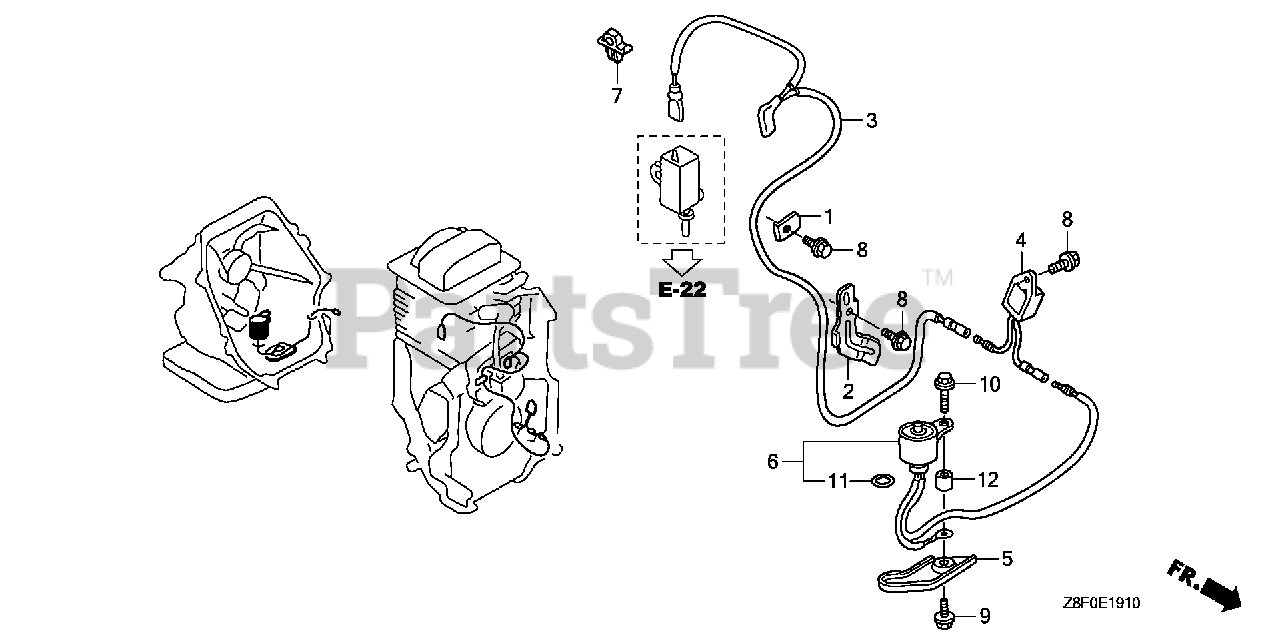

OIL ALERT@OIL LEVEL SWITCH Parts Diagram

  • Title

1

Honda 30548-ZL8-000

CLAMP, STOP SWITCH WIRE

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30549-ZL8-000

CLAMP, WIRE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 32195-ZL8-810

WIRE, STOP SWITCH

$18.99

$

Usually ships in 3-6 days

0

4

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

$53.99

$

In Stock, only 1 left!

0

5

Honda 35419-ZL8-000

PROTECTOR, SWITCH

$9.99

$

Usually ships in 3-6 days

0

6

Honda 35480-ZL8-812

SEE PART DETAILS - PRI; SWITCH, OIL LEVEL
(Superseded to 35480-ZL8-813)

$25.99

$

Usually ships in 3-6 days

0

6

Honda 35480-ZL8-813

SEE PART DETAILS - PRI; SWITCH, OIL LEVEL

$25.99

$

Usually ships in 3-6 days

0

7

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

$2.99

$

In Stock, only 1 left!

0

8

Honda 90013-Z1L-000

BOLT, FLANGE (6X13)

Note: Use from Engine SN 2045722.

$0.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Engine SN 2045721.

$2.49

$

In Stock, Qty 17

0

9

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

10

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0

11

Honda 91302-ZL8-003

O-RING (11.8X2.4)

$1.49

$

In Stock, only 2 left!

0

12

Honda 91501-ZL8-000

COLLAR (6.6X13.8X14.5)

$3.49

$

In Stock, only 2 left!

0
