GC160 LE VXA (GCABE) - Honda Engine, Made in Italy (SN: GCABE-1000001 - GCABE-9999999) FUEL TANK@FUEL PUMP Parts Diagram

Engine, Made in Italy

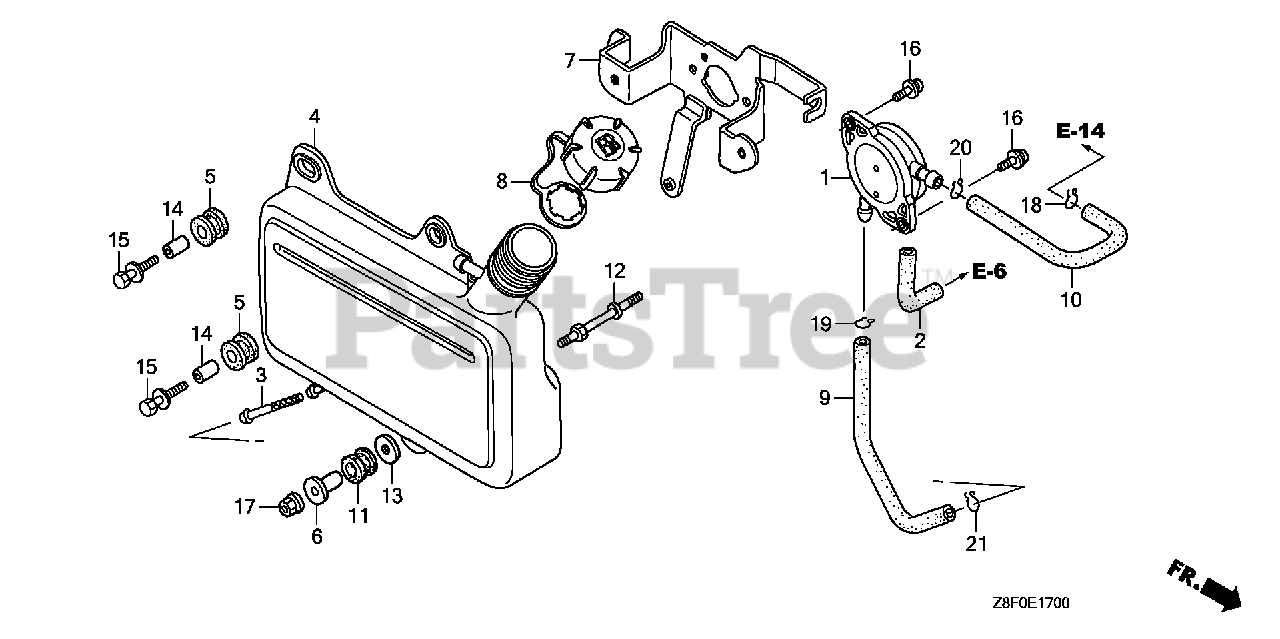

FUEL TANK@FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$99.99

$

Usually ships in 3-6 days

0

2

Honda 16882-ZL8-000

TUBE, DIAPHRAGM

$3.49

$

In Stock, Qty 13

0

3

Honda 16952-ZA8-800

FILTER, FUEL

$9.99

$

In Stock, Qty 20+

0

4

Honda 06175-Z8A-800

TANK KIT, FUEL

$54.99

$

Usually ships in 3-6 days

0

5

Honda 17516-ZV0-000

RUBBER B, TANK MOUNTING

$4.49

$

Usually ships in 3-6 days

0

6

Honda 17535-KE7-000

COLLAR, FUEL TANK SETTING

$4.99

$

In Stock, only 1 left!

0

7

Honda 17561-ZL8-000

STAY A, FUEL TANK

$

$

Not available

8

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

$25.99

$

In Stock, Qty 18

0

9

Honda 17701-ZL8-000

SEE PART DETAILS - PRI; TUBE, FUEL TANK

$13.99

$

In Stock, only 4 left!

0

10

Honda 17702-ZL8-000

SEE PART DETAILS - PRI; TUBE, FUEL

$11.99

$

In Stock, Qty 5

0

11

Honda 80103-MG2-000

CUSHION, RR. FENDER

$4.99

$

In Stock, only 2 left!

0

12

Honda 90041-ZL8-000

BOLT, FUEL TANK STUD (H=30MM)

Note: Use up to Engine SN 2033222.

$5.49

$

Usually ships in 3-6 days

0

12

Honda 90041-Z2M-000

BOLT, STUD (FUEL TANK)

Note: Use from Engine SN 2033223.

$

$

Currently unavailable

13

Honda 90473-896-000

WASHER (6MM)

$2.99

$

In Stock, only 3 left!

0

14

Honda 90501-KA2-640

COLLAR (14X6.1)

$5.99

$

Usually ships in 3-6 days

0

15

Honda 93404-06025-00

BOLT-WASHER (6X25)

$1.49

$

In Stock, only 3 left!

0

16

Honda 93894-05014-00

SCREW-WASHER (5X14)

$1.49

$

In Stock, only 2 left!

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

18

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

19

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

$2.99

$

In Stock, Qty 17

0

20

Honda 95002-50000

SEE PART DETAILS - PRI; CLIP, TUBE (C9) (Honda Code 0053447).

$1.99

$

In Stock, Qty 20+

0

21

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$2.49

$

In Stock, Qty 20+

0
