GC160 LE VXA (GCABE) - Honda Engine, Made in Italy (SN: GCABE-1000001 - GCABE-9999999) FLYWHEEL@IGNITION COIL Parts Diagram

Engine, Made in Italy

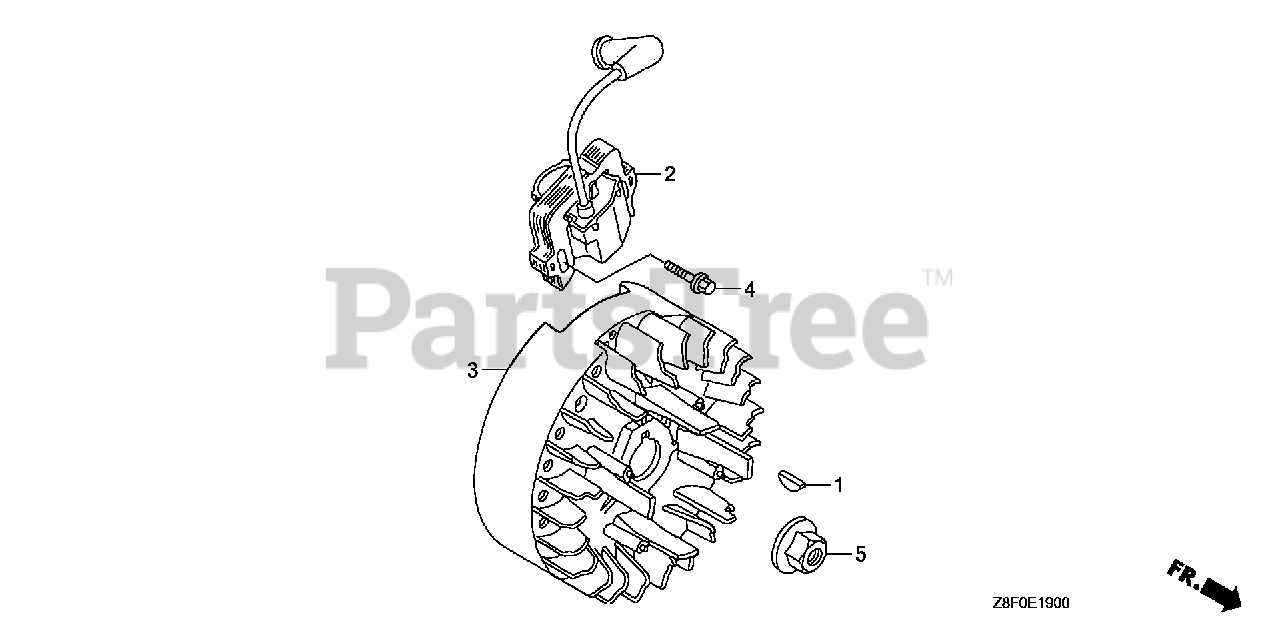

FLYWHEEL@IGNITION COIL Parts Diagram

  • Title
1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$4.99

$

In Stock, Qty 7

0

2

Honda 30500-ZL8-014

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (USE FOR F/W OF TEC) (TEC) Use up to Engine SN 3747197.

$54.99

$

Usually ships in 3-6 days

0

3

Honda 31110-ZL8-004

FLYWHEEL COMP. (TEC) (USE FOR IGN. COIL OF TEC) Use up to Engine SN 3747197.

$98.99

$

Usually ships in 3-6 days

0

4

Honda 90021-Z1L-000

BOLT, FLANGE (6X21)

Note: Use from Engine SN 2051307.

$0.99

$

Usually ships in 3-6 days

0

4

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

Note: Use up to Engine SN 2051306.

$2.99

$

In Stock, only 2 left!

0

5

Honda 90201-Z0T-800

NUT, SPECIAL (14MM) (Honda Code 7348378).

$2.99

$

In Stock, only 1 left!

0

5

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0
