GC160 LAX QHG (GCAHA) - Honda Engine, Made in USA (SN: GCAHA-6025169 - GCAHA-9999999) CRANKCASE COVER Parts Diagram

Engine, Made in USA

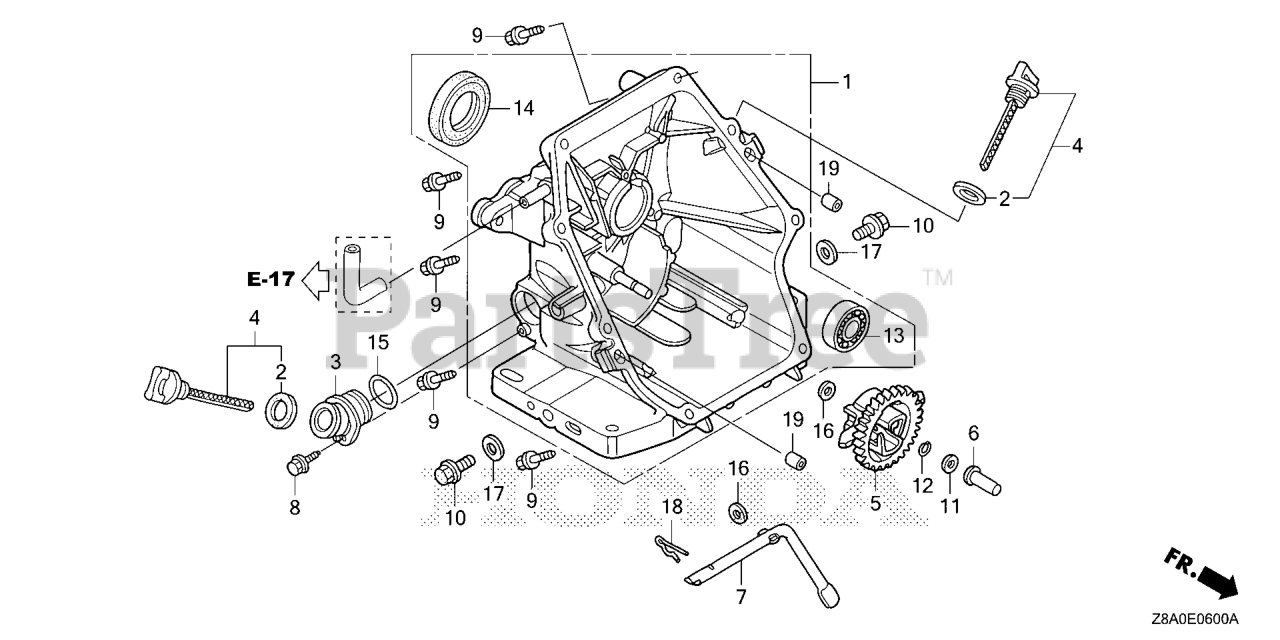

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZL8-601

COVER ASSY., CRANKCASE

$283.99

$

Usually ships in 3-6 days

0

2

Honda 15625-Z2L-801

GASKET, OIL FILLER CAP (NOT AVAILABLE)

$

$

Not available

4

Honda 15650-ZL8-013

SEE PART DETAILS - PRI; GAUGE ASSY., OIL LEVEL

$5.49

$

Usually ships in 3-6 days

0

5

Honda 16510-ZL8-000

GOVERNOR ASSY.

$12.99

$

In Stock, only 1 left!

0

6

Honda 16531-Z8B-000

SLIDER, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16541-Z8A-000

SHAFT, GOVERNOR ARM

$0.99

$

In Stock, Qty 5

0

9

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

10

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$5.49

$

In Stock, Qty 11

0

11

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, only 2 left!

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

14

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6) (Honda Code 5581046).

$7.49

$

In Stock, Qty 15

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

17

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

18

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

19

Honda 90701-Z8B-000

PIN, DOWEL (8X20)

$0.99

$

In Stock, Qty 8

0
