GC160 LA QHAJ (GCAHA) - Honda Engine, Made in USA (SN: GCAHA-3599750 - GCAHA-9999999) CONTROL (2) Parts Diagram

Engine, Made in USA

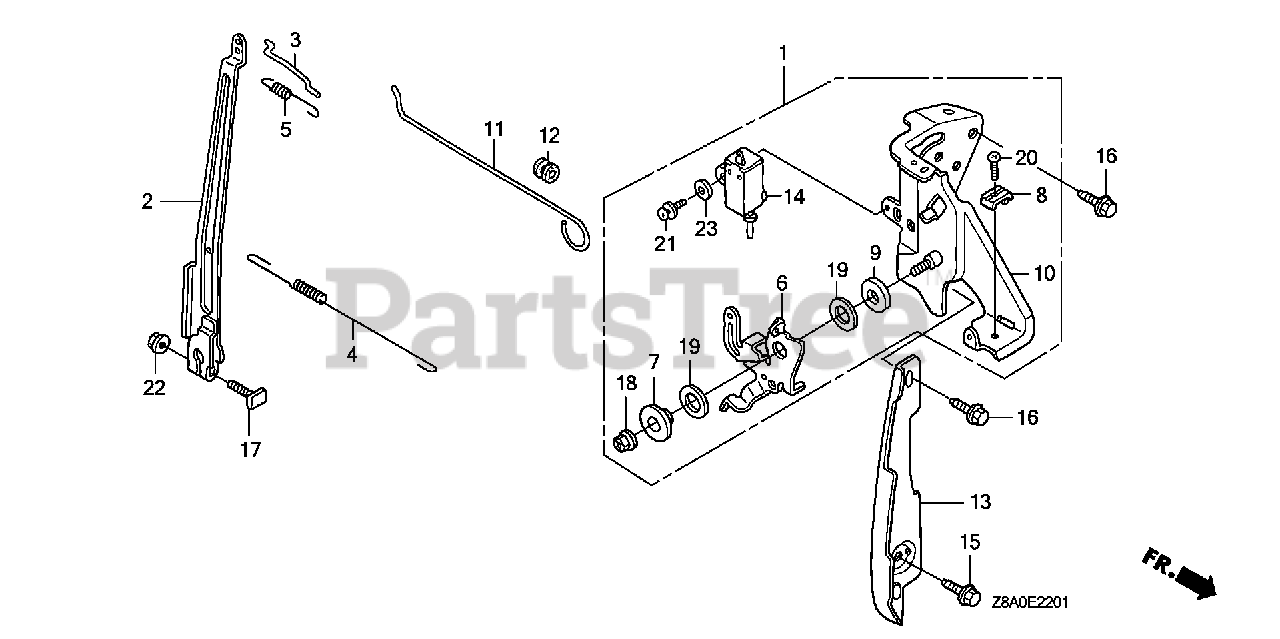

CONTROL (2) Parts Diagram

  • Title
1

Honda 16500-ZL8-800

CONTROL ASSY.

$58.99

$

Usually ships in 3-6 days

0

2

Honda 16551-ZL8-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

$3.49

$

In Stock, only 2 left!

0

3

Honda 16555-ZL8-000

ROD, GOVERNOR

$2.99

$

In Stock, Qty 5

0

4

Honda 16561-Z0J-000

SPRING, GOVERNOR

$0.99

$

In Stock, Qty 5

0

5

Honda 16562-ZL8-800

SPRING, THROTTLE RETURN

$2.49

$

In Stock, only 3 left!

0

6

Honda 16571-ZL8-800

LEVER, CONTROL

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16575-ZL8-800

WASHER, CONTROL LEVER

$2.99

$

Usually ships in 3-6 days

0

8

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$5.49

$

In Stock, only 1 left!

0

9

Honda 16578-ZL8-800

SPACER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

10

Honda 16580-ZL8-000

BASE, CONTROL

$38.99

$

Usually ships in 3-6 days

0

11

Honda 16611-ZL8-000

ROD, CHOKE CONTROL

$2.99

$

In Stock, only 2 left!

0

12

Honda 16613-893-000

SEE PART DETAILS - PRI; GROMMET, CHOKE ROD

$3.99

$

In Stock, Qty 20+

0

13

Honda 19612-Z0L-000

PLATE, SIDE

$17.99

$

In Stock, only 1 left!

0

14

Honda 35120-ZL8-003

SWITCH ASSY., ENGINE STOP (N.O)

$14.99

$

In Stock, only 1 left!

0

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

16

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

17

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

18

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

19

Honda 90452-KG8-000

WASHER (12.5MM)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

21

Honda 93892-04012-00

SCREW-WASHER (4X12) (Honda Code 0485946).

$0.99

$

In Stock, Qty 8

0

22

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

23

Honda 94103-04000

WASHER, PLAIN (4MM) (Honda Code 1510361).

$0.99

$

In Stock, Qty 7

0
