GC160 LA QHAF (GCAHA) - Honda Engine, Made in USA (SN: GCAHA-3599750 - GCAHA-6025168) CARBURETOR Parts Diagram

Engine, Made in USA

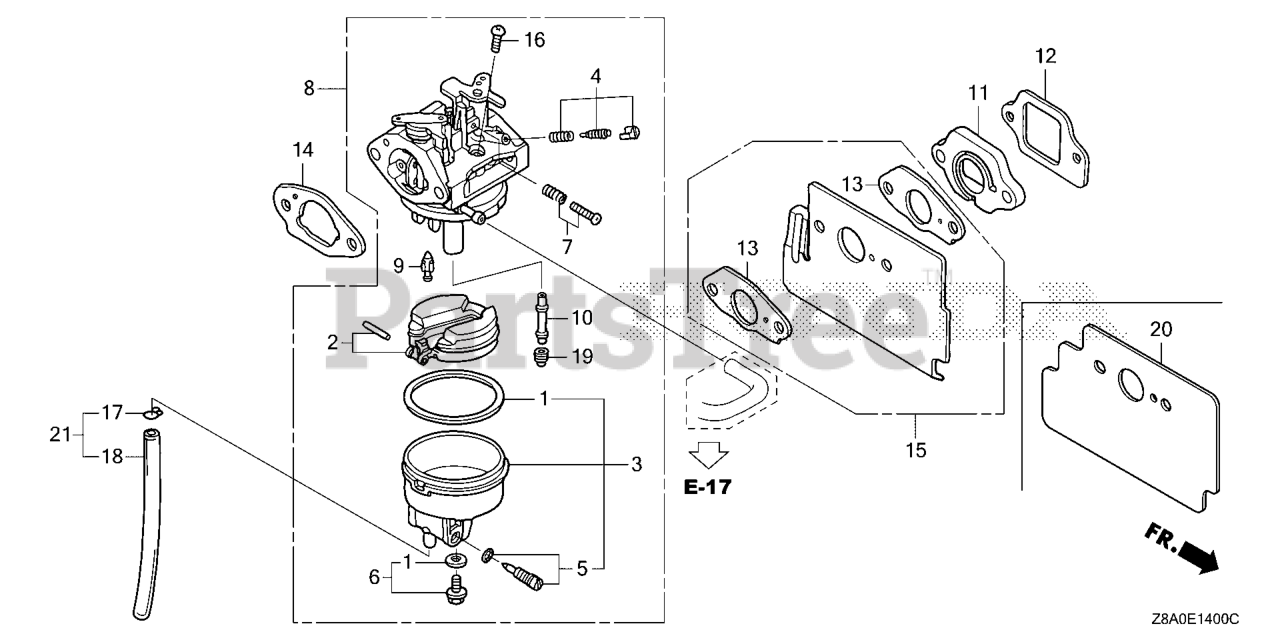

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$13.99

$

In Stock, Qty 15

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$33.99

$

In Stock, only 2 left!

0

3

Honda 16015-ZL8-003

CHAMBER SET, FLOAT

$35.99

$

Usually ships in 3-6 days

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

Note: Use from Engine SN BB61J A to BB61J A.

$13.99

$

Usually ships in 3-6 days

0

5

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

Note: Use from Engine SN BB61J A to BB61J A.

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z0J-013

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB61J B)

Note: Use up to Engine SN 3800268.

$45.99

$

In Stock, only 3 left!

0

8

Honda 16100-Z0J-802

CARBURETOR ASSY. (BB65P A)

Note: Use from Engine SN 3800269 to 5505562.

$30.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z8A-801

CARBURETOR ASSY

Note: Use from Engine SN 5505563.

$24.99

$

Usually ships in 3-6 days

0

9

Honda 16155-ZL8-013

VALVE, FLOAT (CARBURETOR NO.)

$29.99

$

Usually ships in 3-6 days

0

10

Honda 16166-ZL8-003

NOZZLE, MAIN (CARBURETOR NO.)

Note: Use up to Engine SN BB65P A.

$25.99

$

Usually ships in 3-6 days

0

10

Honda 16166-Z8A-801

NOZZLE, MAIN

Note: Use from Engine SN BB65T A.

$10.99

$

Usually ships in 3-6 days

0

11

Honda 16211-ZL8-000

INSULATOR, CARBURETOR (Honda Code 5580238).

Note: Use up to Engine SN 5557123.

$4.49

$

In Stock, Qty 20+

0

11

Honda 16211-Z8B-000

INSULATOR, CARBURETOR

Note: Use from Engine SN 5557124.

$3.99

$

In Stock, Qty 10

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.99

$

In Stock, Qty 20+

0

13

Honda 16221-883-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: Use up to Engine SN 3716002.

$2.99

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR (Honda Code 5580253). (CHOKE SIDE)

$2.49

$

In Stock, Qty 20+

0

15

Honda 19650-ZL8-000

GUIDE, AIR

Note: Use up to Engine SN 3716002.

$12.99

$

In Stock, only 4 left!

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 2 left!

0

17

Honda 95002-02650

SEE PART DETAILS - PRI; CLIP, TUBE (B6.5)

$1.99

$

In Stock, only 4 left!

0

18

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

Note: Use up to Engine SN 5634357.

$36.99

$

Usually ships in 3-6 days

0

19

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474). (CARBURETOR NO.)

Note: (Optional)

$12.99

$

In Stock, Qty 5

0

19

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional)

$11.99

$

In Stock, only 2 left!

0

19

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

$13.99

$

In Stock, only 2 left!

0

20

Honda 19651-Z0J-000

GUIDE, AIR

Note: Use from Engine SN 3716003.

$11.99

$

In Stock, Qty 9

0

21

Honda 91410-Z0J-000

TUBE ASSY., DRAIN

Note: Use from Engine SN 5634358.

$1.49

$

Usually ships in 3-6 days

0
