GC160 LA QHA2 (GCAHA) - Honda Engine, Made in USA (SN: GCAHA-3599750 - GCAHA-5999999) FUEL TANK@FUEL PUMP Parts Diagram

Engine, Made in USA

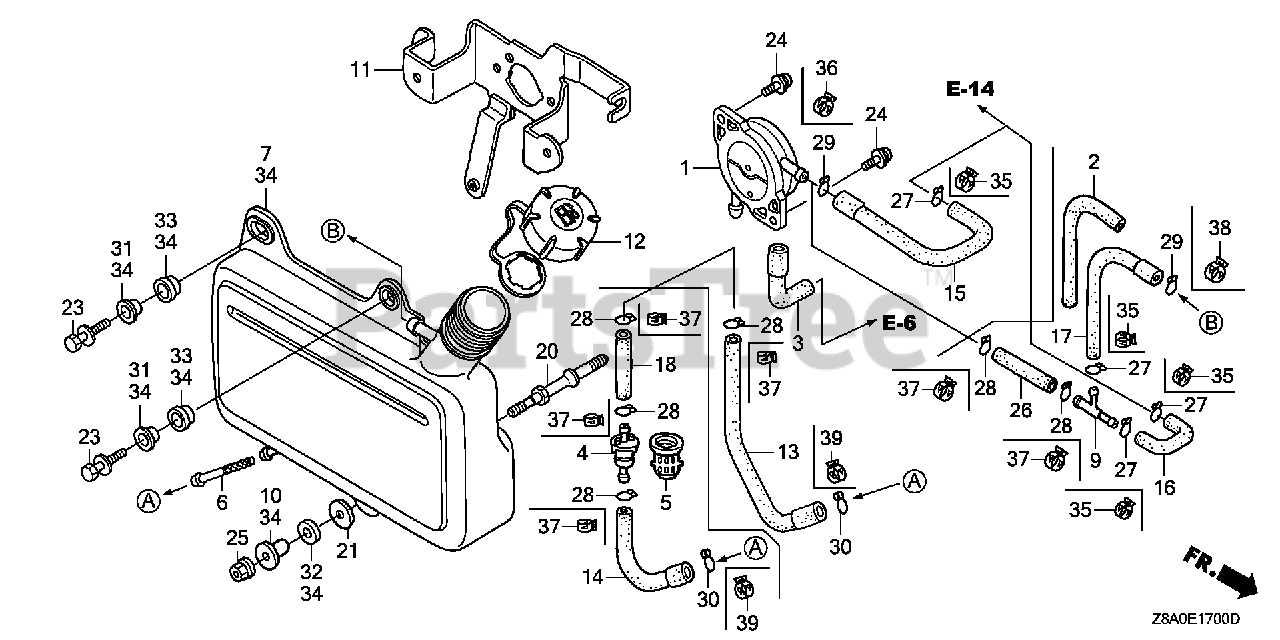

FUEL TANK@FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 5

0

3

Honda 16882-ZL8-000

TUBE, DIAPHRAGM

$2.99

$

In Stock, only 2 left!

0

4

Honda 16910-ZV4-015

SEE PART DETAILS - PRI; FILTER, FUEL

$18.99

$

In Stock, only 1 left!

0

5

Honda 16915-ZV4-000

SUSPENSION, STRAINER

$8.99

$

Usually ships in 3-6 days

0

7

Honda 17511-Z8A-811

TANK, FUEL

Note: Use from Engine SN 5501351.

$26.99

$

Usually ships in 3-6 days

0

9

Honda 17519-ZL8-800

JOINT, FUEL TUBE

$17.99

$

Usually ships in 3-6 days

0

10

Honda 17535-KE7-000

COLLAR, FUEL TANK SETTING

$4.99

$

In Stock, only 1 left!

0

11

Honda 17561-Z0J-000

STAY A, FUEL TANK

$7.99

$

In Stock, only 1 left!

0

12

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, only 3 left!

0

14

Honda 17701-ZL8-800

TUBE, FUEL TANK

Note: Use up to Engine SN 5501350.

$5.99

$

Usually ships in 3-6 days

0

14

Honda 17701-Z8A-801

TUBE, FUEL TANK (FKM)

Note: Use from Engine SN 5501351.

$

$

Not available

16

Honda 17702-ZL8-800

SEE PART DETAILS - PRI; TUBE, FUEL

Note: Use up to Engine SN 5501350.

$8.49

$

In Stock, only 4 left!

0

16

Honda 17702-Z8A-801

TUBE, FUEL (FKM)

Note: Use from Engine SN 5501351.

$

$

Not available

17

Honda 17703-ZL8-800

SEE PART DETAILS - PRI; TUBE, FUEL RETURN

Note: Use up to Engine SN 5501350.

$6.49

$

Usually ships in 3-6 days

0

17

Honda 17703-Z8A-811

TUBE, FUEL RETURN (FKM)
(Superseded to 17703-Z8A-812)

Note: Use from Engine SN 5501351.

$8.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZL8-800

SEE PART DETAILS - PRI; TUBE, FUEL PUMP

Note: Use up to Engine SN 5501350.

$4.49

$

Usually ships in 3-6 days

0

18

Honda 17704-Z8A-801

TUBE, FUEL PUMP (FKM)

Note: Use from Engine SN 5501351.

$

$

Not available

20

Honda 90041-ZL8-000

BOLT, FUEL TANK STUD (H=30MM)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90473-896-000

WASHER (6MM)

$2.49

$

In Stock, only 3 left!

0

23

Honda 93404-06025-00

BOLT-WASHER (6X25)

$1.49

$

In Stock, only 3 left!

0

24

Honda 93894-05014-00

SCREW-WASHER (5X14)

$1.49

$

In Stock, Qty 6

0

25

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

26

Honda 91425-Z8A-801

TUBE, FUEL (5.3X33) (FKM)

Note: Use from Engine SN 5501351.

$

$

Not available

26

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (Honda Code 5338587). (5.5X150)

Note: Use up to Engine SN 5501350.

$70.99

$

In Stock, only 1 left!

0

27

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 5501350.

$2.49

$

In Stock, Qty 11

0

28

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use up to Engine SN 5501350.

$2.49

$

Usually ships in 3-6 days

0

29

Honda 95002-50000

SEE PART DETAILS - PRI; CLIP, TUBE (C9) (Honda Code 0053447).

Note: Use up to Engine SN 5501350.

$1.99

$

In Stock, only 3 left!

0

30

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

Note: Use up to Engine SN 5501350.

$2.49

$

In Stock, Qty 9

0

31

Honda 17518-Z8A-800

COLLAR, TANK SET

Note: Use from Engine SN 5500002.

$1.49

$

Usually ships in 3-6 days

0

32

Honda 17532-Z8A-800

RUBBER A, TANK MOUNTING

Note: Use from Engine SN 5500002.

$0.99

$

In Stock, Qty 10

0

33

Honda 17533-Z8A-800

RUBBER B, TANK MOUNTING

Note: Use from Engine SN 5500002.

$0.99

$

In Stock, Qty 10

0

34

Honda 06175-Z8A-810

TANK KIT, FUEL

Note: Use up to Engine SN 5501350.

$49.99

$

Usually ships in 3-6 days

0

35

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 5501351.

$2.99

$

In Stock, Qty 10

0

35

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 10

0

37

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Engine SN 5501351.

$3.49

$

In Stock, Qty 12

0

38

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

Note: Use from Engine SN 5501351.

$3.49

$

In Stock, Qty 7

0

39

Honda 95002-41200-08

CLAMP, TUBE (D12)

Note: Use from Engine SN 5501351.

$3.49

$

In Stock, only 1 left!

0
