GC160 A VXA (GCAHA) - Honda Engine, Made in USA (SN: GCAHA-1000001 - GCAHA-3599749) CONTROL (3) Parts Diagram

Engine, Made in USA

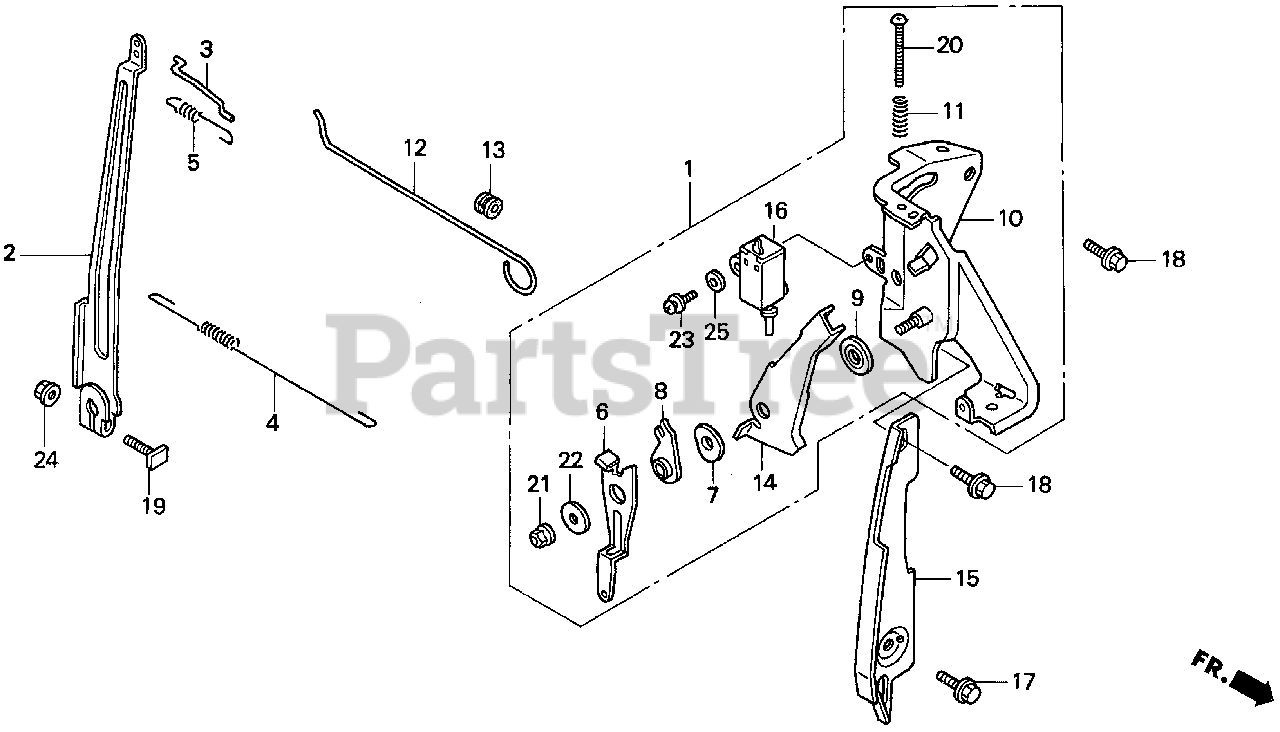

CONTROL (3) Parts Diagram

  • Title

1

Honda 16500-ZL8-850

CONTROL ASSY.

Note: (Honda Code 5611090).

$

$

Not available

2

Honda 16551-ZL8-000

ARM, GOVERNOR
(Superseded to 16551-ZL8-010)

Note: (Honda Code 5611132).

$3.49

$

In Stock, only 2 left!

0

3

Honda 16555-ZL8-000

ROD, GOVERNOR

Note: (Honda Code 5611140).

$2.99

$

In Stock, Qty 6

0

4

Honda 16561-ZL8-810

SPRING, GOVERNOR

Note: (Honda Code 5611165).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16562-ZL8-800

SPRING, THROTTLE RETURN

Note: (Honda Code 5927033).

$2.49

$

In Stock, Qty 6

0

6

Honda 16571-ZL8-850

LEVER, CONTROL

Note: (Honda Code 5611207).

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16574-ZE1-000

SPRING, LEVER

Note: (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

8

Honda 16575-ZL8-000

WASHER, CONTROL LEVER

Note: (Honda Code 5611215).

$2.49

$

In Stock, only 3 left!

0

9

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

Note: (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

10

Honda 16580-ZL8-000

BASE, CONTROL

Note: (Honda Code 5611256).

$36.99

$

Usually ships in 3-6 days

0

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, Qty 7

0

12

Honda 16611-ZL8-000

ROD, CHOKE CONTROL

Note: (Honda Code 5611272).

$2.49

$

In Stock, only 2 left!

0

13

Honda 16613-893-000

GROMMET, CHOKE ROD

Note: (Honda Code 0788596).

$3.99

$

In Stock, only 2 left!

0

14

Honda 16631-ZL8-850

LEVER, STOP

Note: (Honda Code 5611280).

$12.99

$

Usually ships in 3-6 days

0

15

Honda 19612-ZL8-000

PLATE, SIDE

Note: (Honda Code 5656020).

$

$

Not available

16

Honda 35120-ZL8-003

SWITCH ASSY., ENGINE STOP (N.O)

Note: (Honda Code 5611520).

$14.99

$

In Stock, only 1 left!

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

18

Honda 90014-952-000

BOLT, FLANGE (6X14)

Note: (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

19

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

20

Honda 90031-ZL8-850

SCREW, ADJUST

Note: (Honda Code 5611678).

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

Note: (Honda Code 1410182).

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90563-355-000

WASHER, WHEEL (6MM)

Note: (Honda Code 0326306).

$4.99

$

Usually ships in 3-6 days

0

23

Honda 93892-04012-00

SCREW-WASHER (4X12)

Note: (Honda Code 0485946).

$0.99

$

In Stock, Qty 8

0

24

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

25

Honda 94103-04000

WASHER, PLAIN (4MM)

Note: (Honda Code 1510361).

$0.99

$

In Stock, Qty 7

0
