GC160 A QEA2 (GCAHA) - Honda Engine, Made in USA (SN: GCAHA-8000001 - GCAHA-9999999) FUEL TANK + FUEL PUMP Parts Diagram

Engine, Made in USA

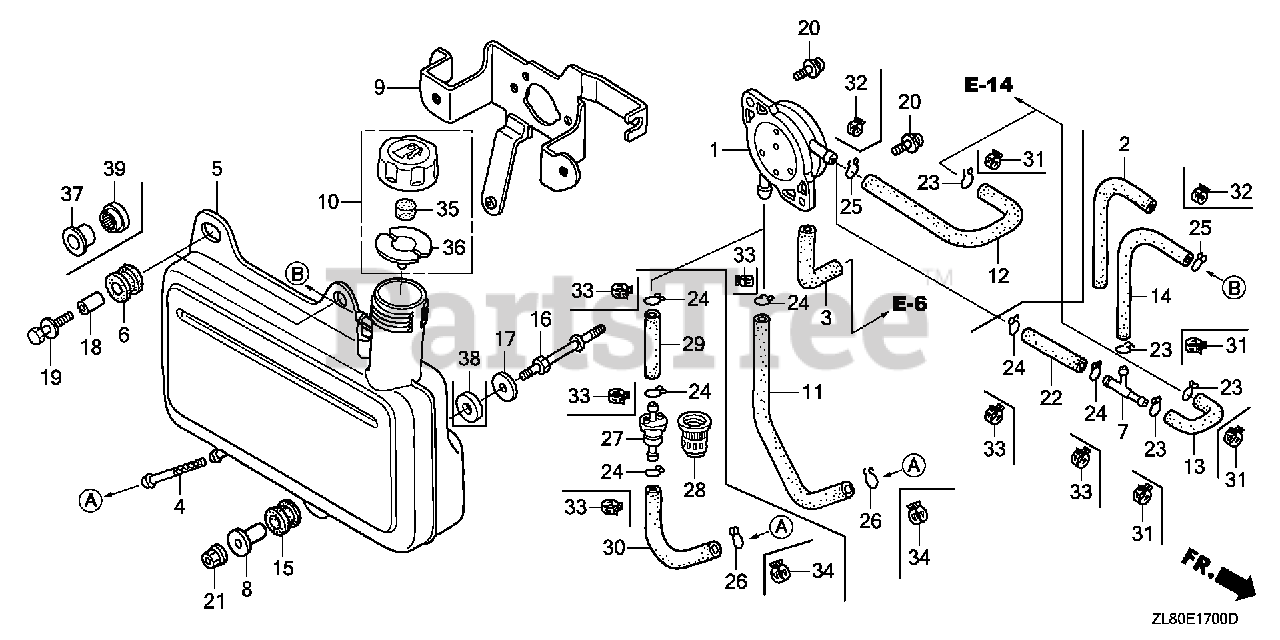

FUEL TANK + FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL (MSDS)

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 5

0

3

Honda 16882-ZL8-000

TUBE, DIAPHRAGM

$2.99

$

In Stock, only 2 left!

0

5

Honda 17511-ZL8-800

TANK, FUEL

$46.99

$

In Stock, only 1 left!

0

6

Honda 17516-ZV0-000

RUBBER B, TANK MOUNTING

$4.49

$

In Stock, only 2 left!

0

7

Honda 17519-ZL8-800

JOINT, FUEL TUBE

$17.99

$

Usually ships in 3-6 days

0

8

Honda 17535-KE7-000

COLLAR, FUEL TANK SETTING

$4.99

$

In Stock, only 1 left!

0

9

Honda 17561-ZL8-000

STAY A, FUEL TANK

$

$

Not available

10

Honda 17620-ZL8-013

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZL8-023)

$5.99

$

In Stock, Qty 16

0

10

Honda 17620-ZL8-023

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$5.99

$

In Stock, Qty 16

0

13

Honda 17702-ZL8-800

TUBE, FUEL

$8.49

$

In Stock, only 4 left!

0

14

Honda 17703-ZL8-800

TUBE, FUEL RETURN

$6.49

$

Usually ships in 3-6 days

0

15

Honda 80103-MG2-000

CUSHION, RR. FENDER

$4.49

$

In Stock, only 2 left!

0

16

Honda 90041-ZL8-000

BOLT, FUEL TANK STUD (H=30MM)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90473-896-000

WASHER (6MM)

$2.49

$

In Stock, only 3 left!

0

18

Honda 90501-KA2-640

COLLAR (14X6.1)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 93404-06025-00

BOLT-WASHER (6X25)

$1.49

$

In Stock, only 3 left!

0

20

Honda 93894-05014-00

SCREW-WASHER (5X14)

$1.49

$

In Stock, Qty 6

0

21

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

22

Honda 91425-Z0J-801

TUBE, FUEL (5.3X33) (FKM) (NOT AVAILABLE)

Note: Use from Engine SN 3327392.

$

$

Currently unavailable

22

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X33)

Note: Use up to Engine SN 3327391.

$70.99

$

In Stock, only 1 left!

0

23

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 3327391.

$2.49

$

In Stock, Qty 11

0

24

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 3327391.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 95002-50000

CLIP, TUBE (C9)

Note: Use up to Engine SN 3327391.

$1.99

$

In Stock, only 3 left!

0

26

Honda 95002-70000

CLIP, TUBE (C11)

Note: Use up to Engine SN 3327391.

$2.49

$

In Stock, Qty 9

0

27

Honda 16910-ZV4-015

FILTER, FUEL

$18.99

$

In Stock, only 1 left!

0

28

Honda 16915-ZV4-000

SUSPENSION, STRAINER

$8.99

$

Usually ships in 3-6 days

0

29

Honda 17704-ZL8-800

TUBE, FUEL PUMP

$4.49

$

Usually ships in 3-6 days

0

30

Honda 17701-ZL8-800

TUBE, FUEL TANK

Note: Use up to Engine SN 3327391.

$5.99

$

Usually ships in 3-6 days

0

30

Honda 17701-Z0J-801

TUBE, FUEL TANK (FKM) (NOT AVAILABLE)

Note: Use from Engine SN 3327392.

$

$

Currently unavailable

31

Honda 95002-40800-08

CLAMP, TUBE (D8)

Note: Use from Engine SN 3327392.

$2.99

$

In Stock, Qty 10

0

32

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

Note: Use from Engine SN 3327392.

$3.49

$

In Stock, Qty 8

0

33

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Engine SN 3327392.

$3.49

$

In Stock, Qty 12

0

34

Honda 95002-41200-08

CLAMP, TUBE (D12)

Note: Use from Engine SN 3327392.

$3.49

$

In Stock, only 1 left!

0

35

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

$1.99

$

Usually ships in 3-6 days

0

36

Honda 17624-ZL8-013

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$2.99

$

In Stock, Qty 8

0
