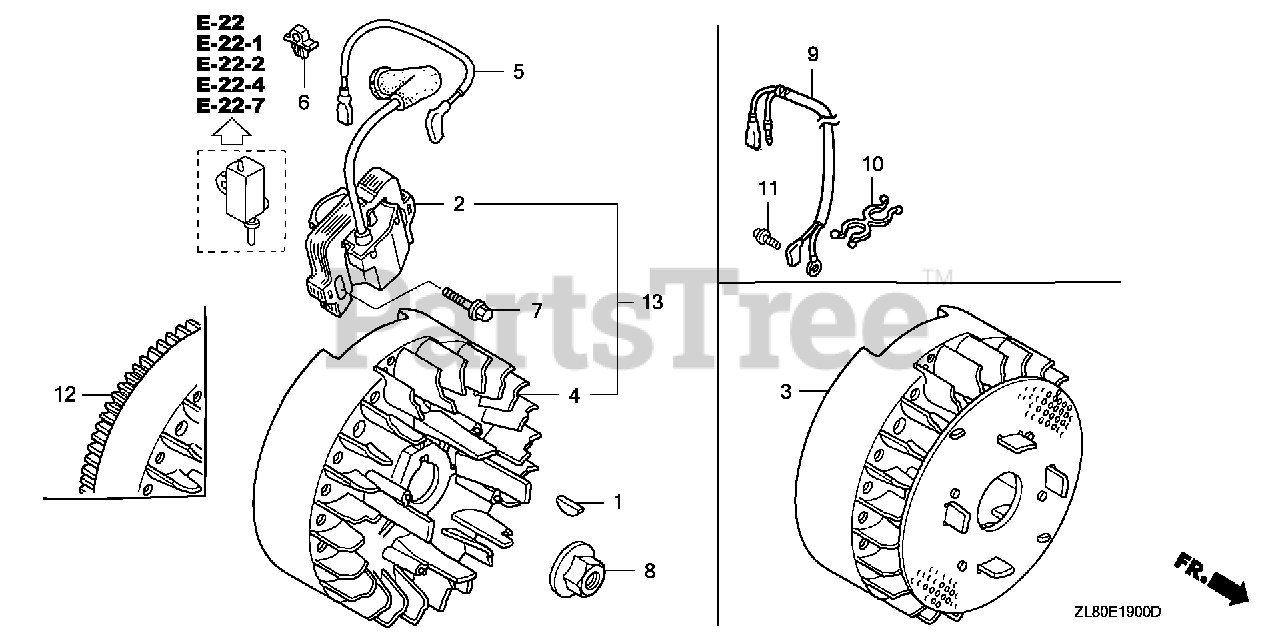

GC160 A QEA (GCAHA) - Honda Engine, Made in USA (SN: GCAHA-8000001 - GCAHA-9999999) FLYWHEEL@IGNITION COIL Parts Diagram

Engine, Made in USA

FLYWHEEL@IGNITION COIL Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$5.49

$

In Stock, only 4 left!

0

2

Honda 30500-Z0J-003

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (PHELON) (USE FOR F/W OF PHELON)
(Superseded to 30500-Z8B-903)

$23.99

$

Usually ships in 3-6 days

0

2

Honda 30500-Z8B-901

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (PHELON)
(Superseded to 30500-Z8B-903)

$23.99

$

Usually ships in 3-6 days

0

2

Honda 30500-Z8B-903

COIL ASSY., IGNITION (PHELON)

$23.99

$

Usually ships in 3-6 days

0

5

Honda 32195-Z0J-000

WIRE, STOP SWITCH

Note: Use up to Engine SN 3754930.

$6.49

$

Usually ships in 3-6 days

0

6

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 3754930.

$2.99

$

In Stock, only 1 left!

0

7

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

Note: Use up to Engine SN 3754930.

$2.99

$

In Stock, only 2 left!

0

8

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

Note: Use up to Engine SN 3754930.

$7.99

$

In Stock, only 1 left!

0

12

Honda 31110-Z0L-831

FLYWHEEL COMP.(PHELON) (USE FOR IGN. COIL OF PHELON) (USE FOR PHELON IGNITION COIL)
(Superseded to 31110-Z0L-832)

Note: Use up to Engine SN 8003104.

$

$

Not available

12

Honda 31110-Z0L-832

FLYWHEEL COMP. (PHELON) (USE FOR IGN. COIL OF PHELON) (NA USE ALT:06311-Z0J-930)

Note: Use from Engine SN 8003105.

$

$

Not available
