GC160 A DHAF (GCAHA) - Honda Engine, Made in USA (SN: GCAHA-1000001 - GCAHA-3599749) CONTROL (7) Parts Diagram

Engine, Made in USA

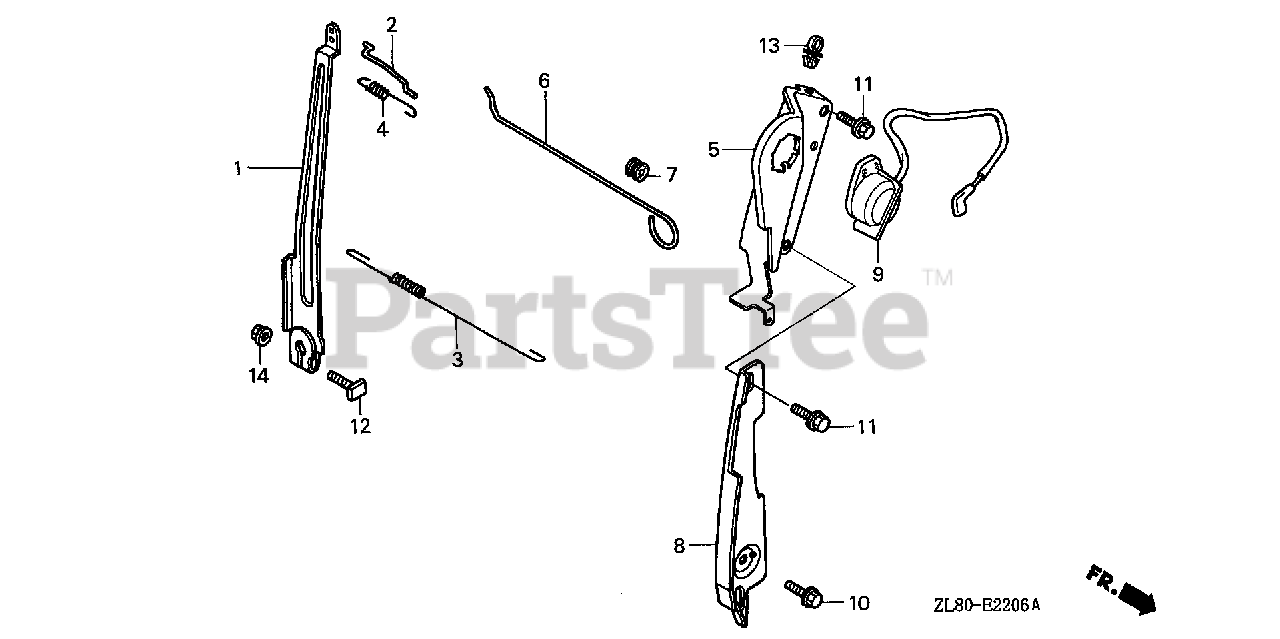

CONTROL (7) Parts Diagram

  • Title

1

Honda 16551-ZL8-010

ARM, GOVERNOR

$3.49

$

In Stock, only 2 left!

0

2

Honda 16555-ZL8-000

ROD, GOVERNOR

$2.99

$

In Stock, Qty 6

0

3

Honda 16561-Z0J-000

SPRING, GOVERNOR

$0.99

$

In Stock, Qty 6

0

4

Honda 16562-ZL8-800

SPRING, THROTTLE RETURN

$2.49

$

In Stock, Qty 6

0

5

Honda 16581-Z0J-800

BASE, CONTROL
(Superseded to 16581-Z0J-801)

$2.49

$

In Stock, only 4 left!

0

6

Honda 16611-ZL8-000

ROD, CHOKE CONTROL

$2.49

$

In Stock, only 2 left!

0

7

Honda 16613-893-000

SEE PART DETAILS - PRI; GROMMET, CHOKE ROD

$3.99

$

In Stock, only 2 left!

0

8

Honda 19612-Z0L-000

PLATE, SIDE

$16.99

$

In Stock, only 1 left!

0

9

Honda 35120-Z0J-801

SWITCH ASSY., ENGINE STOP

$10.99

$

In Stock, only 1 left!

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

12

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

13

Honda 90681-959-003

CLIP A, CABLE (3.8MM BLACK) (NIFCO)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
