GC135 VXP5 (GCAJ) - Honda Engine, Made in Japan (SN: GCAJ-1000001 - GCAJ-9999999) OTHER PARTS Parts Diagram

Engine, Made in Japan

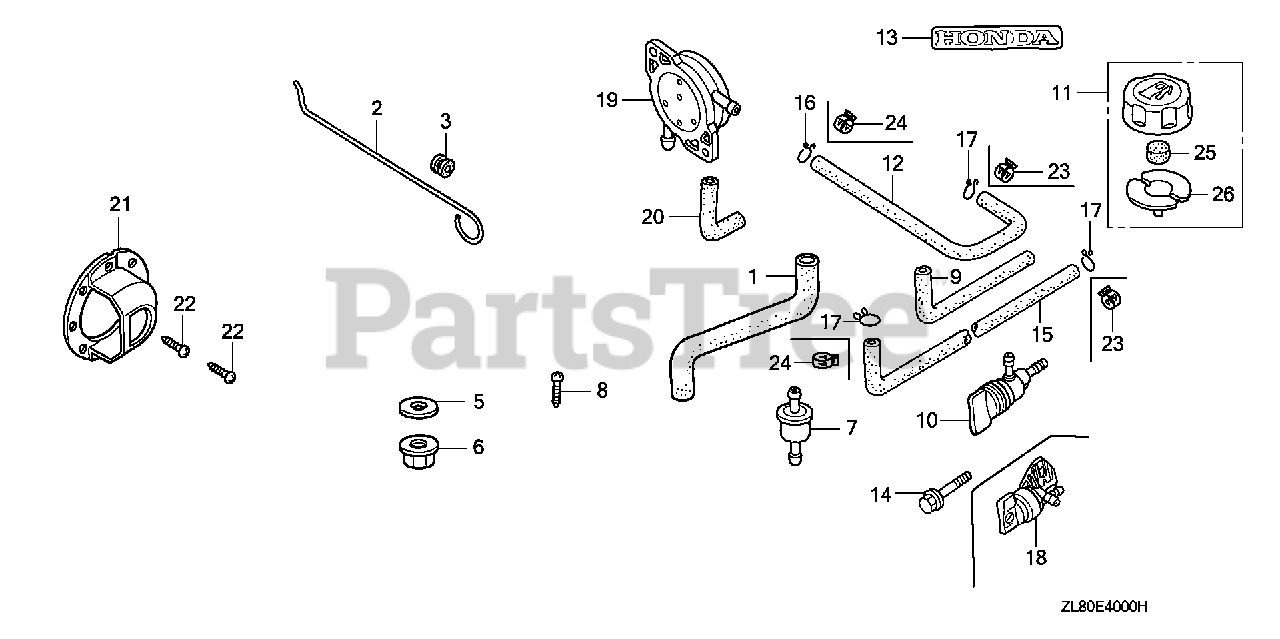

OTHER PARTS Parts Diagram

  • Title

2

Honda 16611-ZL8-000

ROD, CHOKE CONTROL

Note: Use up to Engine SN 1213955.

$2.49

$

In Stock, only 2 left!

0

3

Honda 16613-893-000

SEE PART DETAILS - PRI; GROMMET, CHOKE ROD

$3.99

$

In Stock, only 2 left!

0

6

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

7

Honda 16910-GB2-005

STRAINER, FUEL

Note: Use up to Engine SN 1213955.

$16.99

$

In Stock, only 2 left!

0

9

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

Note: Use from Engine SN 1213956.

$4.99

$

In Stock, Qty 5

0

10

Honda 04103-Z0L-000

SEE PART DETAILS - PRI; PETCOCK ASSY.

Note: Use from Engine SN 1213956 to 1285514.

$47.99

$

Usually ships in 3-6 days

0

10

Honda 16950-ZG9-M03

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 04103-Z0L-000)

Note: Use from Engine SN 1213956 to 1285514.

$47.99

$

Usually ships in 3-6 days

0

11

Honda 17620-ZL8-013

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZL8-023)

Note: Use from Engine SN 1213956.

$5.99

$

In Stock, Qty 16

0

11

Honda 17620-ZL8-023

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

Note: Use from Engine SN 1213956.

$5.99

$

In Stock, Qty 16

0

12

Honda 17702-ZL8-000

TUBE, FUEL

Note: Use from Engine SN 1213956.

$10.99

$

Usually ships in 3-6 days

0

13

Honda 87531-VF9-780

MARK, HONDA

Note: Use from Engine SN 1213956 to 1285514.

$

$

Not available

13

Honda 87531-VF9-781

MARK, HONDA

Note: Use from Engine SN 1285515.

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 1213956.

$1.99

$

In Stock, Qty 20+

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

Note: Use from Engine SN 1213956.

$54.99

$

In Stock, Qty 7

0

16

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use from Engine SN 1213956.

$2.49

$

In Stock, Qty 10

0

17

Honda 95002-50000

CLIP, TUBE (C9)

Note: Use from Engine SN 1213956.

$1.99

$

In Stock, only 2 left!

0

18

Honda 16950-ZM0-003

PETCOCK ASSY.

Note: Use from Engine SN 1285515.

$9.49

$

In Stock, only 3 left!

0

25

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

Note: Use from Engine SN 1213956.

$1.99

$

Usually ships in 3-6 days

0

26

Honda 17624-ZL8-013

SEE PART DETAILS - PRI; GASKET, FUEL CAP

Note: Use from Engine SN 1213956.

$2.99

$

In Stock, Qty 8

0
