GC-VRII (06374) - Scag Grass Catcher for SVRII Mower (SN: S9800001 - S9899999) GC-VRII SUPPORT FRAME COMPONENTS Parts Diagram

Grass Catcher for SVRII Mower

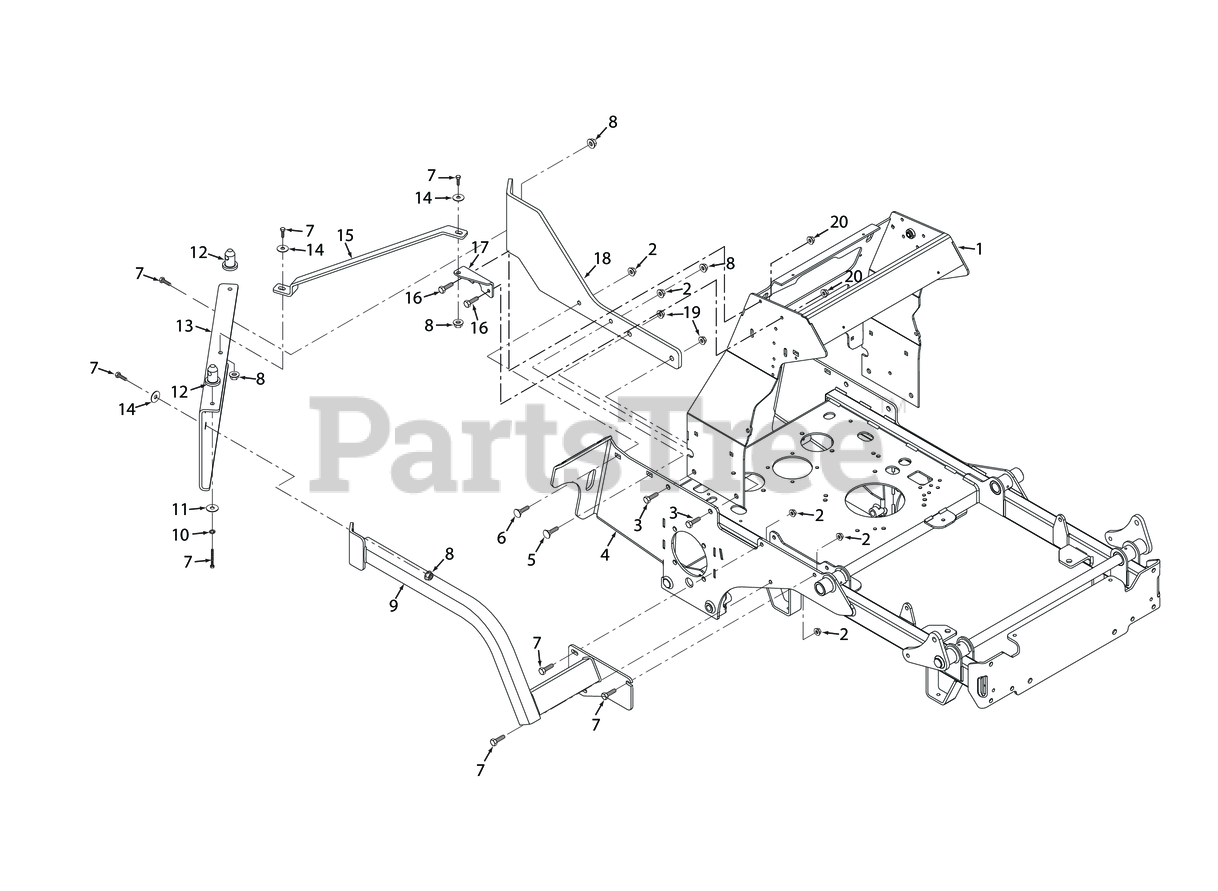

GC-VRII SUPPORT FRAME COMPONENTS Parts Diagram

  • Title

1

Scag 452832

Handlebar Weldment, SVRII

$365.99

$

Usually ships in 2-12 days

0

2

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

3

Scag 04017-39

Serr. Fl. Hex Head CPSCR, 1/2-13 x 2.00"

$3.49

$

Usually ships in 2-12 days

0

4

Scag 452804

Mainframe Weldment, SVRII

$

$

Currently unavailable

5

Scag 04003-03

SHORT SQUARE NECK CARRIAGE BOLT, 3/8-16 X 2"

$1.49

$

In Stock, Qty 5

0

6

Scag 04003-22

Carriage Bolt, 3/8-16 x 1-1/4"

$1.99

$

In Stock, Qty 7

0

7

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

8

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 452995

Bracket Weldment, GC Mounting

$166.99

$

Usually ships in 2-12 days

0

10

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 8

0

11

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, only 4 left!

0

12

Scag 43884

Pin, GC Locator

$30.99

$

Usually ships in 2-12 days

0

13

Scag 427790

Bag Support Plate

$77.99

$

Usually ships in 2-12 days

0

14

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

15

Scag 427791

Upper Support Bracket

$24.99

$

Usually ships in 2-12 days

0

16

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

17

Scag 427792

Mounting Bracket, Upper

$7.99

$

Usually ships in 2-12 days

0

18

Scag 427806

GC Mounting Bracket, LH

$110.99

$

Usually ships in 2-12 days

0

19

Scag 04019-06

Nut, Hex Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

20

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0
